Product details
-
Excellent sound performance: Low ground noise, built-in output protect the circuit, no buzzing or ringing noise, Audiophile-level sound quality, exclusively designed for the customers who pursue HiFi sound; and safe for your expensive headphones.
-

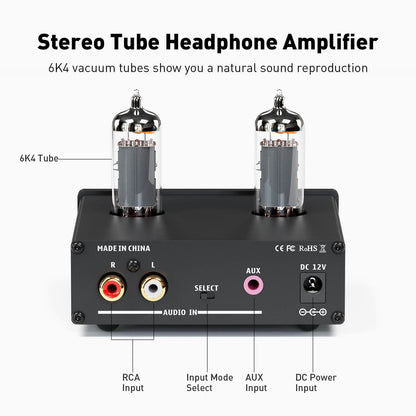

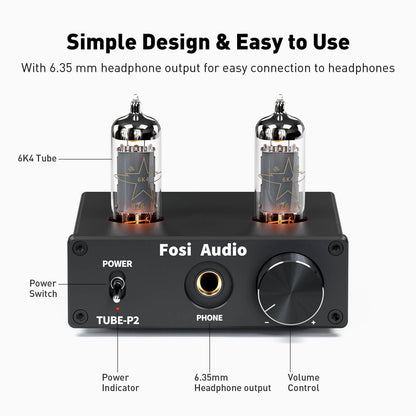

Stereo and Preamplify: Headphones amp also can be used as a stereo preamp, Parallel 3.5mm and RCA stereo inputs, 6.35mm headphone output, include a 6.35mm to 3.5mm adapter;
-

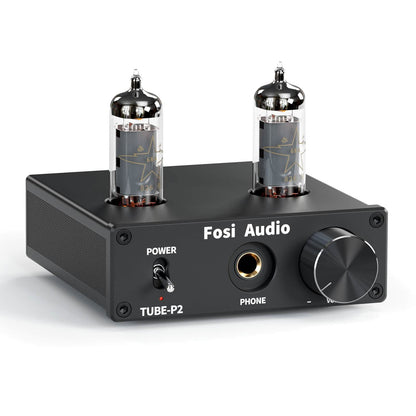

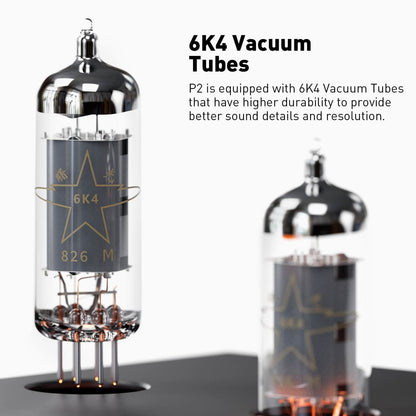

High-performance: P2 is a Hi-Fi tube headphone amp, 2 X 6K4 J-Grade tubes can easily power high-performance headphones including the HD580, HD600, HD650, K701, K702, Q701, and many more, recommend 32-300ohm headphones
-
Easy replace tube: Tubes can be replaced by JAN 5654W/6j1/6J4/GE5654/6AK5/6*1n/ E180F/6ж9П/EF861/6688 tubes etc
-
Exquisite appearance: Small Compact Size, All aluminum alloy shell and come with an 18-month manufacturer's warranty.
Specifications
| Specifications | Details |
|---|---|
| Model | P2 |
| OP-Amp | NE5532 |
| Headphones Output | 16-64Ohm |
| Headphone Impedance | 32-600 Ω |
| Input Mode | 3.5mm Audio jack, Stereo L / R RCA |
| Frequency Range | 20Hz-20 kHz (± 3dB) |
| THD | ≤0, 03% |
| SNR | ≥ 95db |
| Input Sensitivity | 0.2mV |
| Device Dimension | L99 * W98 * H33 mm |
| Device Weight | 0.25 kg |
| Operating Voltage | DC12V |
What‘s in the box？
| Item | Quantity |
|---|---|
| P2 Headphone Amplifier | x 1 |
| 6J4 Vacuum Tubes | x 2 |
| DC 12V Power Supply | x 1 |
| 6.35mm to 3.5mm Adapter | x 1 |
| User’s Manual | x 1 |
Compare with similar items:
P1 Pro Bluetooth 5.0 Tube Preamplifier
P1 Vacuum Tube Pre-Amplifier
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
- Using a more powerful power supply can help prevent distortion.
- Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
