Product details
-

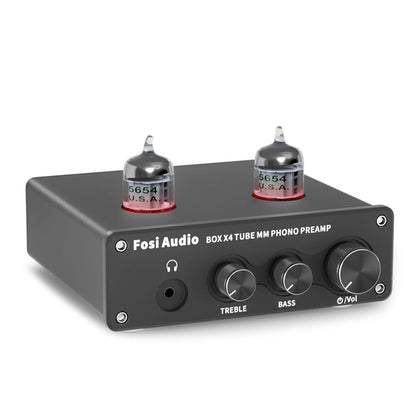

2021 NEW MODEL: The updated version for BOX X2. Next-generation phono preamp for unrivaled sound quality.
-

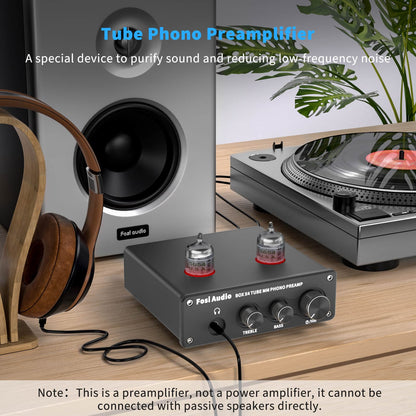

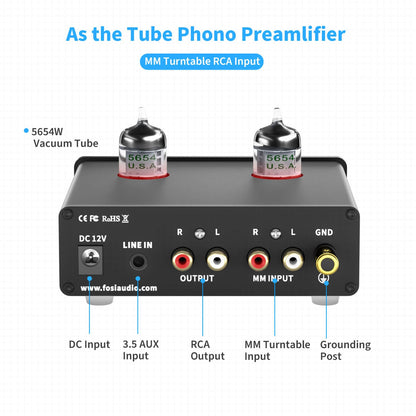

JAN 5654W Tube MM Phono Preamplifier: The BOX X4 phono preamp supports 3.5MM AUX and MM turntable input, converting phono signals to Line Level signals with low-noise integrated circuits and high-quality components to remove low-frequency noise ensure clear sound quality. Designed with a grounding post to protect your turntable.
-
Tube Headphone Amplifier & Preamplifier: The BOX X4 is designed with a 3.5MM AUX headphone and RCA output, highly useful beyond imagination.
-
Applicable Vacuum Tube Model: 5654W/6K4/6J1/6J4/GE5654/6AK5/66*In vacuum tubes, etc. You can replace the vacuum tubes to DIY your stereo system. Different tubes with different sounds.
-
What You Get: BOX X4 phono preamp, DC 12V power supply, user manual, our worry-free 24-month warranty, and friendly customer service.
Specifications
| Specifications | Details |
|---|---|
| Model | BOX X4 |
| Applicable headphone types | 16 Ω |
| Input Mode | MM turntable + 3.5mm AUX |
| Output Mode | RCA + 3.5mm headphone output |
| Output | Active(powered) speakers, Amplifier, Headphones |
| Frequency Response | Standard RIAA |
| THD | ≤ 0.1% |
| SNR | ≥ 70dB |
| Device Dimension | 4.72 x 3.97 x 1.37 inches |
| DC Input Range | 12V |
| Input Voltage Range | AC 110V - 240V |
| Output Voltage Level | 1kHz and 650mV |
| Power Supply | 12V 1.5A |

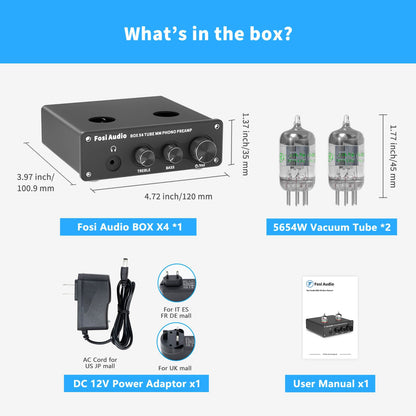

What‘s in the box？
| Item | Quantity |
|---|---|
| BOX X4 phono preamp | x 1 |
| Vacuum Tubes | x 2 |
| DC 12V power supply | x 1 |
| User's Manual | x 1 |
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
- Using a more powerful power supply can help prevent distortion.
- Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
