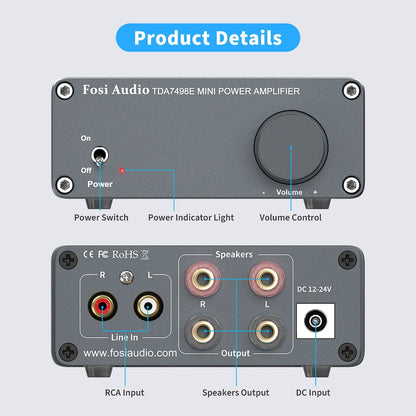

Product details

  • Adopt ST Micro TDA7498E chip to get clear audio sound, No pop, no audible noise, dead silent when nothing is playing through it.

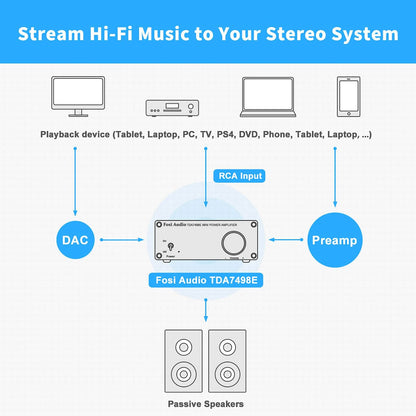

  • 160W X 2(4 ohms, 20 Hz - 20 kHz, 0.04% THD), for outdoor/ bookshelf/ computer/ desktop /ceiling /floor standing speakers, can use iPod, Phone, MP3 players, TV, Echo Dot, CD players, or Streaming Media players as input.

  • 2.0CH audio integrated amplifier, aluminum enclosed, small size, good looks, simple functionality, and excellent sound quality;

  • Home small Hi-Fi amp, Exclusively designed for the customers who pursue HiFi sound;

  • You can return the item if you have any problems, 18-month warranty, feel free to contact us at shopify@fosiaudio.com;

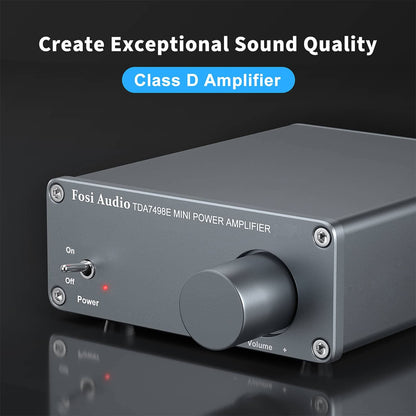

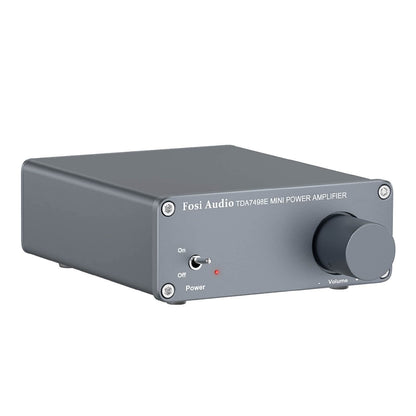

Fosi Audio TDA7498E 2 Channel Stereo Audio Amplifier Receiver Mini Hi-Fi Class D Integrated Amp for Home Speakers 160W x 2
TDA7498E NEW MODEL



Specifications

Specifications Details
Model TDA7498E
Output Power 160W + 160W
Terminating Impedance 2Ω-8Ω
Input Mode Analog
Output Mode Passive Speakers
Frequency Range 20Hz - 20kHz (±1 dB)
THD ≤ 0.04%
SNR ≥ 98dB
Input Sensitivity ≤ 280mV
Device Dimension 4.13 x 3.54 x 1.38 inches
DC Input Range 12-24V
Power Supply 24V 4.5A

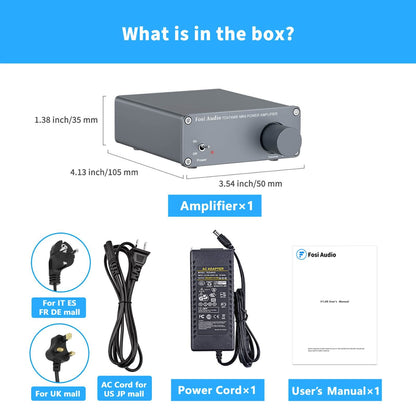

What‘s in the box?

Item Quantity
Fosi Audio TDA7498E Amplifier x 1
AC power cord x 1
24V 4.5A Power Adapter x 1
User’s Manual x 1

FAQs

Please read our FAQs page to find out more.

How to: Choose the right banana plug?
  • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
  • Easy to wire up and solidly connect to amplifier and passive speaker.
  • If they do not fit, use a little force to tighten the plugs.
  • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
  • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
  • The following situations may cause this issue
  • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
  • Possible solution
  • Check if the power supply is illuminated when plugged into AC by itself.

    Plug power supply into a different socket.

    Test the adapter with a meter.

    Try a different power supply (within a range of DC input).

    Test the included power supply on other electrical equipment.

    Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
  • Using a more powerful power supply can help prevent distortion.
  • Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
  • The GaN supply has a power output of 240W.
  • Offers overload and over-temperature protection.
  • The 48V 5A GaN power supply is also available on Amazon.

Didn’t find your answer?

Don't hestitate to contact us
