Fosi Audio ZH3 DAC Headphone Amp
Features
- All-in-One Desktop Hi-Fi
- Dual-Power Balanced Amp
- 3-Level Gain
- Bass/Treble EQ + 6 Filters
Z Series Bundle & Save 20%
Desktop HiFi Solution Bundle & Save 20%
Fast, Free Shipping
24 Months Warranty
30-Day Money-Back Guarantee
Lifetime Customer Support
Fosi Audio ZH3 DAC Headphone Amp
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We offer free worldwide shipping, except for certain regions such as Ukraine and Russia, where our services are currently unavailable.
-
Customer Support
WhatsApp: +8613716612254
support@fosiaudio.com
Mon-Fri: 3:00 AM - 3:00 PM PST -
FAQ’s
If you have any questions, please refer here: FAQs
Review Videos
Comprehensive Desktop HiFi Solution
With comprehensive input and output options, the ZH3 functions as a DAC, headphone amplifier, and preamp, which can be connected to IEMs, over-ear headphones, active speakers, and amplifiers. Featuring UAC 1.0 and 2.0, it is also compatible with gaming consoles, ensuring seamless connectivity across multiple desktop devices.
- Chipset: XMOS XU316+AKM4493SEQ+ OPA1612 x 4
- Input: Coaxial/Optical/USB/RCA
- Output: 4.4mm/6.35mm/RCA/XLR
- SINAD ≥ 115dB; SNR ≥ 121dB; THD+N ≤ 0.00018%; Noise Floor ≤ 1.9μV
Product details
Description
- An all-in-one desktop HiFi DAC/headphone amp/preamp: With premium chipsets and self-developed fully balanced circuitry, low noise and low distortion. Perfect for HiFi headphones or active speakers, it's the ultimate desktop audio solution.
- Exceptional Sound Quality: Premium chipset with AKM4493SEQ DAC, XMOS XU316 processor, and four OPA1612 amps supports up to PCM 768kHz/32bit & DSD512. A self-developed dual-power balanced amp circuit with multiple ultra-low-noise LDOs and capacitors keeps noise as low as 1.9μV.
- High Output Power: Equipped with both 6.35mm single-ended (640mW@32Ω x2) and 4.4mm balanced (2570mW@32Ω x2) outputs. The 3-level gain switch supports headphones ranging from 16Ω to 300Ω, making it perfect for almost in-ears and over-ear headphones.
- Versatile & Flexible: With coaxial, optical, USB, and RCA inputs, plus 4.4mm, 6.35mm, RCA, and XLR outputs, it connects to diverse audio sources and devices. Functions as a DAC/amp/preamp for desktop HiFi. UAC mode switching ensures full compatibility with game consoles for both music and gaming.
- Rich Customization: Features bass/treble EQ adjustments and 6 filter types, including Bypass mode and two swappable op-amps, allowing you to customize the sound to match your preference. All functions are integrated into the screen for a clean, premium look that continues the Z-Series design language.
What‘s in the box？
- Fosi Audio ZH3 x 1
- 6.35mm Adapter x 1
- 12V Trigger Cable x 1
- IR Remote x 1
- User Manual x 1
- USB-A/C to USB-C Cable x 1
- DC 12V Power Adapter x1
FAQs
Please read our FAQs page to find out more.
When do I need to install a driver for ZH3 on Windows?
If your PC is running Windows 7 or earlier. (Note: Windows 7 is no longer updated and may have compatibility issues. Using ZH3 with Windows 7 is not recommended.); To play DSD tracks. (Note: If you use Foobar with the built-in WASAPI plugin for DSD playback, no driver is needed.); To play PCM 768kHz tracks.
USB not recognized?
Faulty or loose USB connection—try a different USB cable; Computer malfunction—try connecting to another computer; Malfunctioning USB port—try another USB port; ZH3 is not set to USB input mode; Driver conflict—go to "Device Manager," find "Audio Inputs and Outputs," uninstall the ZH3 driver, reinstall it, reboot your computer, then reconnect the ZH3 via USB.
If a submenu item appears grayed out, it means the function is not available in the current input/output mode.
USB Input--R/X or LO output: EQ, Bypass, and Gain adjustment not supported; Optical/Coaxial Input--PO output: UAC switching not supported; Optical/Coaxial Input--R/X or LO output: EQ, Bypass, Gain, and UAC switching not supported; RCA Input--PO output: UAC switching and Filter not supported; RCA Input--R/X or LO output: Only input and output selection available.
Can I replace the op-amps in the ZH3?
The ZH3 supports the replacement of two op-amp chips. It utilises easily replaceable DIP8 dual-channel discrete op-amps, catering to your pursuit of a personalised audio experience. Compatible models include the LME49720, NE5532, MUSES02, SS3602, and others. For detailed video tutorials, please consult customer service.
Customer Reviews
Sound is great with AKM DAC chip.
I was planning to use it as a combined DAC/ preamp with the possibility to have bass and treble control. As you all know different recordings needs sometimes to be adjusted in bass and treble. Unfortunately you can not use bass and treble control when in rca out mode. I could send it back and get a refund. The Fosi support is very friendly.

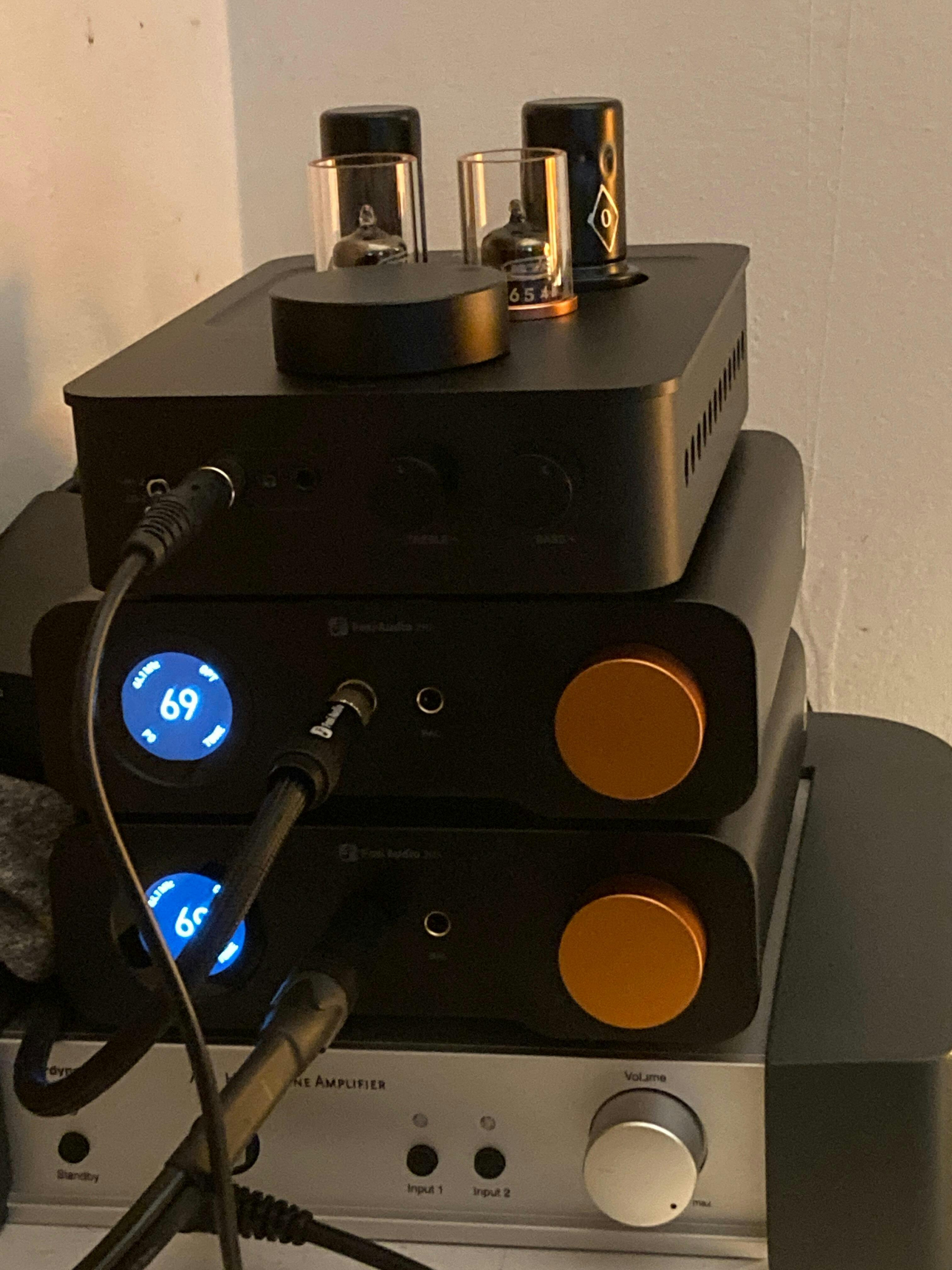

I have the Fosi ZH3 connected to my P4 pre-amp and I'm very impressed with the high sound quality this pair produces on my headphones. The ZH3 delivers enough power to drive the FiiO FT3 headphones @ 350 ohms, the volume it reaches is more than enough for music enjoyment. I upgraded the stock OP amps to the Muses02, since the specs on the Muses are better than most stock OP amps. The tone control is always a feature that I'm up for and I appreciate Fosi for including tone controls on a lot of its products. I don't use the ZH3 as a DAC since I have quite a few portable DAC/Amps and I like changing the DAC source to try different sound flavors. With the ZH3, Fosi Audio has delivered another fantastic and budget friendly product. Cheers!
It’s a decent unit that performs as expected in my fosi stack. The DAC sounds about as well as the one on my WiiM and the filters don’t really change the music much. The headphone amp is better than average.
Sounds so good
Justgot it ！Very easy to use, and easy to operate.
Sounds great with my i5
