Embracethe Vintage Charm of Vinyl with Modern Precision

Supporting MM/MC cartridges, BOX X5 is compatible with most turntables, along with 4 adjustable gain levels of 38/48/56/66 dB. It utilizes high-precision capacitors and resistors, ensuring minimal noise for audio purity. Intuitive RCA terminals achieve a plug-and-play experience.

  • Input: MM/MC RCA; Output: RCASNR≥92dB; THD≤0.009%
  • Frequency Response: 20Hz-20kHz(±0.015dB)

Product details

Description

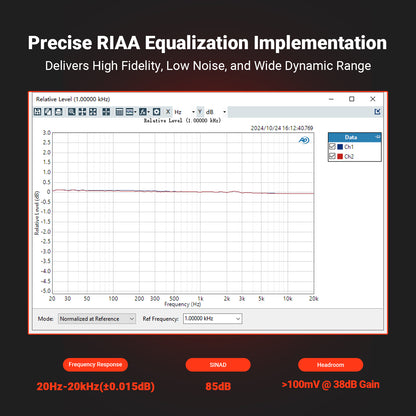

  • High Performance: The BOX X5 phono preamp is compatible with both MM and MC cartridges, featuring 4 gain settings and an excellent precise RIAA equalization to provide a clean, direct pass-through of a signal when paired with your turntable

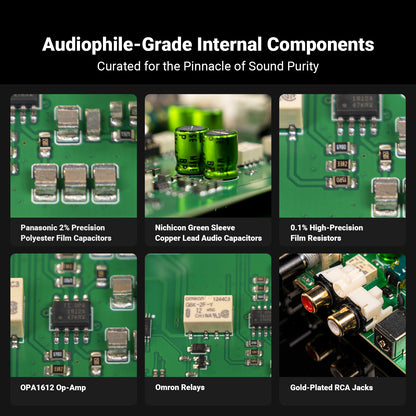

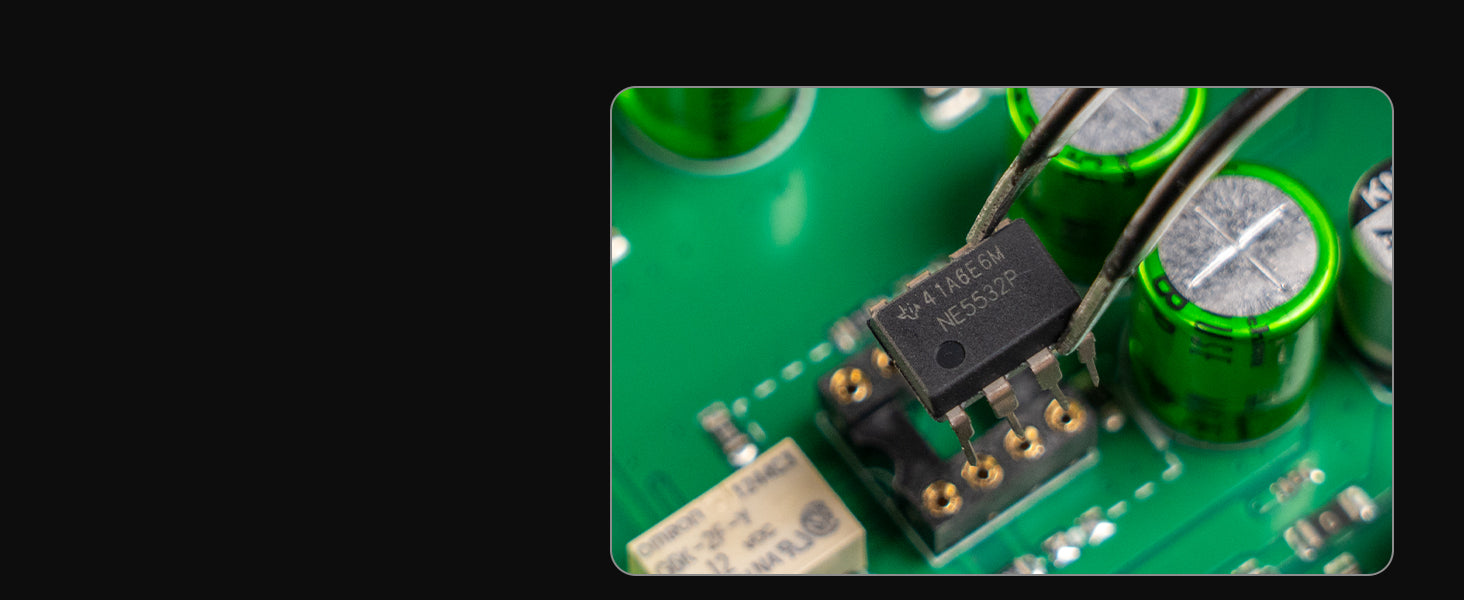

  • Audiophile-Grade Components: This preamp utilizes a variety of materials such as 2% Precision Polyester Film Capacitors, Green Sleeve Copper Lead Audio Capacitors, 0.1% High-Precision Film Resistors, OPA1612 Op-Amp, Gold-Plated RCA Jacks, and more. It picks up subtle and finite detail produced from it and delivers a truly warm and inviting sound

  • Multiple Gain Settings: With 4-Level gain adjustment Asettings of 38/48/56/66dB, the preamplifier accommodates both MM & MC cartridge types, meeting a variety of needs. This enhances your phono stage and helps in rebuilding the vintage stereo sound

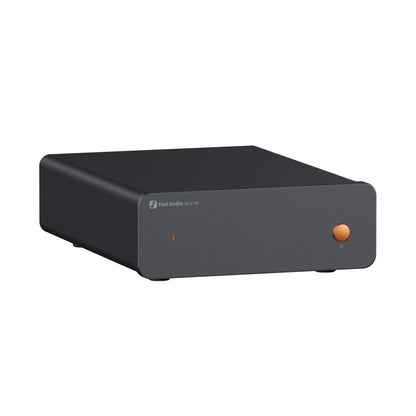

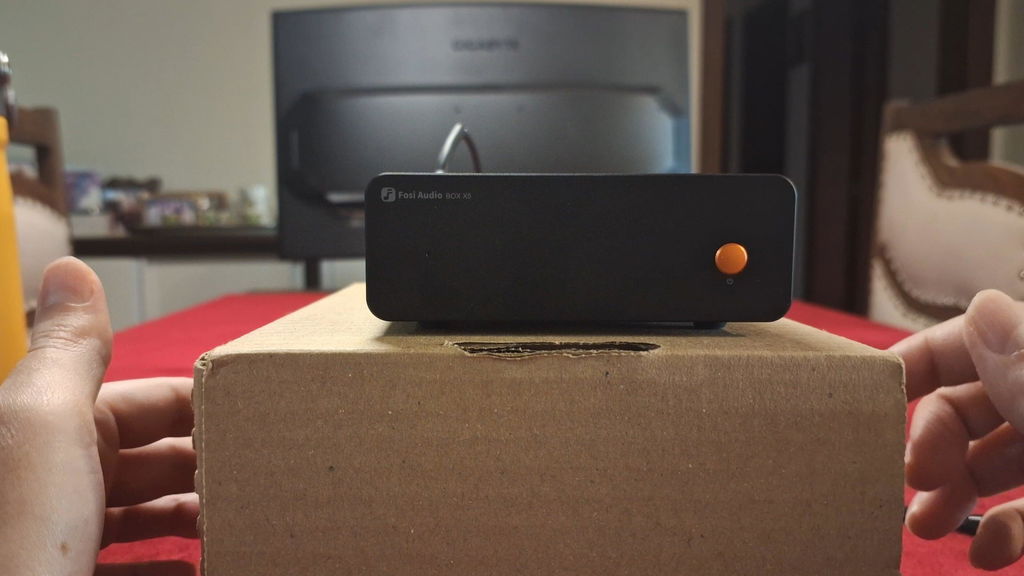

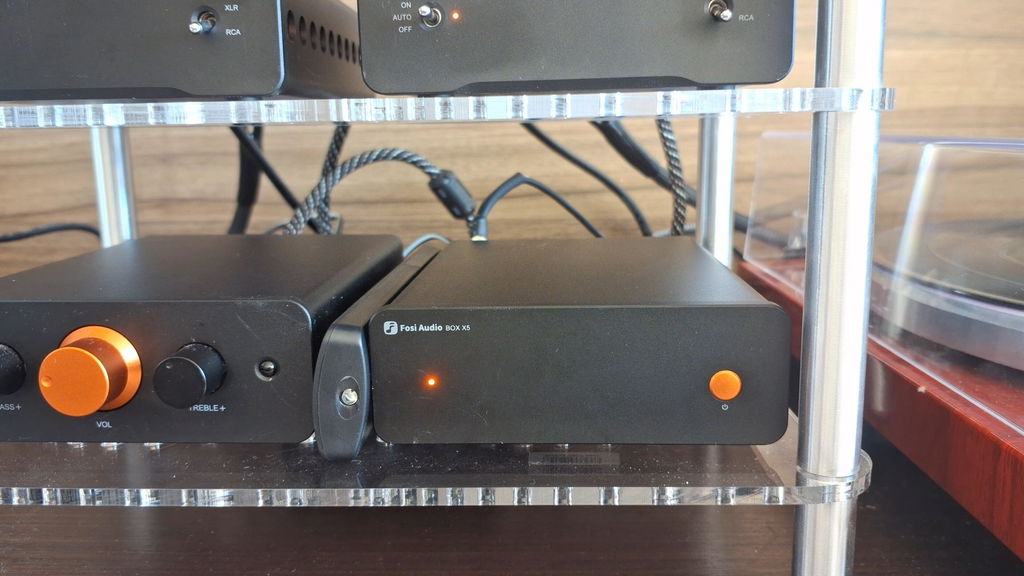

  • Mini and Exquisite: It's built around a minimalist yet functional design featuring an all-aluminum alloy chassis. When paired with the V3 stereo amplifier, the BOX X5 can bring out the best in your vinyl playback, enhancing its frequency response and dynamic performance

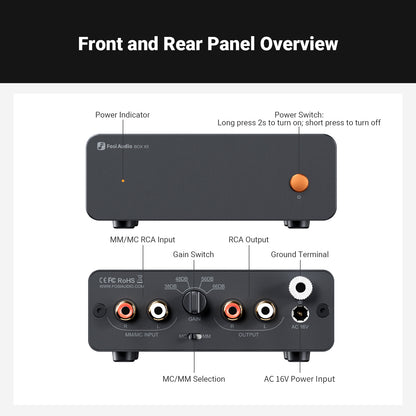

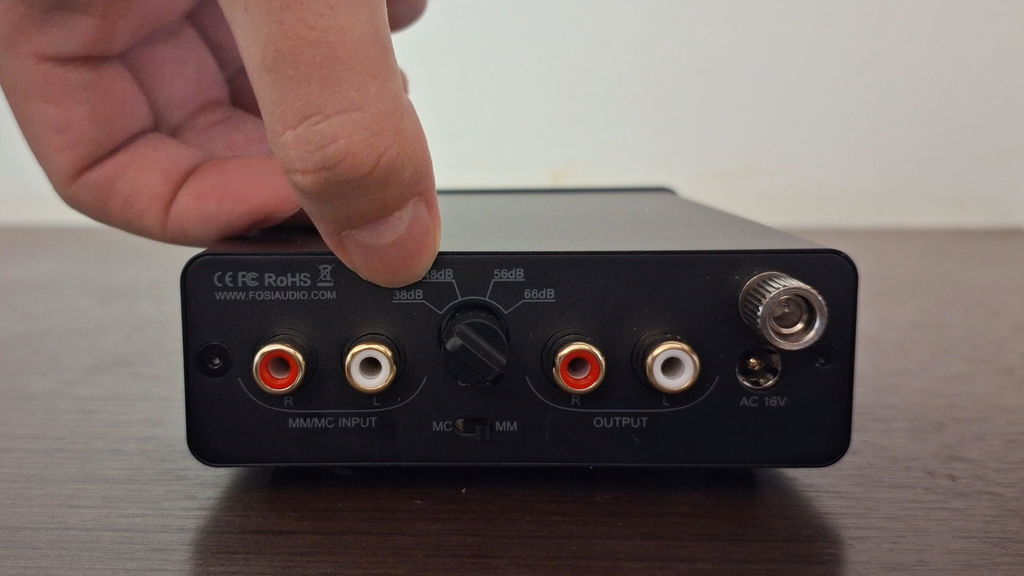

  • User Friendly Design: It has an easy-to-use one-touch power button, gain control, and a convenient toggle switch to switch between MC and MM cartridges. In addition, the grounding port ensures that the connection is secure
Specifications
  • Input Mode: MM+MC RCA
  • Output Mode: RCA
  • THD: ≤0.009%
  • SNR: ≥ 92dB
  • Device Dimension: 4.1 x 6.5 x 1.4 inches
  • Power Supply: 16V/1A

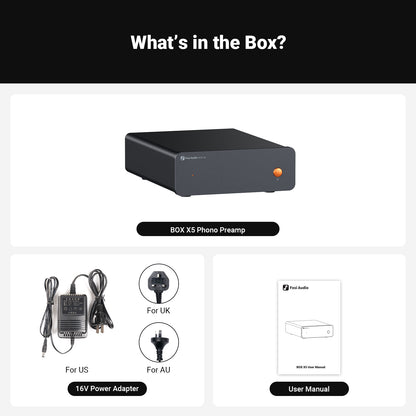

What‘s in the box?
  • BОX X5 Phono Preamp x 1

  • 16V 1A Power Adapter x 1

Which Product is right for you?

Compare products to find the best one for your needs.

Products Fosi Audio BOX X1-MM Phono Preamp MM Turntable Preamplifier

BOX X1 MM Turntable Phono Preamp

Input
RCA
Output
Active Speakers + Headphone
Bass & Treble Control
No
SNR
≥ 70dB
THD+N
≤ 0.08%
Power Supply
12V/1.5A
Fosi Audio Box X2 Phono Preamp for Turntable Preamplifier HiFi MM Phonograph Preamplifier for Record Player - Fosi Audio

Box X2 MM Turntable Phono Preamp

Input
RCA+3.5mm
Output
Active Speakers
Bass & Treble Control
No
SNR
≥ 98dB
THD+N
≤ 0.1%
Power Supply
12V/1.5A
Fosi Audio Box X3 Bluetooth Phono Preamp for Turntable Phonograph Preamplifier With 5725 Vacuum Tube - Fosi Audio

Box X3 Bluetooth Tube Phono Preamp

Input
Bluetooth + AUx+ RCA
Output
Active speakers
Bass & Treble Control
Yes
SNR
≥ 70dB
THD+N
≤ 0.1%
Power Supply
12V/1.5A
Phono Preamp & Headphone Amplifier with JAN 5654W Vacuum Tubes for MM Turntable Phonograph Preamplifier for Record Player with Volume Bass Treble Control Hi-Fi Pre Amp Fosi Audio Box X4

Box X4 MM Turntable Phono Preamp

Input
RCA+3.5mm AUNo
Output
RCA+3.5mm AUNo
Bass & Treble Control
Yes
SNR
≥70dB
THD+N
≤ 0.1%
Power Supply
12V/1.5A

FAQs

Please read our FAQs page to find out more.

Is it mandatory to connect the turntable’s ground wire to the BOX X5’s ground terminal?

Grounding is recommended to avoid rattling during use.

Can the BOX X5 be used as a regular preamp?

The BOX X5 is a phono preamp with a higher amplification gain than a regular preamp, thus it is not suitable for use as a standard preamp.

How to power on and off to prevent any thumping sounds that could damage the equipment?

Power On: Turn on the turntable, then the BOX X5, followed by the amplifier.

Power Off: Turn off the amplifier, then the BOX X5, and finally the amplifier.

What power supply is used for the BOX X5?

The BOX X5 is powered by its supplied AC adapter, not a DC power supply. DC power supply filters cannot be used for AC power supply.
