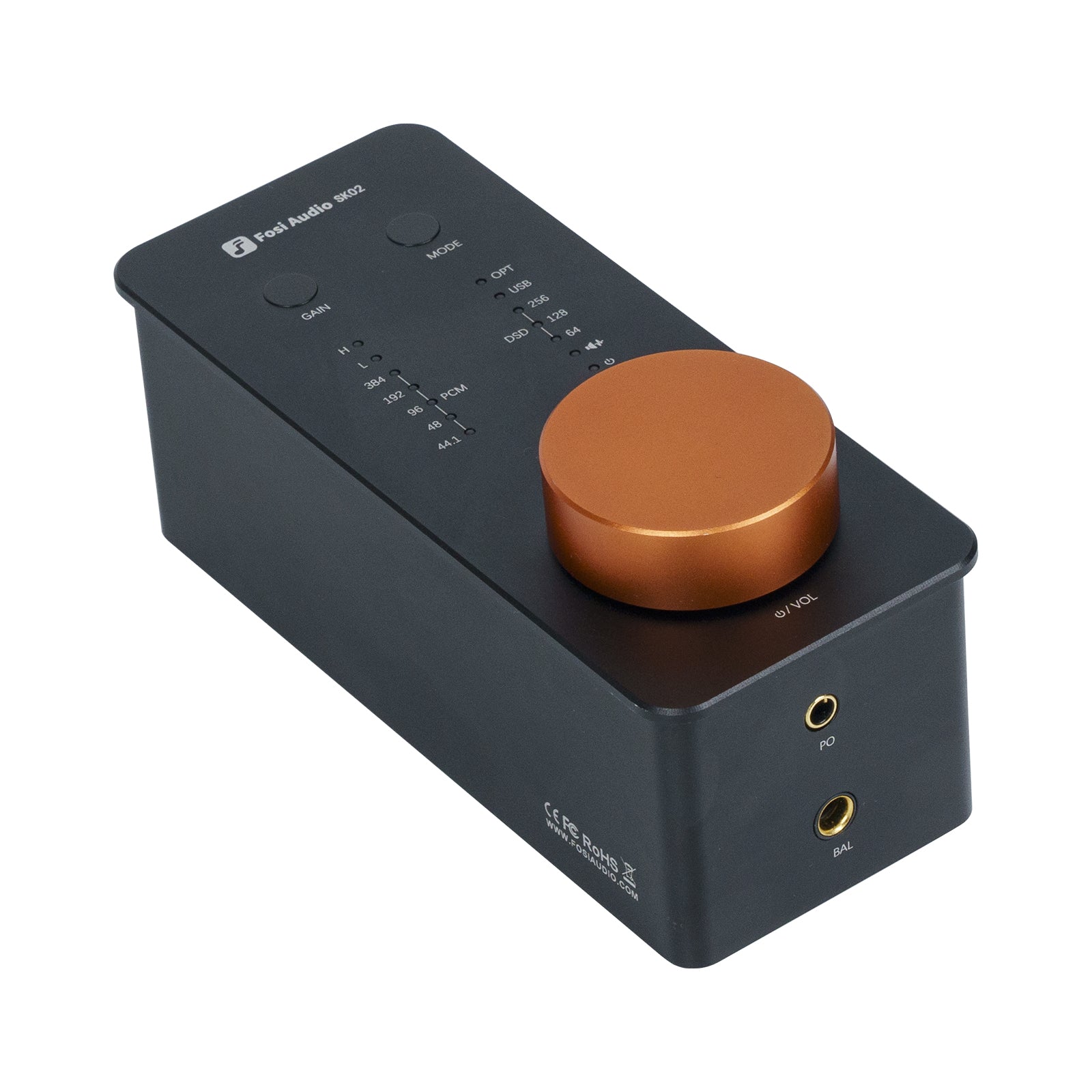

Fosi Audio SK02 Desktop DAC Headphone Amplifier
$99.99
Pairs well with
Fast, Free Shipping!
24 Months Warranty
30-Day Money-Back Guarantee
Lifetime Customer Support
Fosi Audio SK02 Desktop DAC Headphone Amplifier
Black
$99.99
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We offer free worldwide shipping, except for certain regions such as Ukraine and Russia, where our services are currently unavailable.
-
Customer Support
WhatsApp: +8613716612254
support@fosiaudio.com
Mon-Fri: 3:00 AM - 3:00 PM PST -
FAQ’s
If you have any questions, please refer here: FAQs
Product details
- Compact Yet Powerful: The SK02 employs a minimalist and stylish design language. Despite its small size, it boasts mighty features. It supports DSD256 and PCM 32bit/384kHz high-resolution decoding, along with 3.5mm single-ended and 4.4mm balanced headphone outputs. Its robust power can easily drive a wide range of headphones and IEMs with an impedance range of 16-300 ohms.
- Stunning Performance: It features a high-end ESS SABRE ES9038Q2M DAC and SGM8262 op-amps. Its excellent circuit design ensures superior parameters with a SNR as high as 120dB, a low noise floor of only 3.7μV, and an incredibly low THD of 0.001%. The 4.4mm balanced output power reaches an impressive 1100mW at 32 ohms. The exceptional high-resolution capability and pure sound quality make every listening experience an extraordinary sensory journey.
- User-Friendly Design: The SK02 requires no drivers and offers plug-and-play convenience. It integrates a big multi-functional control knob, allowing easy access to power on/off, play/pause, and volume adjustments. The unit features quick-switch buttons for high/low gain and input modes. Additionally, its colorful indicator lights enable effortless identification of the current working mode and the song's sampling rate.
- Remarkable Versatility: Supports USB and optical input, widely applicable for decoding with computers, laptops, CD players, TVs, and projectors. Not only can it function as a headphone amplifier, but it can also serve as a preamp, pairing with active speakers or an amplifier like Fosi Audio V3, ZA3, TB10D amp, and passive speakers to form a desktop listening or home audio system.
- Exquisite and Durable: The SK02 is crafted from a single piece of aluminum alloy using CNC machining and a delicate sandblasting process. This not only gives it an exquisite appearance but also ensures lasting durability. In addition, Fosi Audio pledges to provide a 24-month worry-free warranty and responsive customer service to all users.
| Specifications | Details |
|---|---|
| Model | SK02 |
| Input | USB/OPT |
| Output | 3.5mm Headphone,4.4mm Headphone,3.5MM line out/OPT |
| Amp output maximum power | 3.5MM： High Gain: 280mW@32Ω, 130mW@64Ω, 40mW@250Ω, 30mW@300Ω Low Gain: 90mW@32Ω, 50mW@64Ω, 15mW@250Ω, 10mW@300Ω 4.4MM： High Gain: 1100mW@32Ω, 550mW@64Ω, 150mW@250Ω, 120mW@300Ω Low Gain: 350mW@32Ω, 180mW@64Ω, 50mW@250Ω, 40mW@300Ω |
| Frequency Range | 20Hz-20kHz (±0.02dB) |
| THD | ≤0.001% @ 1kHz |
| SNR | 3.5mm Headphone: Low Gain:116dB High Gain:120dB 4.4mm Headphone: Low Gain:110dB High Gain:115dB |
| Headphone matching impedance | 16-300Ω |
| PC-USB Sampling Rate | 32Bit/384KHz DSD256 |
| OPT Sampling Rate | 24Bit/192KHz |
| DAC Chip | ES9038Q2M |
| Device Dimension | 4.76*2*1.69inch (121*51*43mm) |
| Net Weight | 0.84lb/380g |
| Power Supply | 5V, USB Type-C |
What‘s in the box？
Item Quantity Fosi Audio Sk02 Headphone Amp x 1,
2-in-1 USB-A/C to C Cable x 1,
User’s Manual x 1
SK02 User Manual
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
- Using a more powerful power supply can help prevent distortion.
- Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
