Built on User Voices

The ZP3 Balanced Preamp was developed in response to user demand for a preamplifier with multiple audio inputs.

  • Input: RCA x2 and XLR
  • Output: RCA, XLR, SUB
  • SNR≥ 115dB; SINAD≥113dB; Crosstalk≤ -130dB
  • Input Voltage Range: AC 110-240V

Product details

Description
  • Home Audio Control Hub: Features 3-in-3-out options for connecting up to three audio sources. Includes a remote control for one-touch input switching and volume adjustment—making it easy to manage your home audio system with freedom

  • Versatile Connectivity: Equipped with RCA1/RCA2/XLR inputs and RCA/XLR/Sub-Out outputs, the ZP3 integrates multiple devices with ease. Supports balanced XLR in/out for cleaner sound, plus RCA/XLR signal conversion for maximum compatibility
  • Audiophile-Grade Components: Built with premium parts including ELNA capacitors,  NJR NJU72315 volume IC, and gold-plated RCA jacks. These components reduce noise and distortion, delivering exceptional clarity and high-fidelity performance

  • Adjustable High-Pass Filter: Three-level HPF settings filter low-frequency signals from the RCA/XLR outputs, sending only mids and highs to main speakers while routing bass through the SUB-OUT—enhancing clarity, detail, and overall sound balance

  • Flexible Sound Customization: Includes bass/treble control with bypass function, and L/R balance knobs for personalized adjustment. Volume memory remembers settings for each input source—giving you a smarter, more convenient audio experience tailored to your taste
Specifications

Channel: 2.0
Input: RCA x2, XLR
Output: RCA, XLR, SUB
Bass and Treble Control Range: Treble: ±6dB,Bass: ±12dB
Frequency Response
XLR/RCA:
20Hz-20kHz (±0.2dB)
80Hz-20kHz (±0.2dB)
120Hz-20kHz (±0.2dB)
SUB: 20Hz-200Hz (±0.2dB)
Input Voltage Range: AC 110-240V

Balanced Output (XLR)
SNR: ≥ 112 dB
Dynamic Range: ≥ 112 dB
THD+N: ≤ 0.0007%
Noise Floor: ≤ 6μV

Single-Ended Output (RCA)
SNR: ≥ 115 dB
Dynamic Range: ≥ 115 dB
THD+N: ≤ 0.0008%
Noise Floor: ≤ 4μV

What‘s in the box?
  • Fosi Audio ZP3 x 1
  • IR Remote Control x 1
  • AC 110-240V Power Cord x 1
  • 12V Trigger Cable x 1
  • User Manual x 1

FAQs

Please read our FAQs page to find out more.

One channel is louder than the other?

Make sure the balance knob is centered on the ZP3 and the input signal is balanced between the two channels.

What is the function of the Bypass switch?

It toggles tone control on/off. Slide up to bypass bass/treble; slide down to enable them. It doesn’t affect volume.

Can I switch between RCA and XLR output?

No. RCA and XLR outputs work at the same time and cannot be switched independently.

What is the function of the HPF adjustment?

It filters low frequencies, letting highs pass. The ZP3 offers 3 cutoff settings for different output frequency ranges.

Why is there no bass or the bass sounds weak?

Check if the HPF switch on the bottom is set to 20Hz–20kHz to avoid filtering out low frequencies. Also check if the bass knob is set too low.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
O
Outof Into
An astonishingly capable preamp for the money.

To be honest I didn't need to buy the Fosi ZP3 analogue preamplifier. I am pretty happy with my ( 5 times more expensive) Audiolab cdq8300 cd/dac/analogue/headphone amp combination driving my 4 x Fosi Audio V3 monoblock power amps.
However, my curiosity about such a low cost preamp with a balanced input & output plus with tone controls/ a balance control/a subwoofer output and a remotel controller got the better of me. Therefore, I took the plunge and bought it.
Too say I was astonished by its performance is an accurate statement. Its sound quality was very clear and revealing, with a authorative bass, a nuanced midrange and tidy and clean treble. Wide ranging dynamics were effortlessly rendered with no compression or adverse tonal changes. It was especially capable via its balanced input & output, which was demonstrated when I connectedy Ifi Zen phono preamp pentacon 4.4 mm out to it adding a more potent bass and overall more dynamic sound.
In comparison to my Audiolab, it was just as capable of resolving fine details, just as transparent and with the same wide ranging dynamics.
Needless to say it complimented my V3 monoblocks perfectly.
One minor complaint of its volume control I found is it doesn't always remember its last setting as advertised. It immediately outputted its maximum volume powering up on one occasion.
Nevertheless, that minor gripe aside, Fosi Audio has once again produced another exceptionally capable audio product for the money which can sonically challenge much more expensive & lauded preamps that are currently available.

S
Stretoo
The coherent and qualitative complement to the "Z" range

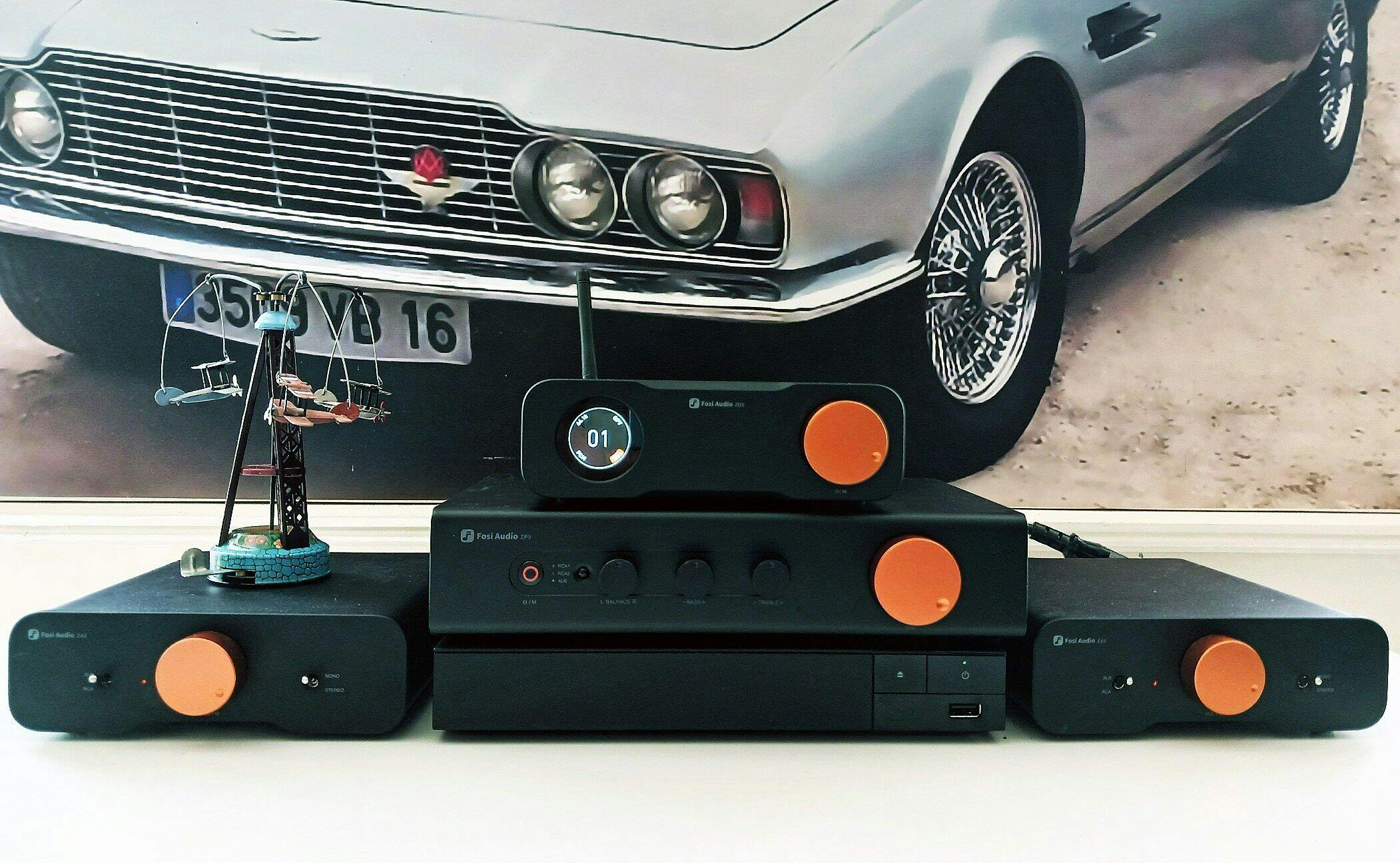

I connected my ZD3 DAC and my two ZA3 amplifiers used in mono mode to my new ZP3 (all connections through XLR). My ZD3 DAC is "boosted" by two Sparkos SS3602 OP Amps on the XLR outputs. In this combination of Fosi Audio devices, my test CDs (Eliane Elias "Paulistina" and The Bad Plus "These Are the Vistas") highlighted all the sound qualities that this coherent and efficient system could produce, the CD player being connected to the ZD3 DAC via the coaxial input. The sound result is quite convincing on my Bower & Wilkins DM640 speakers, with the HPF (High Pass Filter under the ZP3 preamp) switch set to 20Hz to 20,000Hz. It's like listening to these CDs for the first time, even though I know them so well. There's a real synergy in this assembly of the “Z” range, which is a credit to the excellent Fosi Audio design team.

We live in a wonderful era where we can listen to music in very high fidelity without breaking the bank thanks to Fosi Audio. The equipment is well-made, and the Fosi Audio support team always goes above and beyond to satisfy its customers with expertise and friendliness, which is rather rare these days. At the total price of the above equipment, you can really indulge in the essential speaker selection while being able to extend your budget. Never skimp on speakers!
Just two minor reservations: 1) it lacks a jack socket for headphones; 2) the mini-jack cable usually included to power the "trigger" connection could do with being a little longer to allow more flexibility in installing the equipment.
