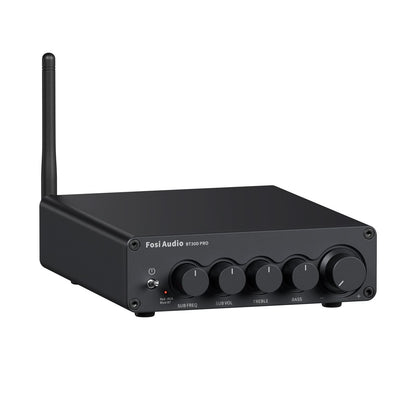

Redefining HiFi with Unmatched Value

This 2.1CH mini Bluetooth amp is praised by customers for its appearance, value, and sound quality. They note its impressive presentation, ability to drive speakers and add depth to the soundscape. It can power two speakers and a subwoofer, making home audio setup easy.

  • THD: ≤ 0.03%; SNR: ≥ 108dB; Frequency Range: 20Hz - 20kHz (±1 dB)

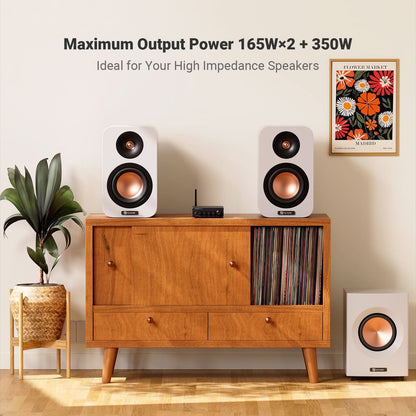

  • MAX Power Output: 165W×2+350W; Input: Bluetooth + RCA; Input Sensitivity: ≤ 600mV
  • Output: Passive/Active Speakers+ Passive/Active Subwoofer

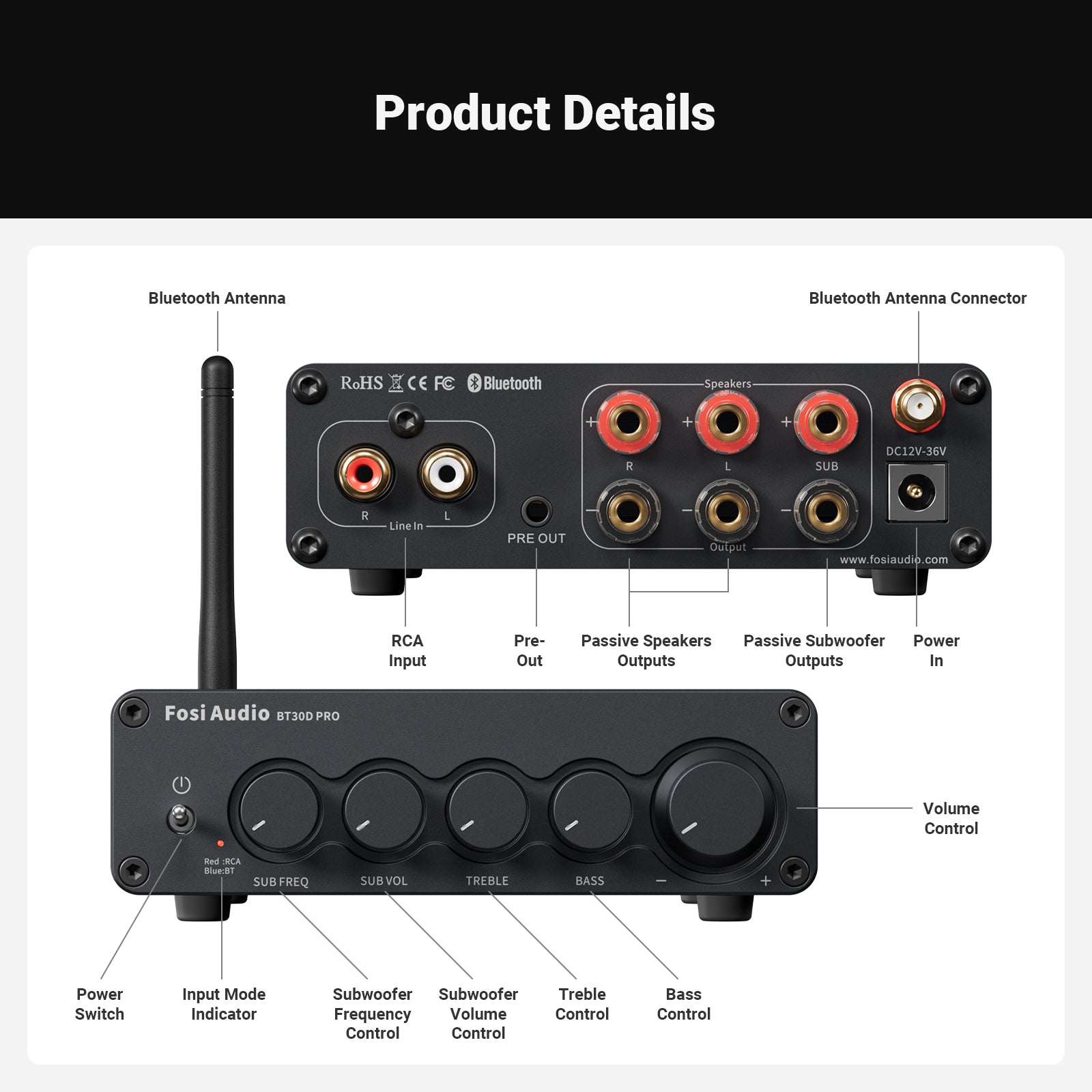

Knobs designed for subwoofer

The SUB FREQ knob allows frequency adjustment of passive subwoofers from 0 to 300 Hz, and the SUB VOL knob sets their volume.

Pre-Out Connector

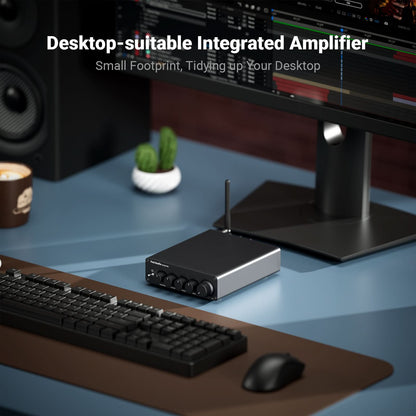

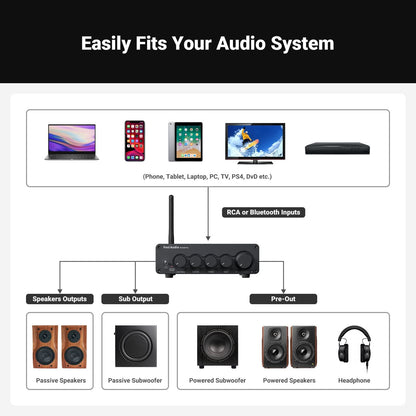

Build a home stereo system on your desktop by connecting a powered speaker, subwoofer, or amplifier to the BT30D Pro through the 3.5mm PRE output for a compact audio receiver setup.

Product details

Description

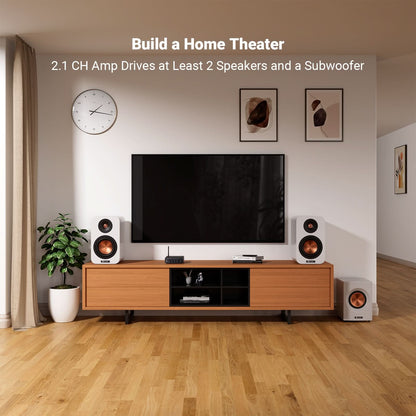

  • 2.1 Channel Amplifier:The BT30D PRO integrated amplifier features two sets of passive speaker outputs and one set of passive subwoofer outputs, making it easy to set up a 2.1 home theater or other stereo HiFi audio systems.
    High Power with Exceptional Sound Quality:Equipped with two high-end Texas Instruments TPA3255 Class-D amplifier chips, the amplifier home audio delivers clear and pure sound without distortion or clipping, stably outputting up to 165W x 2 + 350W of power.

  • Bass Beast: Whether you're a gamer, movie buff, or music lover, the subwoofer amplifier provides tight, smooth, and natural - sounding bass. It features two dedicated knobs for subwoofer control: the SUB FREQ knob allows precise frequency adjustment of passive subwoofers from 0 to 300 Hz, while the SUB VOL knob lets you set the desired volume level. This gives you full control over the bass output to suit your personal preferences and listening environment.

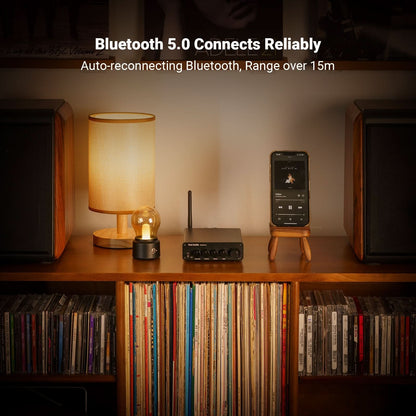

  • Bluetooth 5.0 Connectivity: It maintains a stable connection and delivers clear audio over a range of up to 15 meters. This makes it perfect for enjoying your favorite tunes or audio content in outdoor areas such as your yard, terrace, or poolside, without worrying about signal drop-outs or interruptions.

  • Exquisite Craftsmanship:This mini amplifier is meticulously crafted with a solid, all - metal body that ensures durability and longevity. The well-designed case, along with the high-quality controls and connectors, exudes a sense of premium build and attention to detail. The exquisite packaging further adds to the overall appeal and value of the bass amp.
Specifications
  • Chip Set: Texas Instruments TPA3255
  • Output Power:
    With 48V/5A PSU Stereo; 155Wx2 @4Ω; Mono: 235Wx1 @4Ω
    With 32V/5A PSU Stereo; 95Wx2 @4Ω; Mono: 110Wx1 @4Ω
  • Terminating Impedance: 2-8Ω
  • Input Mode: RCA, XLR, 1/4" TRS
  • Output Mode: Speaker Output (supports banana plug or bare wire connection), Active Subwoofer Output
  • Frequency Range: 20Hz - 20KHz(±0.1dB)
  • SINAD: 89dB
  • THD: <0.006%
  • SNR: ≥106dB
  • Dynamic Range: ≥106dB
  • Device Dimension: 15.49 x 18.39 x 5.08 cm; 1.78 Kilograms
  • DC Input Range: 24-48V
  • Power Supply: 32V/5A, 48V/5A

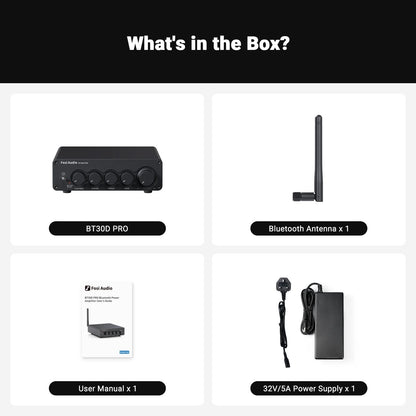

What‘s in the box?
  • BT30D PRO Power Amplifier x 1

Which Product is right for you?

Compare products to find the best one for your needs.

Fosi Audio BT30D PRO 165Wx2 +350W TPA3255 2.1 CH Bluetooth 5.0 Power Amplifier for Speaker Subwoofer - Fosi Audio

Fosi Audio BT30D Pro 2.1 Channel Bluetooth Amp

Type
Bluetooth 2.1 Ch Amp
MAX Power Output
165W ×2+350W@4Ω
Input
Bluetooth, RCA
Output
Speaker Output, Passive Subwoofer Output, Pre-Out
Treble & Bass Control
Yes
THD+N
≤ 0.03%
SNR
≥108dB
Terminating Impedance
2-8Ω
Power Supply
32V/5A, 48V/5A
Amp Chip
TPA3255
Fosi Audio BT20A PRO 300W x2 TPA3255 2 Channel Bluetooth 5.0 Power Amplifier - Fosi Audio

Fosi Audio BT20A Pro Bluetooth Stereo Power Amp

Type
Bluetooth 2.0 Ch Amp
MAX Power Output
2x 300W@4Ω
Input
Bluetooth, RCA
Output
Speaker Output, Pre-Out
Treble & Bass Control
Yes
THD+N
≤ 0.005%
SNR
≥108dB
Terminating Impedance
2-8Ω
Power Supply
32V/5A, 48V/5A
Amp Chip
TPA3255
Fosi Audio BT30D Bluetooth 2.1 CH Power Amplifier

Fosi Audio BT30D Bluetooth 2.1 CH Power Amplifier

Type
Bluetooth 2.1 Ch Amp
MAX Power Output
50W x2+100W
Input
Bluetooth + RCA
Output
Passive Speakers+Active/Passive Subwoofer
Treble & Bass Control
Yes
THD+N
≤ 0.04%
SNR
≥98dB
Terminating Impedance
2-8Ω
Power Supply
24V/4.5A
Amp Chip
TPA3116 x2

FAQs

Please read our FAQs page to find out more.

Stereo Mode

Replacing the op amps for both left and right channels in stereo mode, regardless of RCA or XLR inputs, will notably enhance sound quality.
Mono Mode: Only replacing the op amps for the right channel.

XLR Input

Using XLR input mode allows for further sound quality enhancement by replacing the op amps for the XLR channel.

Subwoofer Channel

If a subwoofer is connected, there's the option to replace the op amps responsible for the subwoofer channel.
Note: Carefully align the notch/the number '1' on the chip's cover with the 'O1' mark on the PCB.

Here is a tutorial video for your reference: https://youtu.be/VvYYwxAfBi4

Didn’t find your answer?

Don't hestitate to contact us

Customer Reviews

Based on 71 reviews
73%
(52)
15%
(11)
4%
(3)
1%
(1)
6%
(4)
D

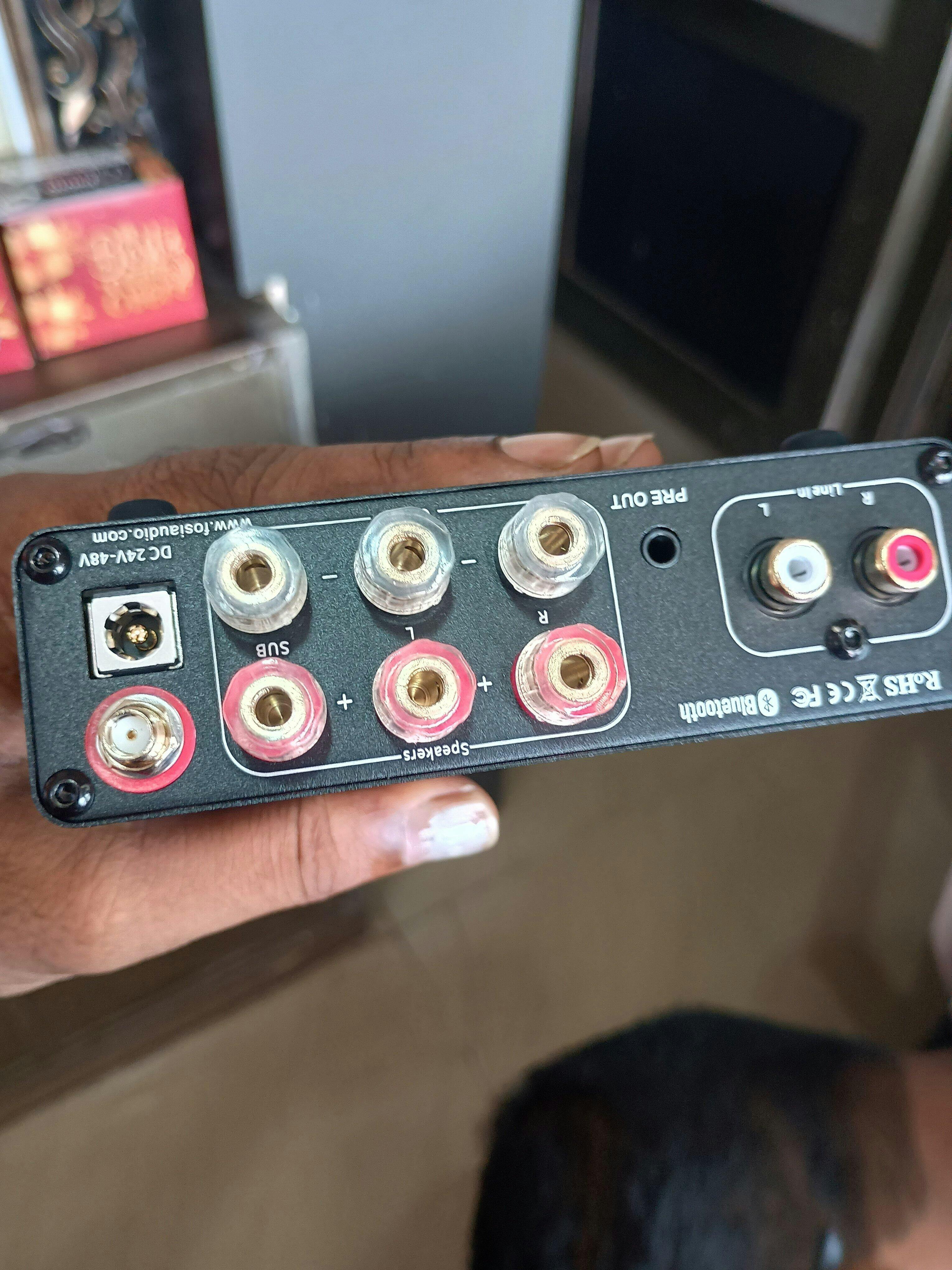

Daryl O toole
Runs a little hot

Happy enough with the unit. I added an old cpu heat sink onto to disapate some of the heat.
Im only using two speakers so no sub.
Works well nice setup. But I was surprised at the het of the fosi unit; hence my workaround. Worth getting.

H
Hadi Zavalaga Badeli
All goods, sound good, good power

But, it is very hot, you have to think a way to make it more cold

A
AMIT SINGH
A Compact Powerhouse with Exceptional Sound

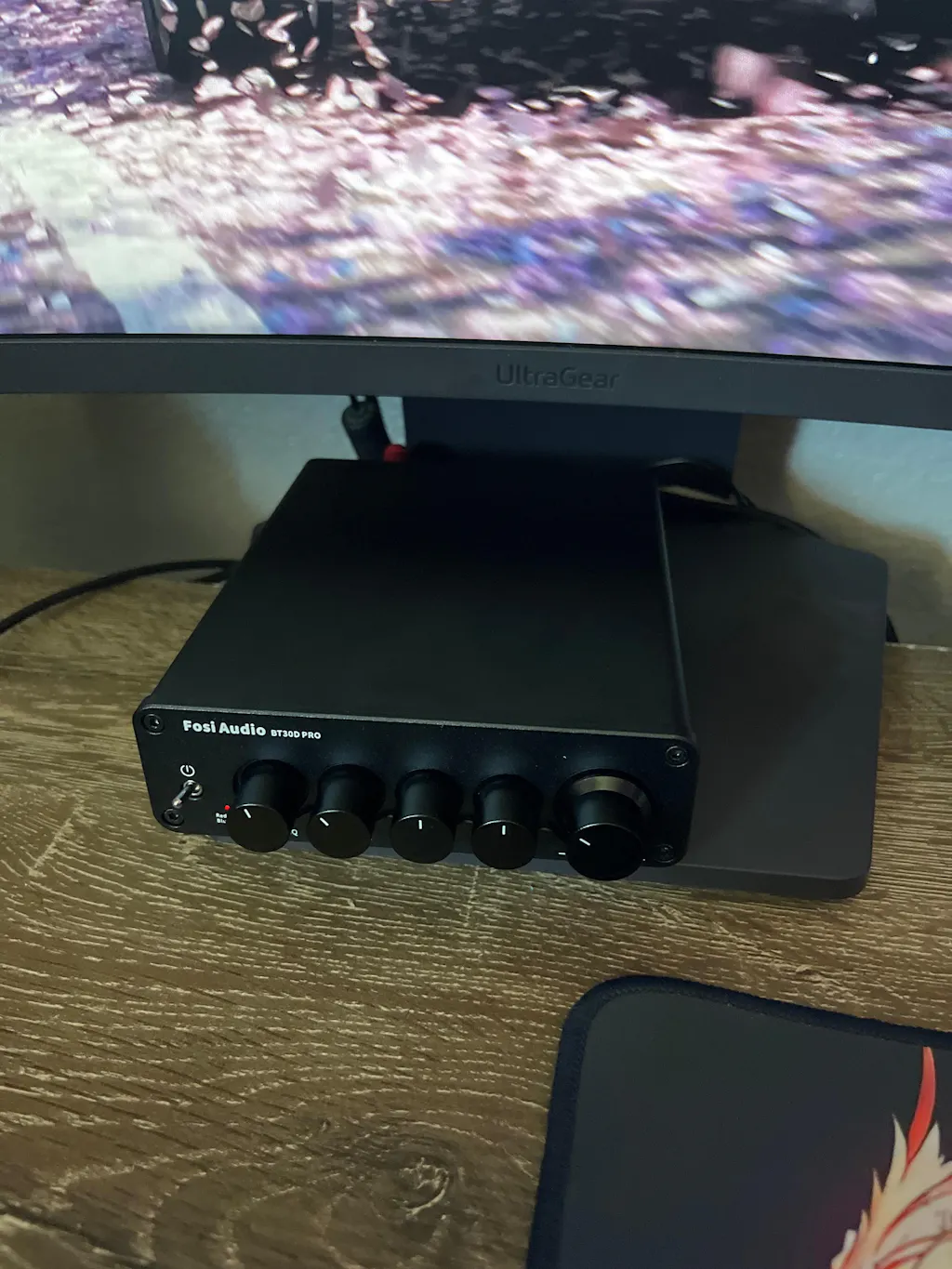

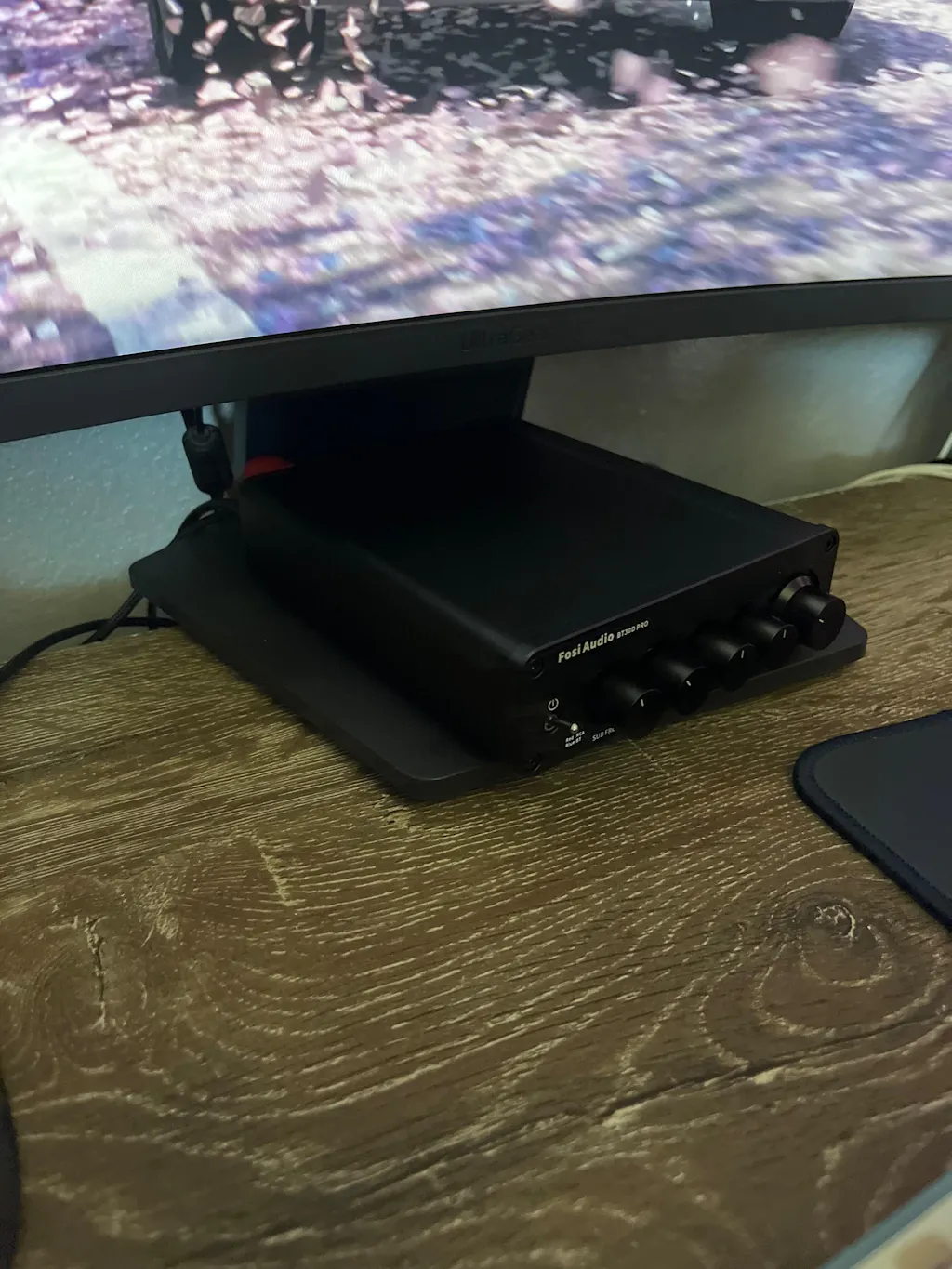

If you're in the market for a versatile and powerful amplifier that won't break the bank, the Fosi Audio BT30D Pro 2.1 Channel Bluetooth Amp deserves your serious consideration. This compact device punches well above its weight, delivering an audio experience that genuinely impresses.

From the moment you power it on, the sound quality is nothing short of amazing. The clarity and richness across the entire frequency spectrum are remarkable, providing a listening experience that's both immersive and enjoyable, whether you're a casual listener or an audiophile.

One of the standout features that truly sets the BT30D Pro apart is its highly intuitive and effective subwoofer control. The dedicated "Sub Freq" and "Sub Vol" adjustments are incredibly handy, allowing you to fine-tune your subwoofer's output precisely to your listening environment and personal preferences. This level of granular control ensures your bass is tight, impactful, and perfectly integrated with your main speakers, avoiding any boominess or muddiness.

Beyond the subwoofer, the amp also offers independent control over treble and bass, empowering you to tailor the sound profile exactly to your taste. Whether you prefer a brighter, more detailed sound or a warmer, bass-heavy presentation, the BT30D Pro allows for easy customization, ensuring your music always sounds its best.

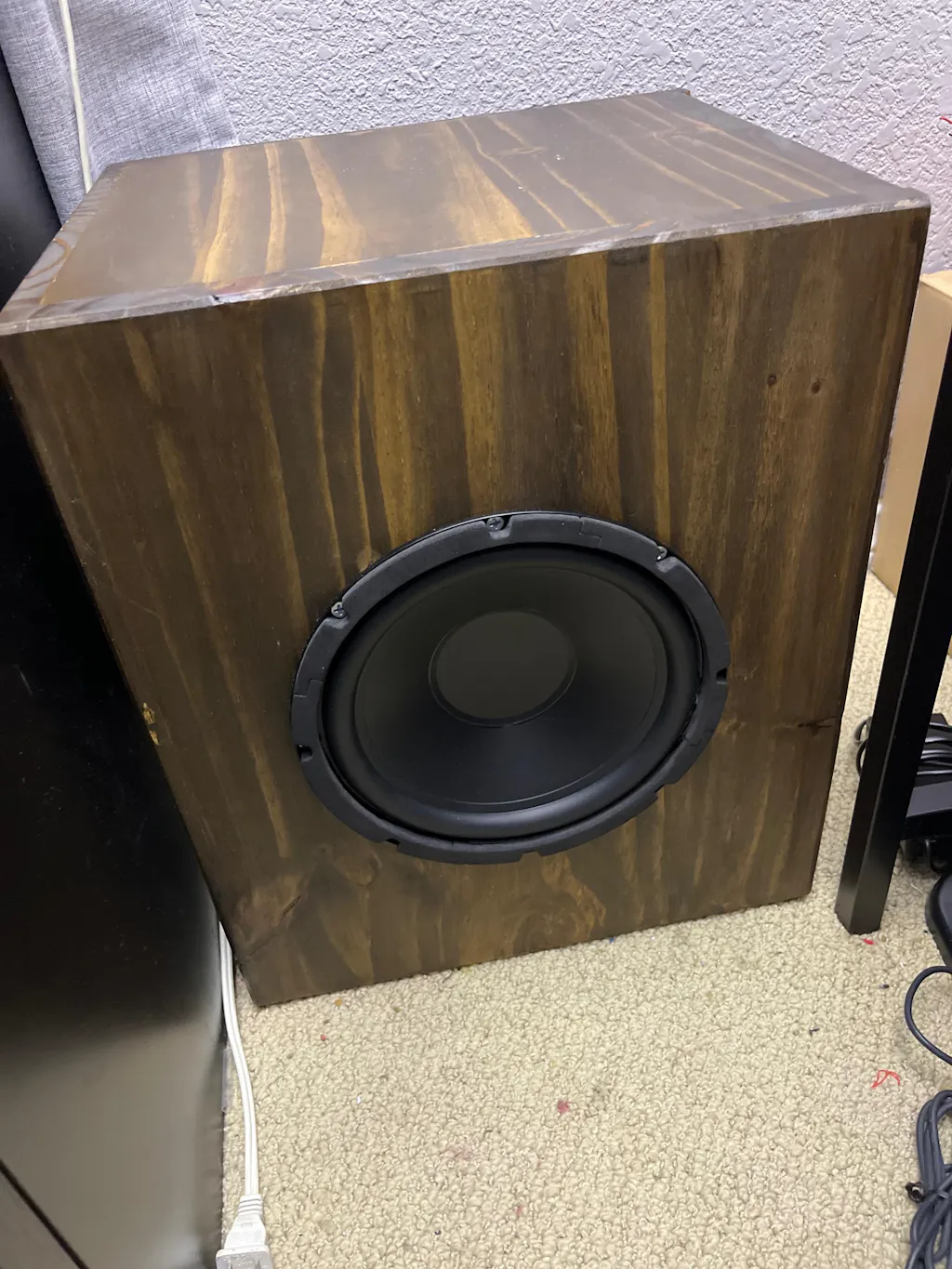

Despite its very compact design, don't let its small footprint fool you – this amplifier is genuinely powerful. It effortlessly drives demanding speakers and subwoofers. In fact, it flawlessly handles a 12" Pioneer Subwoofer D4, delivering deep, resonant bass without any signs of strain or distortion. This capability is particularly impressive for an amp of its size and price point.

In conclusion, the Fosi Audio BT30D Pro 2.1 Channel Bluetooth Amp is an exceptional piece of audio equipment. Its combination of amazing sound quality, precise subwoofer and tone controls, and surprising power in a compact form factor makes it an unbeatable choice. You will certainly not be disappointed with this little powerhouse.

S
Steve Simon
Great But...

The Fosi Audio BT30D Pro 2.1 is great as an amplifier. Im using it for an outdoor sound system in Las Vegas and im trying to figure out a way to see it outdoors and cool. There aren't any mounting holes for the amp so I needed to be creative on how to mount it. Also your specs don't state what size the coax BT antenna, I would like to buy a extender for the antenna,. Im mounting the amp inside a custom BBQ but Im trying to mount the antenna on the outside. So as for the amp its great I just wish you built more accessories or have outdoor amp options or mounting accessories.

O
Ondela Dayile
Great little amp.

Good amp has adequate power and perfect for small to medium room use. However, it did take a bit too long to be delivered.
