Product details
-

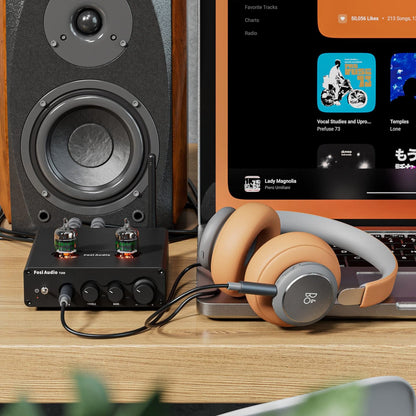

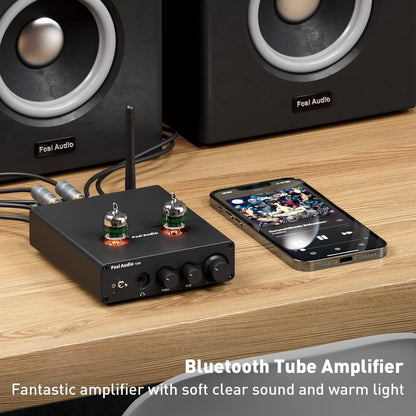

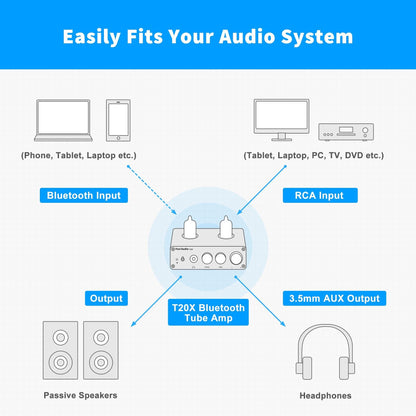

2-in-1: Hifi Music Tube Bluetooth 5.0 Home Audio Receiver 2 Channel Amplifier and Headphone Amp. T20X can drive most home passive/desktop speakers and 3.5MM headphones. Achieve Hifi music quality.
-
Bluetooth 5.0: Enjoy superior wireless audio experiences with Bluetooth 5.0 core. Faster transmission and more stable connection extended long range up to 50ft/15m. Wirelessly stream audio anywhere you want.
-

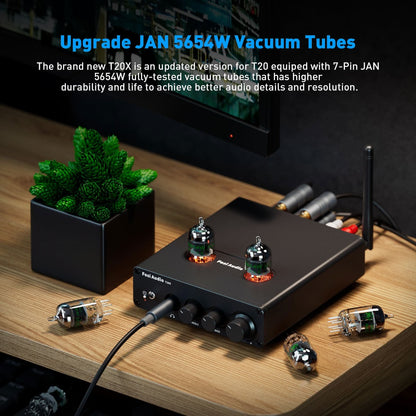

Vacuum Tubes: T20X is equipped with JAN 5654W Vacuum Tubes to get more warm sound. Applicable vacuum tubes model: 6K4/6J1/6A2/6J4/GE5654/6AK5/66*In vacuum tubes, etc. You can replace the vacuum tubes to DIY your stereo system. Different tube with different sound.
-
Product Parameters: MAX Power Output: 100W x2@4Ω, Terminating Impedance: 4-8Ω, THD: ≤0.05%, SNR: ≥ 105dB, Amplifier Chip: TPA3221, Frequency Range: 20Hz-20kHz(±1dB).
-
What you Get: T20X amplifier x1, Bluetooth antenna x1, 5654W Vacuum tubes x2, User Manual x1, 24V/4.5A Power Adapter x1, AC Cord x1, 24-month worry-free warranty, and friendly customer service.
Specifications
| Specifications | Details |
|---|---|
| Model | T20X |
| Chip Set | TPA3221 |
| Output Power | 100W x2@4Ω |
| Terminating Impedance | 2Ω-8Ω |
| Input Mode | Bluetooth + RCA |
| Output Mode | Passive Speakers + Headphone |
| Frequency Range | 20Hz - 20kHz (±1 dB) |
| THD | ≤ 0.05% |
| SNR | ≥ 105dB |
| Bluetooth Transmission Distance | Up to 28 Ft(10m) |
| Bluetooth Name | Fosi Audio T20X |
| Device Dimension | 5.40 x 4.80 x 1.35 inches |
| Device Weight | 479.8g±10g |
| DC Input Range | 19-30V |
| Power Supply | 24V 4.5A |

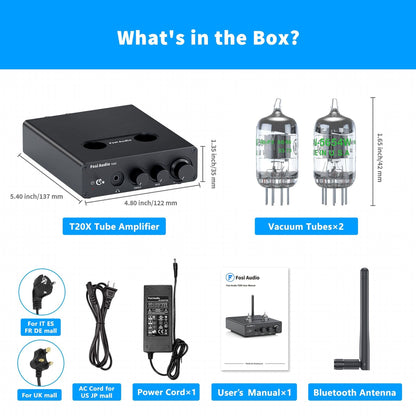

What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio T20X Amplifier | x 1 |
| Bluetooth Antenna | x 1 |
| Vaccum Tubes | x 2 |
| 24V 4.5A Power Adapter | x 1 |
| User’s Manual | x 1 |
Compare with similar items
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
- Using a more powerful power supply can help prevent distortion.
- Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
