Product details

  • Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use, small size, good looks, simple functionality, and excellent sound quality;

  • Best for bookshelf/computer/desktop/speakers in your room, connect to your Phone/MP3 player/DC/TV/Echo Dot as input, 50W X 2(4 ohms, 20 Hz - 20 kHz, 0.04% THD) can drive 2Ohm - 8Ohm speakers;

  • Home Hi-Fi integrated amplifier, Exclusively designed for the customers who pursue HiFi sound; Ship with power adapter and power cord, you can use directly;

  • Simple compact design but practical and powerful, Adopt TI TPA3116D2 chip to get clear and clarity sound, no audible noise, dead silent when nothing is playing through it;

  • Aluminum shell and Aluminum knob to sure high quality come to a 19V power supply that can fit with the amplifier well. 24-month warranty, you can return the item if you have any problems;

Fosi Audio V1.0G 2 Channel Stereo Audio Class D Amplifier Mini Hi-Fi Professional Digital Amp for Home Speakers 50W x 2
Fosi Audio V1.0G 2 Channel Stereo Audio Class D Amplifier Mini Hi-Fi Professional Digital Amp for Home Speakers 50W x 2



Specifications

Specifications Details
Model V1.0G
Chip Set TPA3116
Output Power 50W x2@4Ω
Terminating Impedance 2Ω-8Ω
Input Mode RCA
Output Mode Passive Speakers
Frequency Range 20Hz - 20kHz (±1dB)
THD ≤ 0.04%
SNR ≥ 98dB
Input Sensitivity ≤ 280mV
Device Dimension 4.13 x 3.54 x 1.38 inches
DC Input Range 12-24V
Power Supply 19V 4.74A

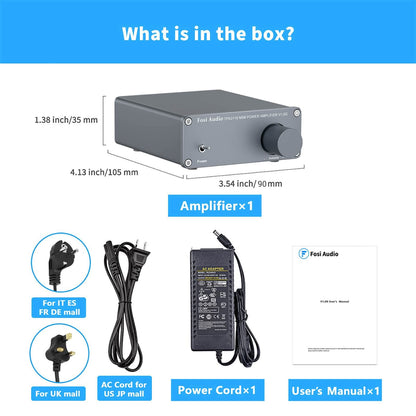

What‘s in the box?

Item Quantity
Fosi Audio V1.0G Amplifier x 1
19V 4.74A Power Adapter x 1
User’s Manual x 1



Video

Compare with similar items

FAQs

Please read our FAQs page to find out more.

How to: Choose the right banana plug?
  • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
  • Easy to wire up and solidly connect to amplifier and passive speaker.
  • If they do not fit, use a little force to tighten the plugs.
  • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
  • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
  • The following situations may cause this issue
  • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
  • Possible solution
  • Check if the power supply is illuminated when plugged into AC by itself.

    Plug power supply into a different socket.

    Test the adapter with a meter.

    Try a different power supply (within a range of DC input).

    Test the included power supply on other electrical equipment.

    Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
  • Using a more powerful power supply can help prevent distortion.
  • Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
  • The GaN supply has a power output of 240W.
  • Offers overload and over-temperature protection.
  • The 48V 5A GaN power supply is also available on Amazon.

Didn’t find your answer?

Don't hestitate to contact us
