Powered Subwoofer
Fosi Audio TP-02 Subwoofer Amplifier
$79.99
Pairs well with
Fast, Free Shipping!
24 Months Warranty
30-Day Money-Back Guarantee
Lifetime Customer Support
Fosi Audio TP-02 Subwoofer Amplifier
New
$79.99
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We offer free worldwide shipping, except for certain regions such as Ukraine and Russia, where our services are currently unavailable.
-
Customer Support
WhatsApp: +8613716612254
support@fosiaudio.com
Mon-Fri: 3:00 AM - 3:00 PM PST -
FAQ’s
If you have any questions, please refer here: FAQs
Product details
-
Adopt Texas Instruments TDA7498E chip, NE5532 op-amp. No pop, no audible noise, dead silent when nothing is playing through it;
-
Built-in low pass filter, 220W X 1(4 ohms, 20 Hz - 120Hz, 0.04% THD, 18db/octacce) for subwoofer, Small simple compact design but practical and powerful;
-
Advanced circuitry design, built-in speakers protection circuit, solid aluminum chassis for long time use;
-
The new version of TP02 has one more sub freq adjustment knob than the old version, and the others remain unchanged.
Quick tips:
1. Please plug the power cord into the amp THEN the wall, plug the audio cables into amp THEN switch on.
Some customers may see some slight sparks flying when they plug the power supply into the amplifier, because they use it in wrong way, you need to connect the amp to the power supply first, then plug the power supply into the 110v AC outlet, don't worry about the sparks, because this is class d amplifier, the capacitors need to charge when the power in, it's normal and safe.
Specifications
| Specifications | Details |
|---|---|
| Model | TP-02 |
| Output Power | 220W for Subwoofer |
| Terminating Impedance | 2Ω-8Ω |
| Input Mode | RCA |
| Output Mode | Passive Subwoofer /
|
| Frequency Range | 20-200Hz |
| THD | ≤ 0.04% |
| SNR | ≥ 98dB |
| Input Sensitivity | ≤ 280mV |
| Device Dimension | 5.12 x 3.54 x 1.58 inches |
| DC Input Range | 12-24V |
| Power Supply | 24V 4.5A |
What‘s in the box？
| Item | Quantity |
|---|---|
| Fosi Audio TP-02 Amplifier | x 1 |
| AC Power Cord | x 1 |
| 24V 4.5A Power Adapter | x 1 |
| User’s Manual | x 1 |
Compare with similar items:
FAQs
Please read our FAQs page to find out more.
How to: Choose the right banana plug?
- Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
- Easy to wire up and solidly connect to amplifier and passive speaker.
- If they do not fit, use a little force to tighten the plugs.
- Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
- Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
- The following situations may cause this issue
- Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
- Possible solution
- Check if the power supply is illuminated when plugged into AC by itself.
Plug power supply into a different socket.
Test the adapter with a meter.
Try a different power supply (within a range of DC input).
Test the included power supply on other electrical equipment.
Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
- Using a more powerful power supply can help prevent distortion.
- Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
- The GaN supply has a power output of 240W.
- Offers overload and over-temperature protection.
- The 48V 5A GaN power supply is also available on Amazon.
Customer Reviews
Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Worth every penny. Paired with Fosi BT20A PRO and polk audio speakers. Sounds amazing.
E

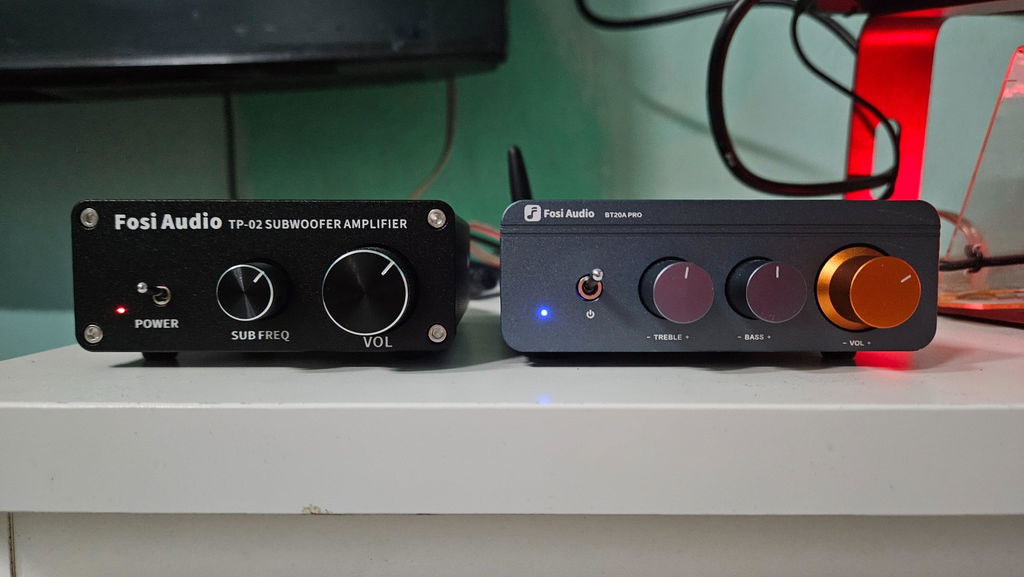

I hooked this into a jbl 160 with a failed plate amp that houses an 8" 4ohm svc subwoofer. This little beast can easily overdrive that woofer at 60%. Played for about 10 minutes in the garage and the unit was cold to the touch. Next I'm going to try two 12" dvc subs at 2 ohm. I have no doubts that it will be up to the task. Very impressed. Crazy how far amp technology has come since I was a kid. Only test now will be longevity. I'll try to update if anything changes.
D
Very powerful for bass shaker Dayton Basx A300 . Good good product
S
This replaced a cumbersome plate amplifier and I lost nothing in performance
