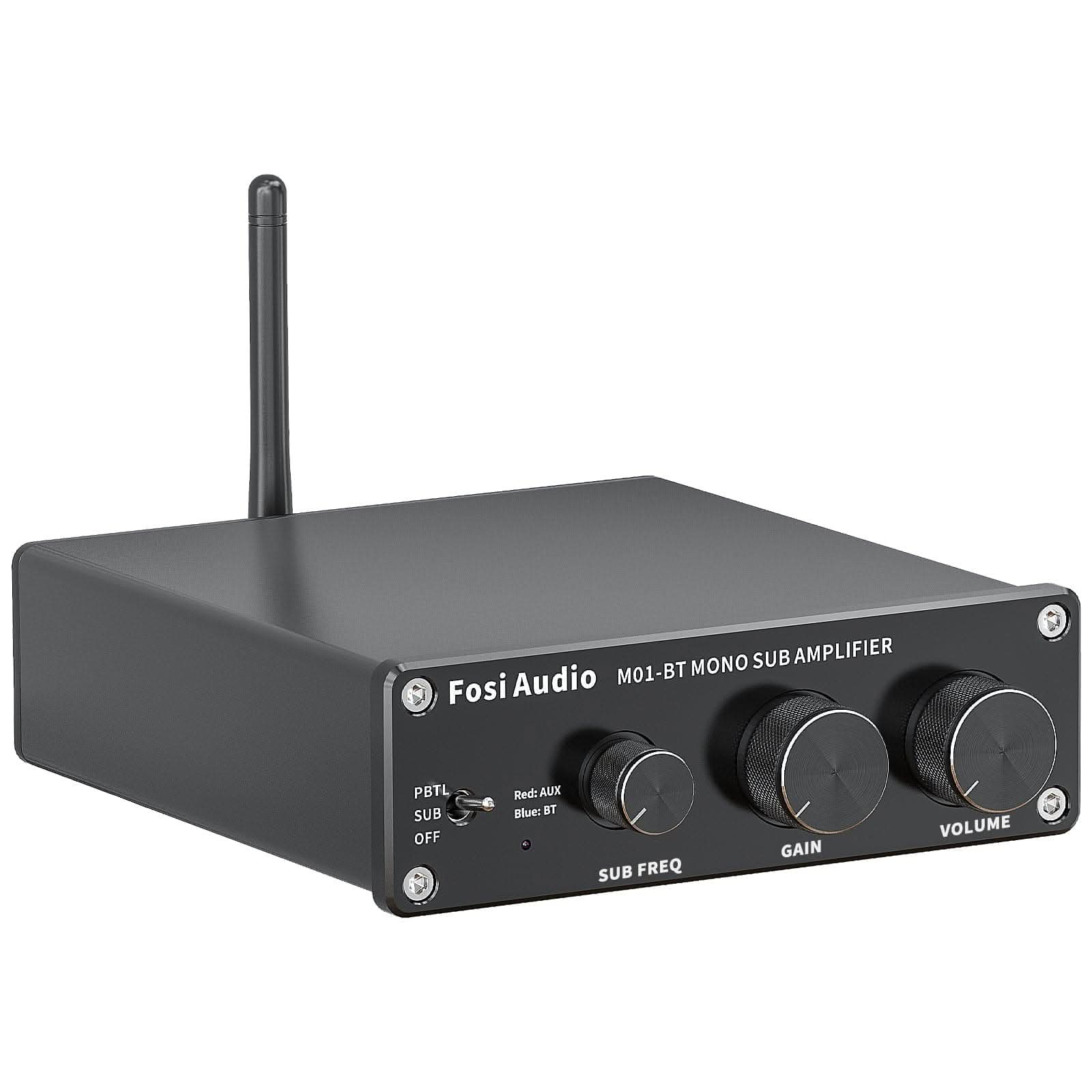

Product details

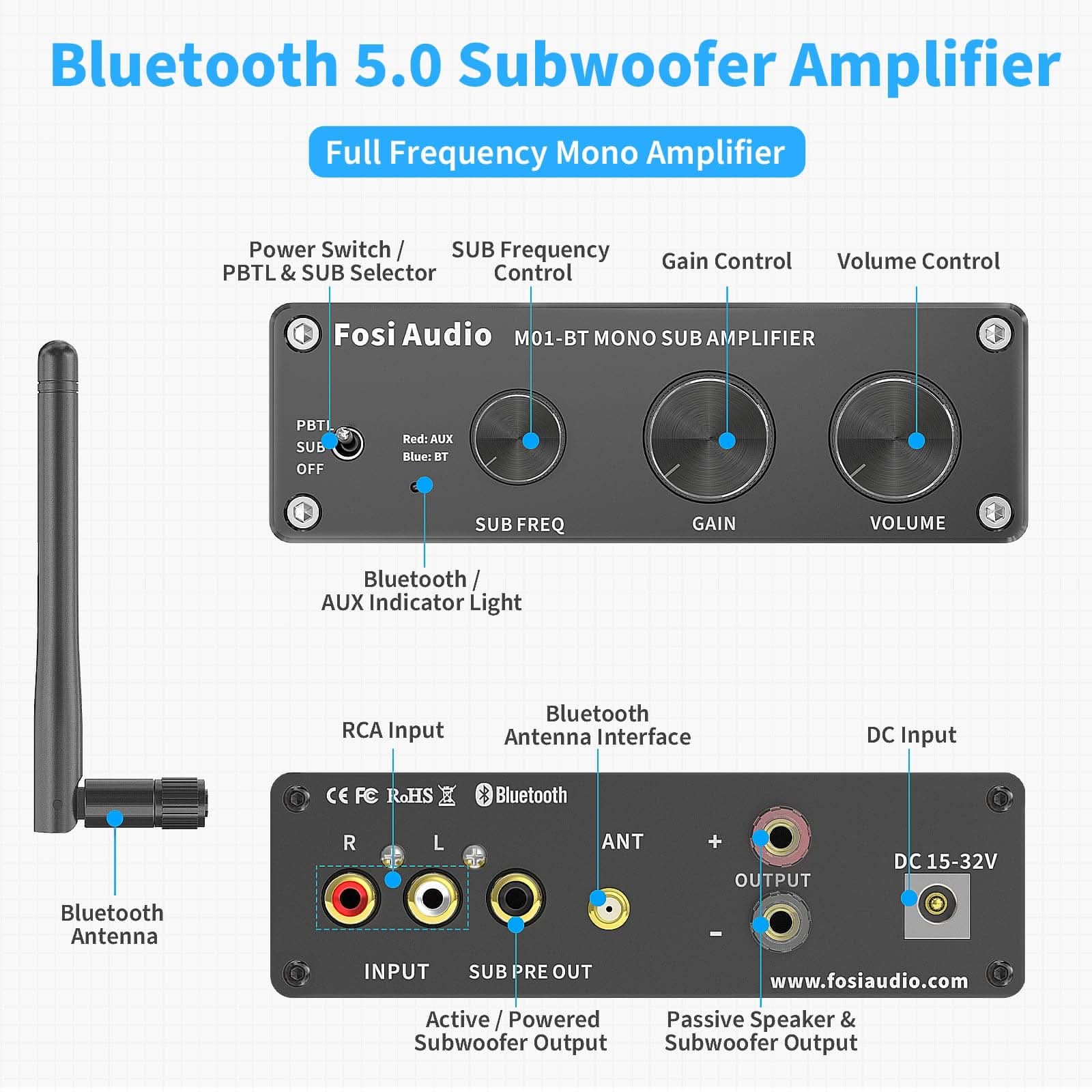

  • Upgraded Design: Add Bluetooth to a subwoofer amplifier. M01-BT support Bluetooth and RCA input can drive most home passive speakers, passive subwoofers, and powered subwoofers. (Note: M01-BT is not suitable for active speakers). Easy to build a simple sound system with M01-BT.

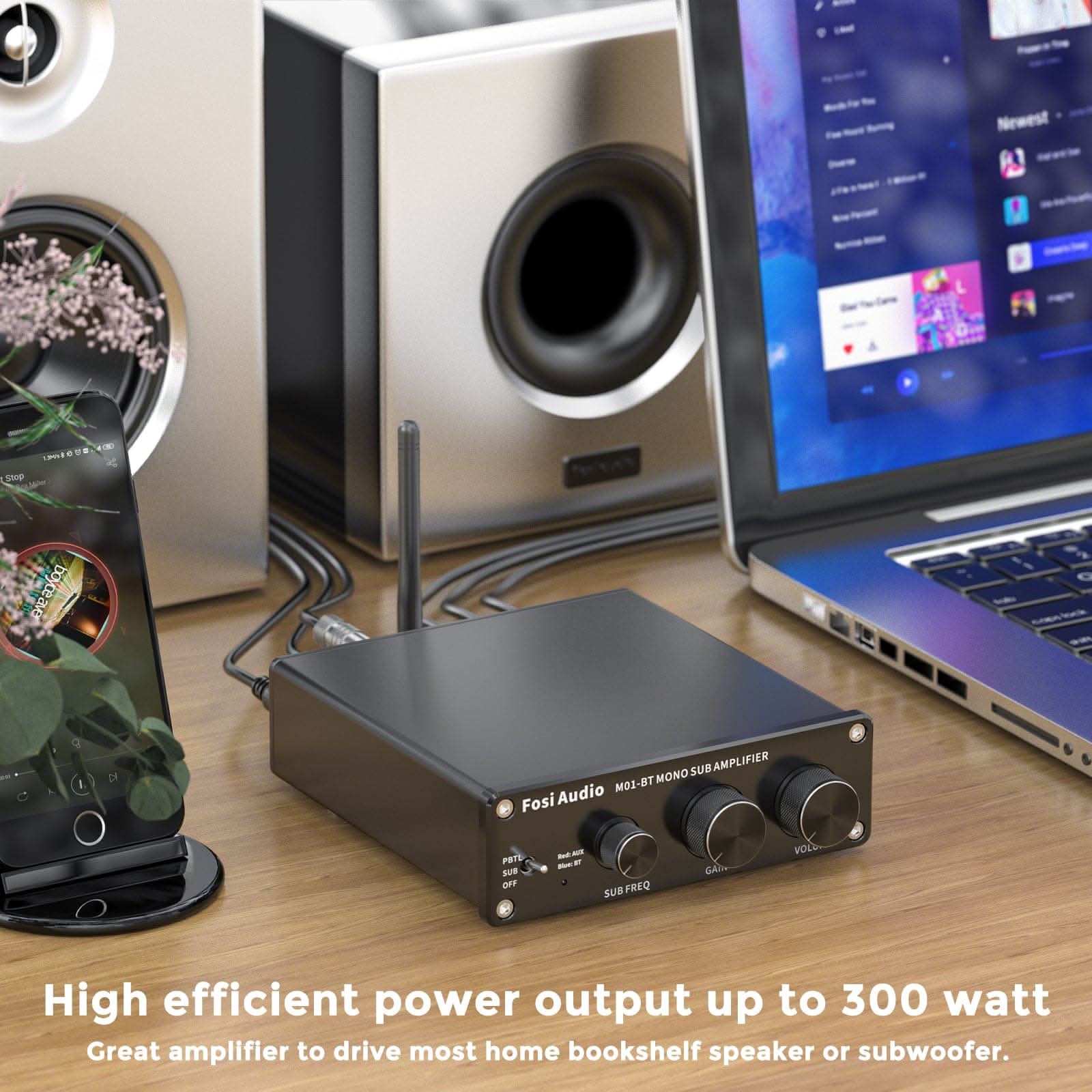

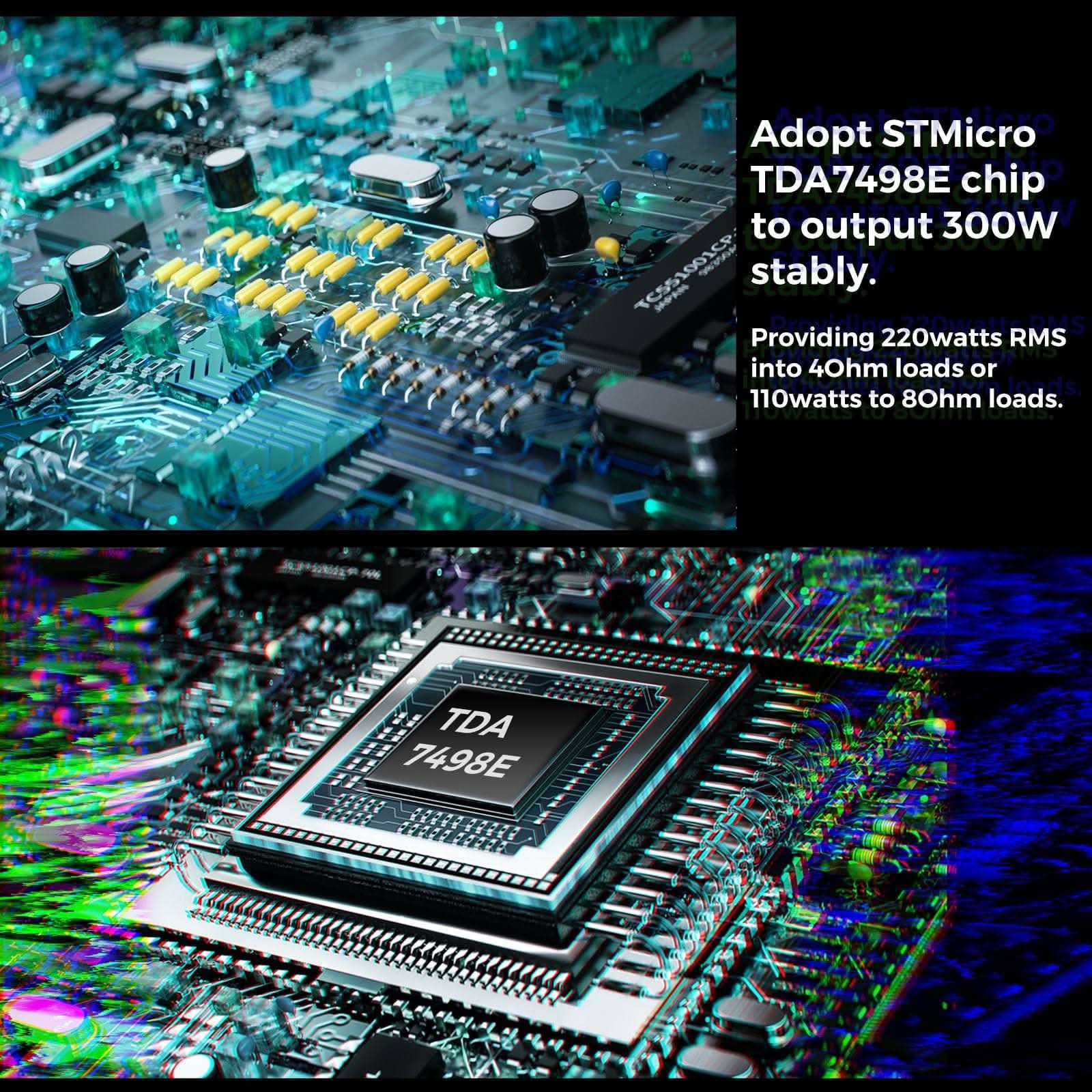

  • Mini compact Class D Audio Amplifier. M01-BT SUB amp adopts ST Microelectronics TDA7498E high-performance chip, MAX power output up to 300Watts.

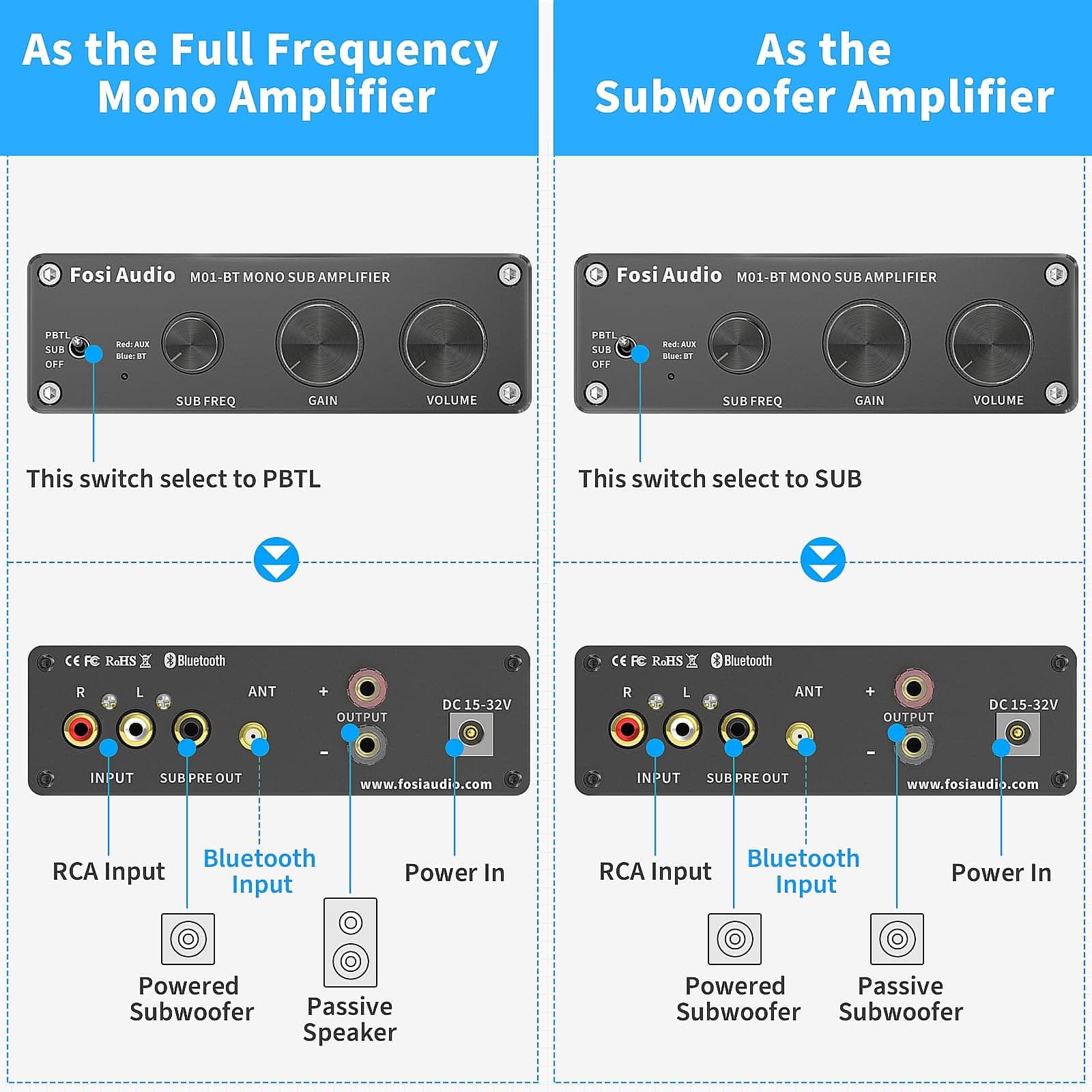

  • Switch to PBTL(As a full frequency mono amp): You can use the banana plugs or bare wires to connect the passive subwoofer to the M01-BT, use the RCA cable to connect the powered subwoofer to the M01-BT.

  • Switch to SUB(As a subwoofer amp): You can use the banana plugs or bare wires to connect the passive subwoofer to the M01-BT, use the RCA cable to connect the powered subwoofer to the M01-BT.

  • What you Get: M01-BT amplifier x1, Bluetooth antenna x1, User Manual x1, 24V/4.5A Power Adapter x1, AC Cord x1, 18-month worry-free warranty, and friendly customer service.

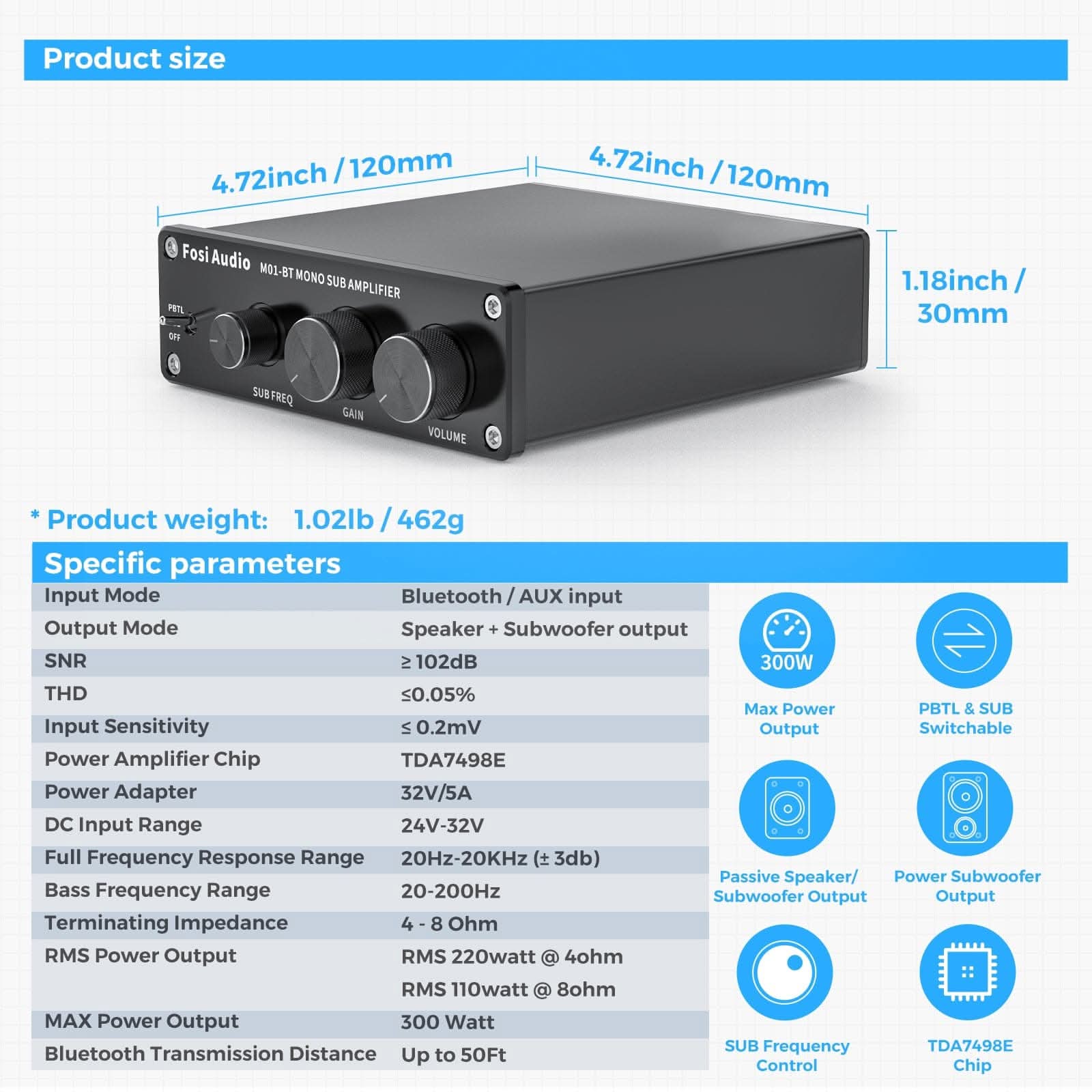

Specifications

Specifications Details
Model M01-BT
MAX Power Output 300W
RMS Power Output RMS220W@4Ω, RMS 110W@8Ω
Terminating Impedance 2-8Ω
Input Mode Bluetooth + RCA
Output Mode Passive Speaker + Powered Subwoofer
Frequency Range 20Hz - 20kHz (±3 dB)
Bass Frequency Range 20-200Hz
THD ≤0.05%
SNR ≥ 102dB
Input Sensitivity ≤ 0.2mV
Chip Set TDA7498E
DC Input Range 24-32V
Power Supply 24V 4.5A

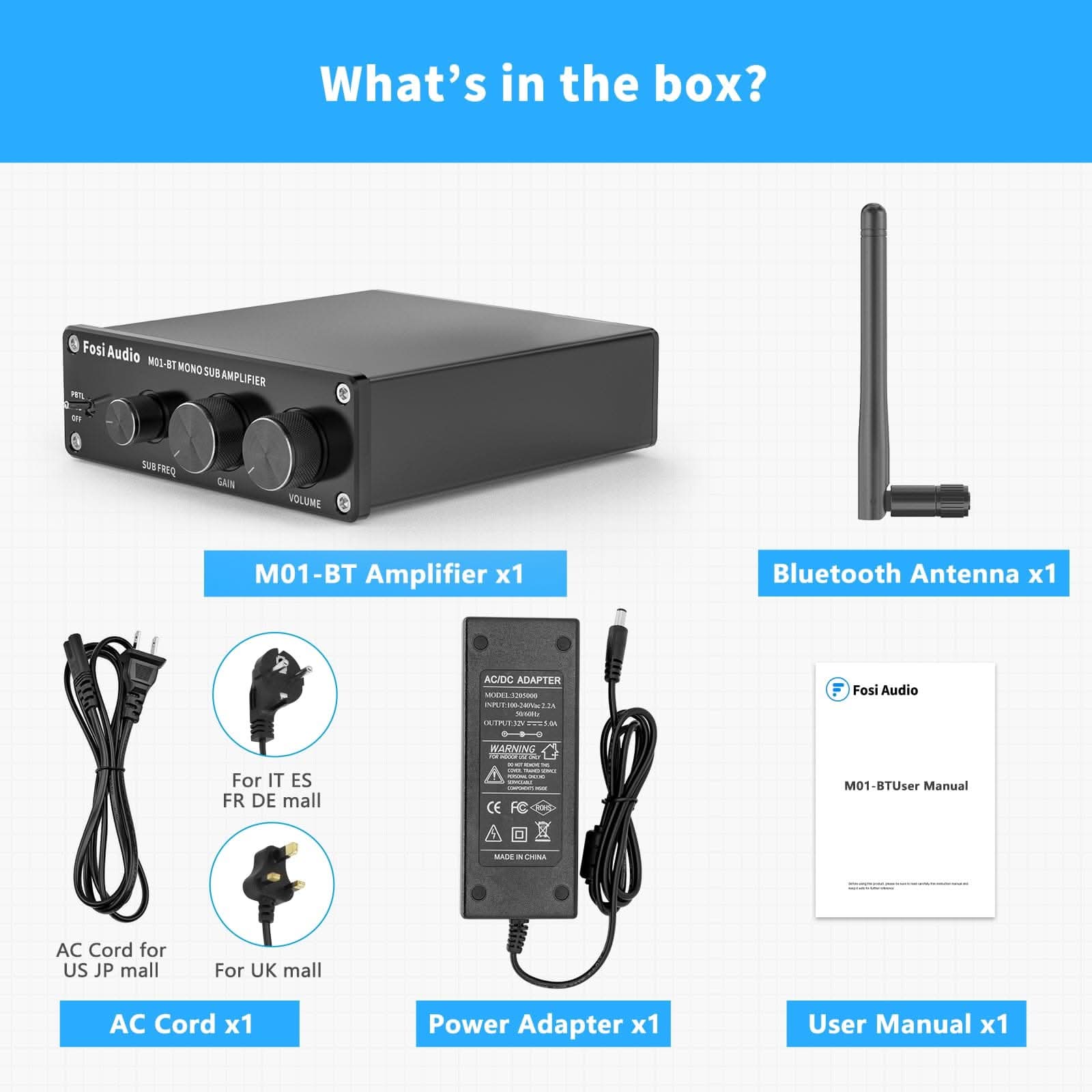

What‘s in the box?

Item Quantity
M01-BT Amplifier x 1
Bluetooth Antenna x 1
32V 5A Power Adapter x 1
User’s Manual x 1

Compare with similar items:

FAQs

Please read our FAQs page to find out more.

How to: Choose the right banana plug?
  • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
  • Easy to wire up and solidly connect to amplifier and passive speaker.
  • If they do not fit, use a little force to tighten the plugs.
  • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
  • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
  • The following situations may cause this issue
  • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
  • Possible solution
  • Check if the power supply is illuminated when plugged into AC by itself.

    Plug power supply into a different socket.

    Test the adapter with a meter.

    Try a different power supply (within a range of DC input).

    Test the included power supply on other electrical equipment.

    Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
  • Using a more powerful power supply can help prevent distortion.
  • Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
  • The GaN supply has a power output of 240W.
  • Offers overload and over-temperature protection.
  • The 48V 5A GaN power supply is also available on Amazon.

Didn’t find your answer?

Don't hestitate to contact us
