Product details

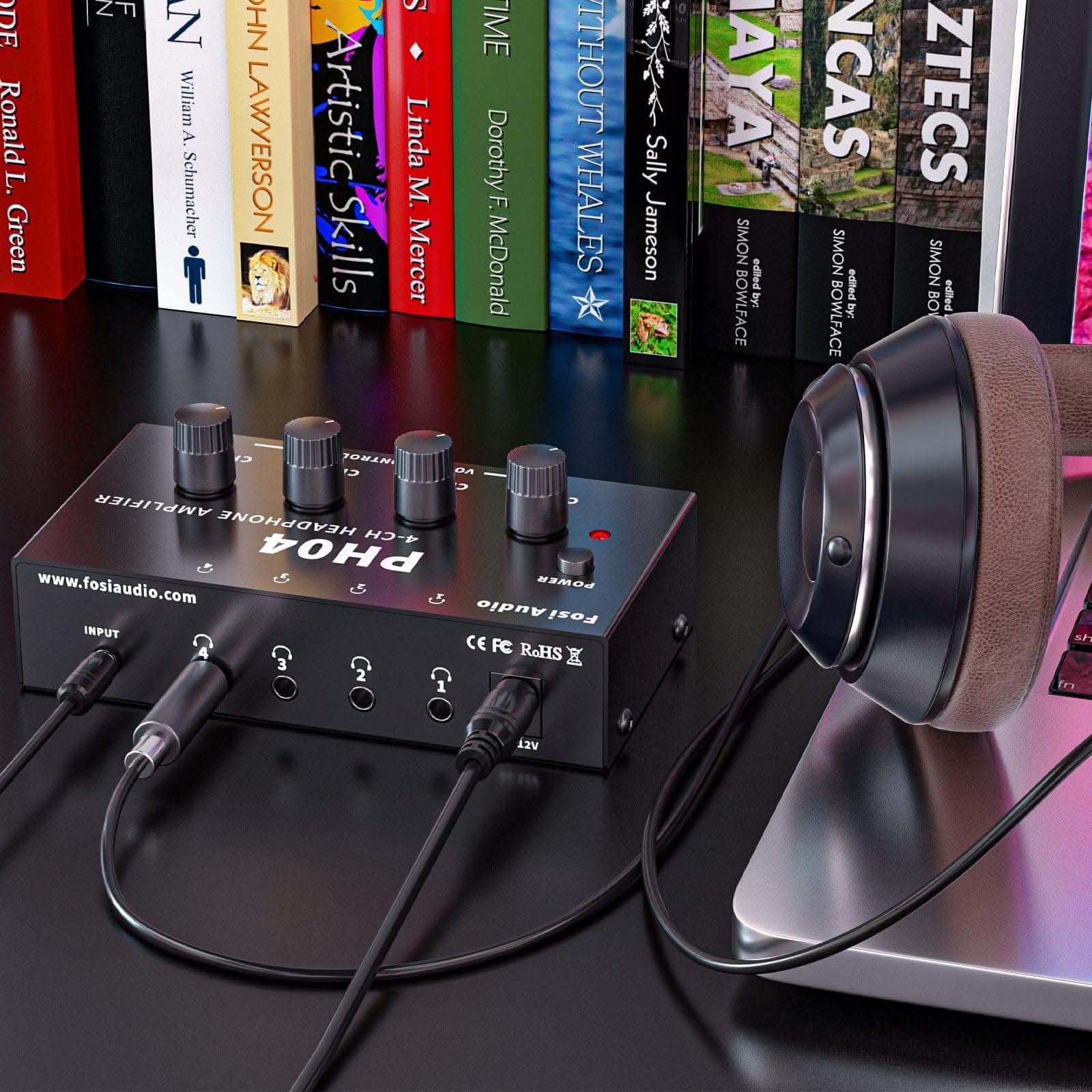

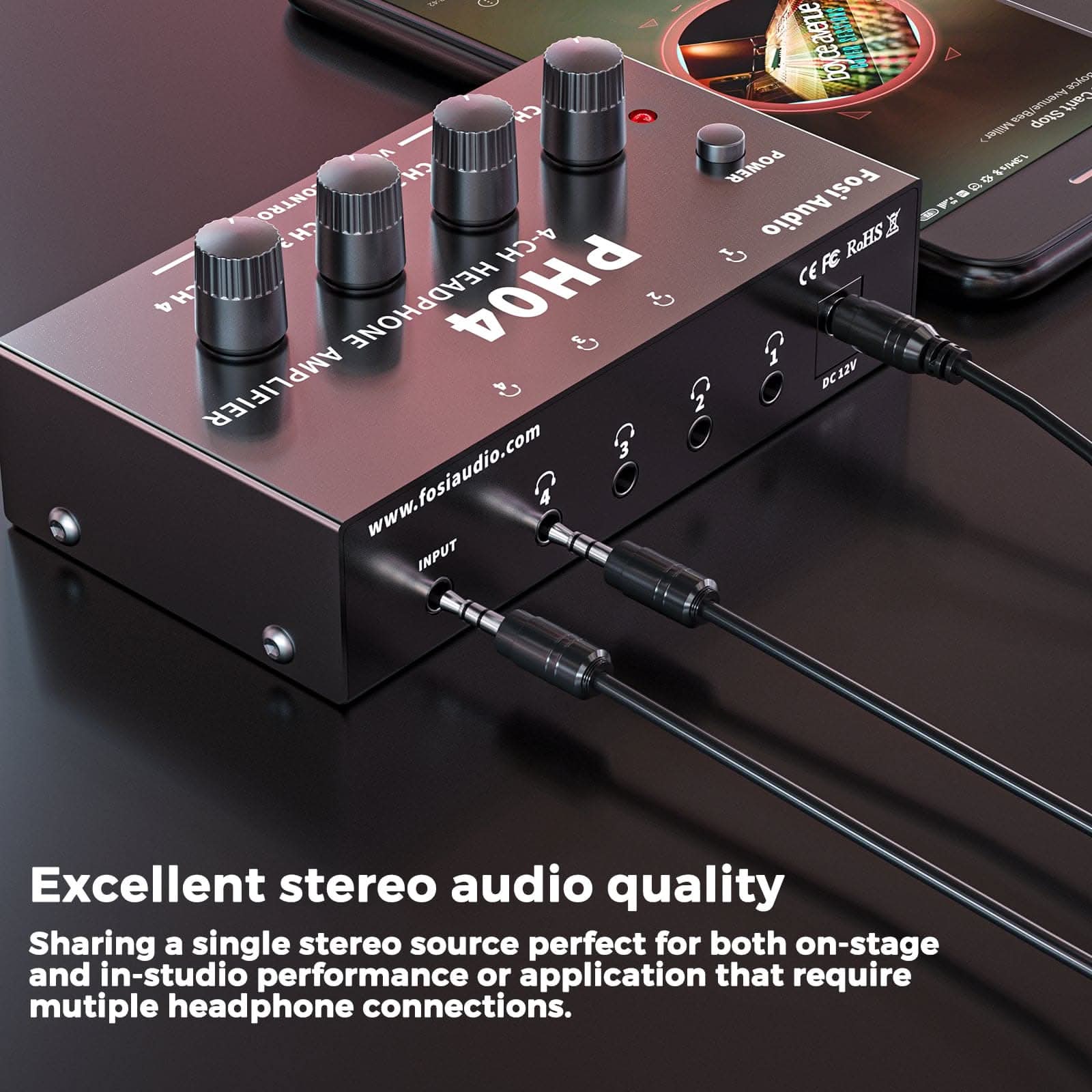

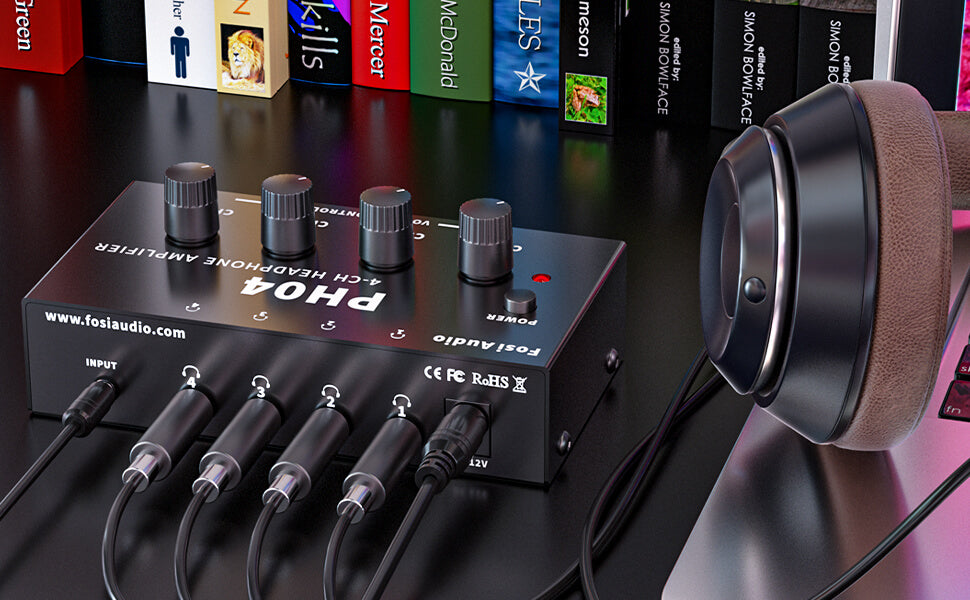

  • Share a Single Stereo Source: 4 channel amplifier features 4 independent stereo high-power amplifier sections with separate volume knobs for each of up to four outputs, which makes it possible for up to four people to monitor the mix for tracking, live uses and listen to the TV with earbuds while working out.

  • For Studio and Stage Applications or more: Such an ultra-compact and portable design makes it very suitable for the studio or stage where multiple headphones are used at the same time.

  • Fantastic Stereo Quality: It is a mini headphone amplifier with 3.5mm (not 6.35mm)input/output that contributes to the smoother connection of output and input, suitable for virtually all types of headphones, creating the highest Stereo audio Quality and eliminating the need for a 6.35 to 3.5mm adapter to connect the headphone power amplifier to the headphone.

  • Unique Compact design with switch: It is convenient for you to turn on/off the compact headphone power amplifier with a power switch anytime and anywhere, saving energy when enjoying high stereo audio quality.

  • What You G: Ultra low noise headphone amplifier*1,12V DC power adapter *1, Use manul*1, 18 Months Warranty for Fosi Audio Headphone amplifier. Please contact us at any time if you have any problems.

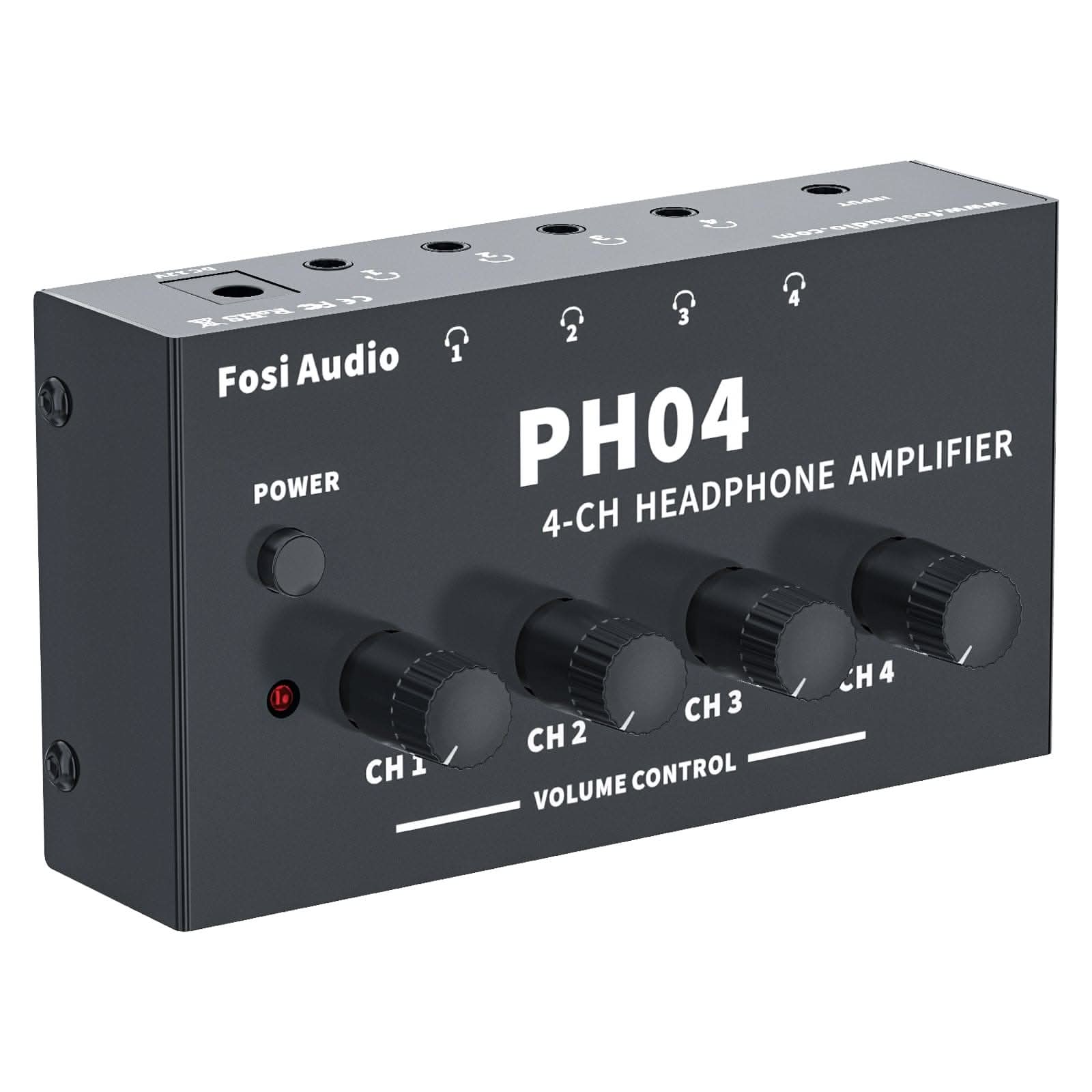

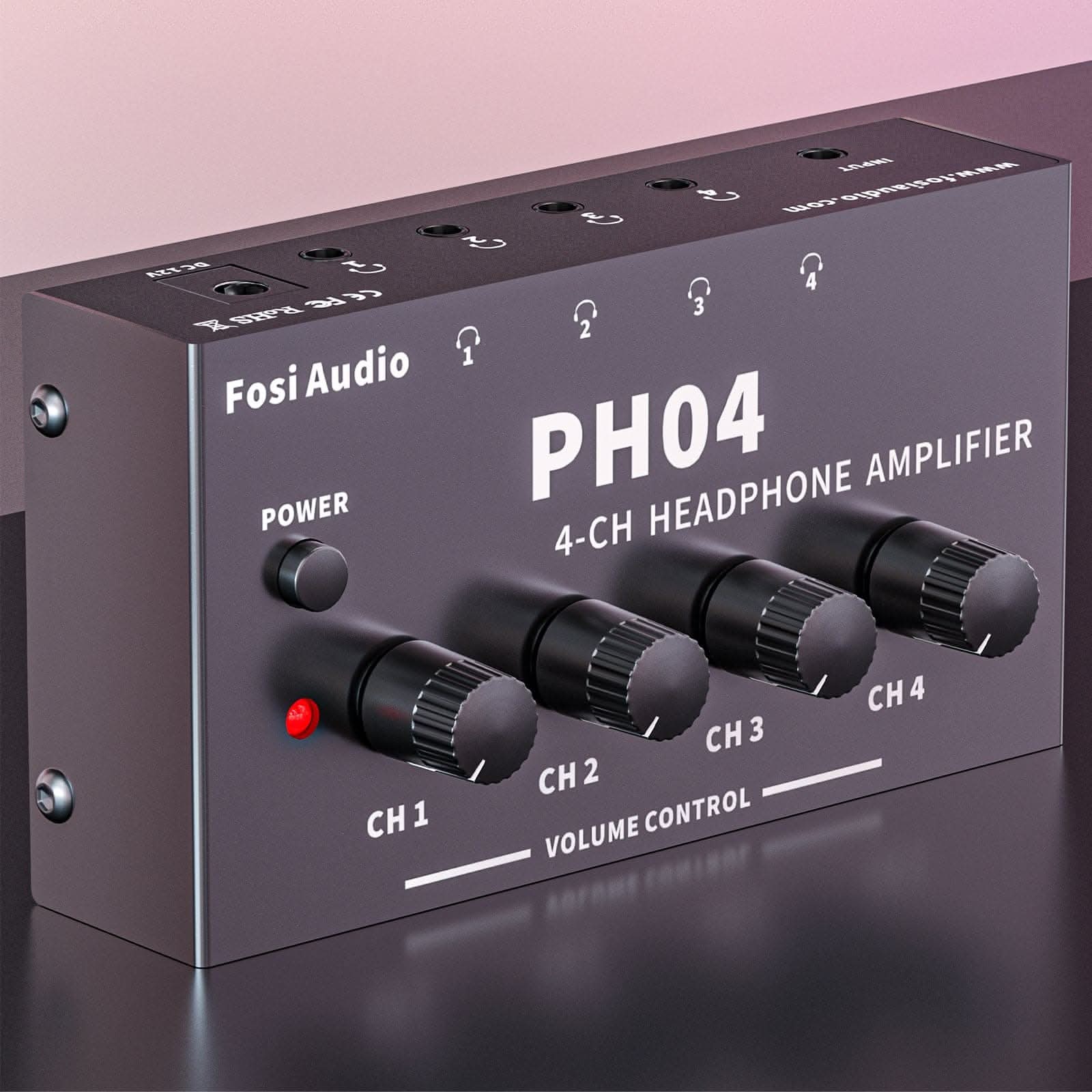

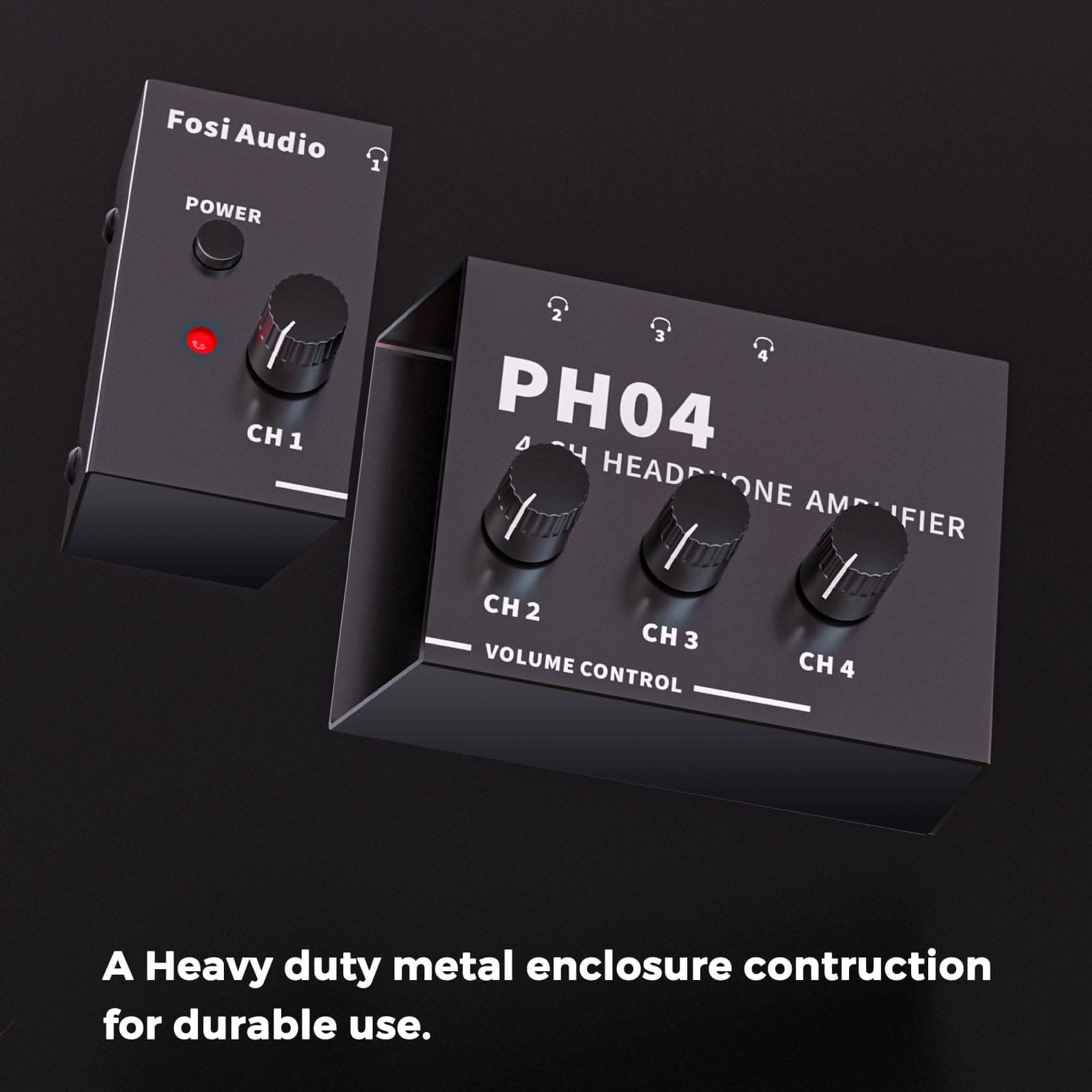

Fosi Audio PH04 Headphone Amplifier 4 -Channel Metal Stereo Audio Amp Ultra-Compact Portable Headphone Splitter for Studio
Fosi Audio PH04 Headphone Amplifier 4 -Channel Metal Stereo Audio Amp Ultra-Compact Portable Headphone Splitter for Studio



Specifications

Specifications Details
Model PH04
Input Mode 1/8'' headphone, stereo
Output Mode 1/8'' headphone, stereo
Input Impedance 100 Ω
Output Impedance 80 Ω
Max. Input level +15dBu
Max. Output level 40mW in 100 Ω

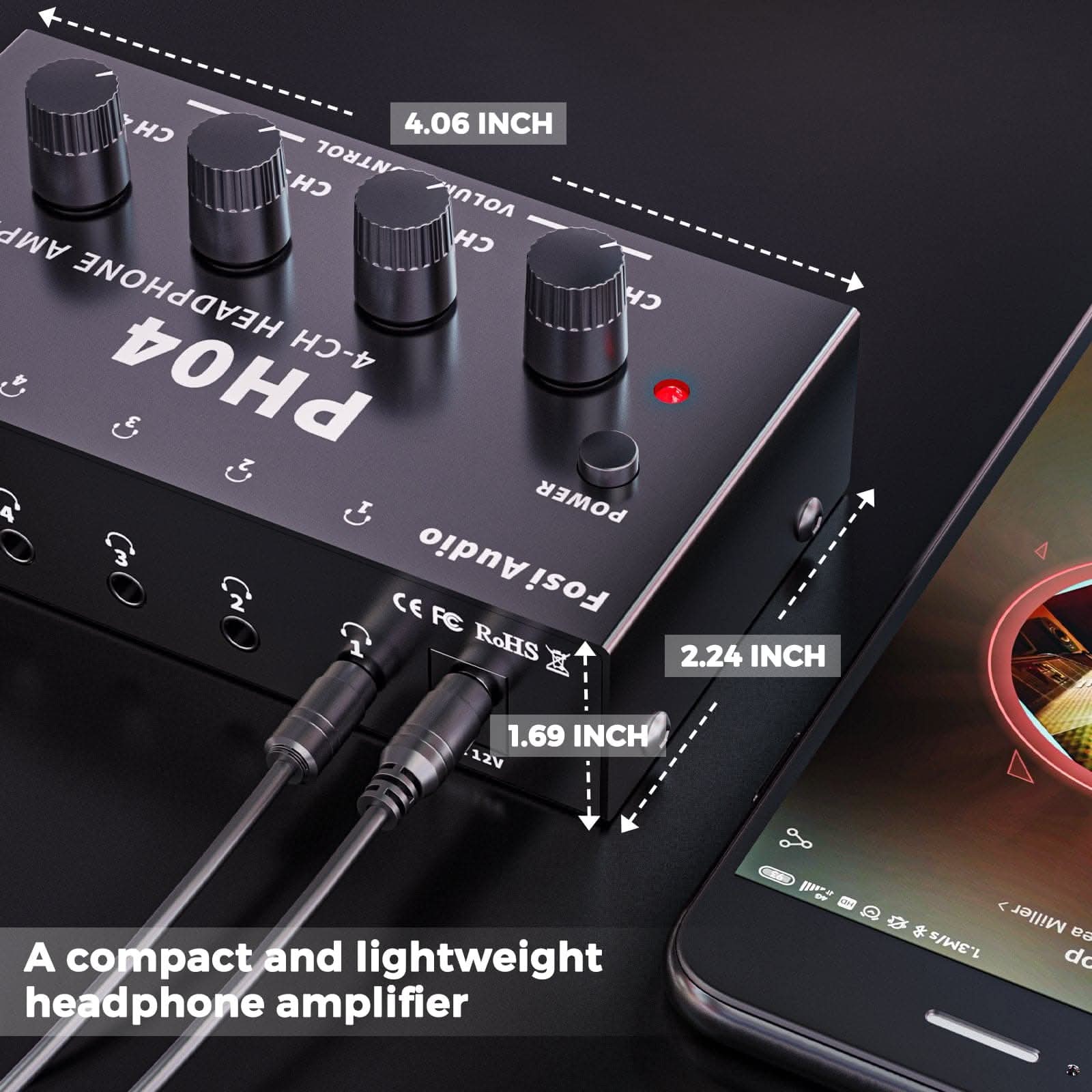

Device Dimension 103 x 57 x 43MM (4.06 x 2.24 x 1.69’’) includes knobs
Device Weight 175g
Power Supply 12V 1.5A


What‘s in the box?

Item Quantity
Fosi Audio PH04 x 1
12V 1.5A Power Adapter x 1
User’s Manual x 1



FAQs

Please read our FAQs page to find out more.

How to: Choose the right banana plug?
  • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
  • Easy to wire up and solidly connect to amplifier and passive speaker.
  • If they do not fit, use a little force to tighten the plugs.
  • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
  • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
  • The following situations may cause this issue
  • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
  • Possible solution
  • Check if the power supply is illuminated when plugged into AC by itself.

    Plug power supply into a different socket.

    Test the adapter with a meter.

    Try a different power supply (within a range of DC input).

    Test the included power supply on other electrical equipment.

    Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What are the differences in power outputs using the 32V and 48V power supplies?
  • Using a more powerful power supply can help prevent distortion.
  • Enables amplifier to drive larger, more powerful, or higher-impedance speakers.
What is a GaN?
  • The GaN supply has a power output of 240W.
  • Offers overload and over-temperature protection.
  • The 48V 5A GaN power supply is also available on Amazon.

Didn’t find your answer?

Don't hestitate to contact us
