Product details

  • High-Performance Chip, Outstanding Sound Quality

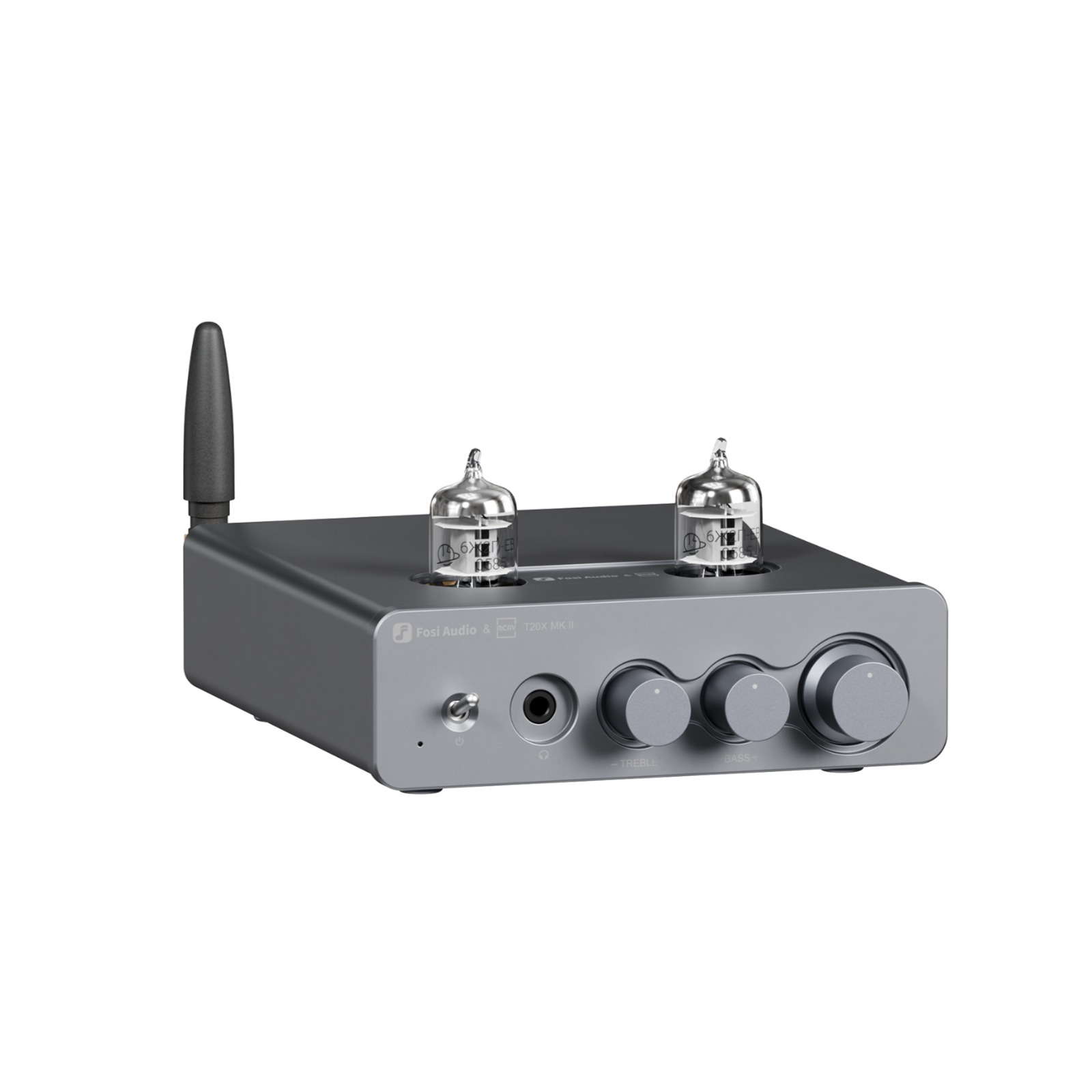

    The T20X MKII Bluetooth amplifier features the TI TPA3255 high-performance digital amplifier chip, delivering a maximum output power of 150W×2@4Ω with a signal-to-noise ratio (SNR) of ≥102dB and a frequency response of 20Hz-20kHz(±1.2dB). Equipped with the QCC3031 Bluetooth chip, it supports Bluetooth 5.1 lossless transmission with a range of ≥15m (barrier-free) and compatibility with multiple transmission formats such as SBC/AAC/aptX/aptX HD/aptX LL, ensuring stable and high-quality wireless audio transmission.
  • Classic Vacuum Tubes, Warm Sound Enjoyment
    Powered by Soviet 6Ж2П vacuum tubes, it delivers a unique warm and rich sound. The vacuum tubes feature a glass enclosure and precision internal structure, effectively enhancing the sound quality and depth, providing a true-to-life listening experience with HI-FI quality.
  • Convenient Bluetooth Connection, Stable Wireless Transmission

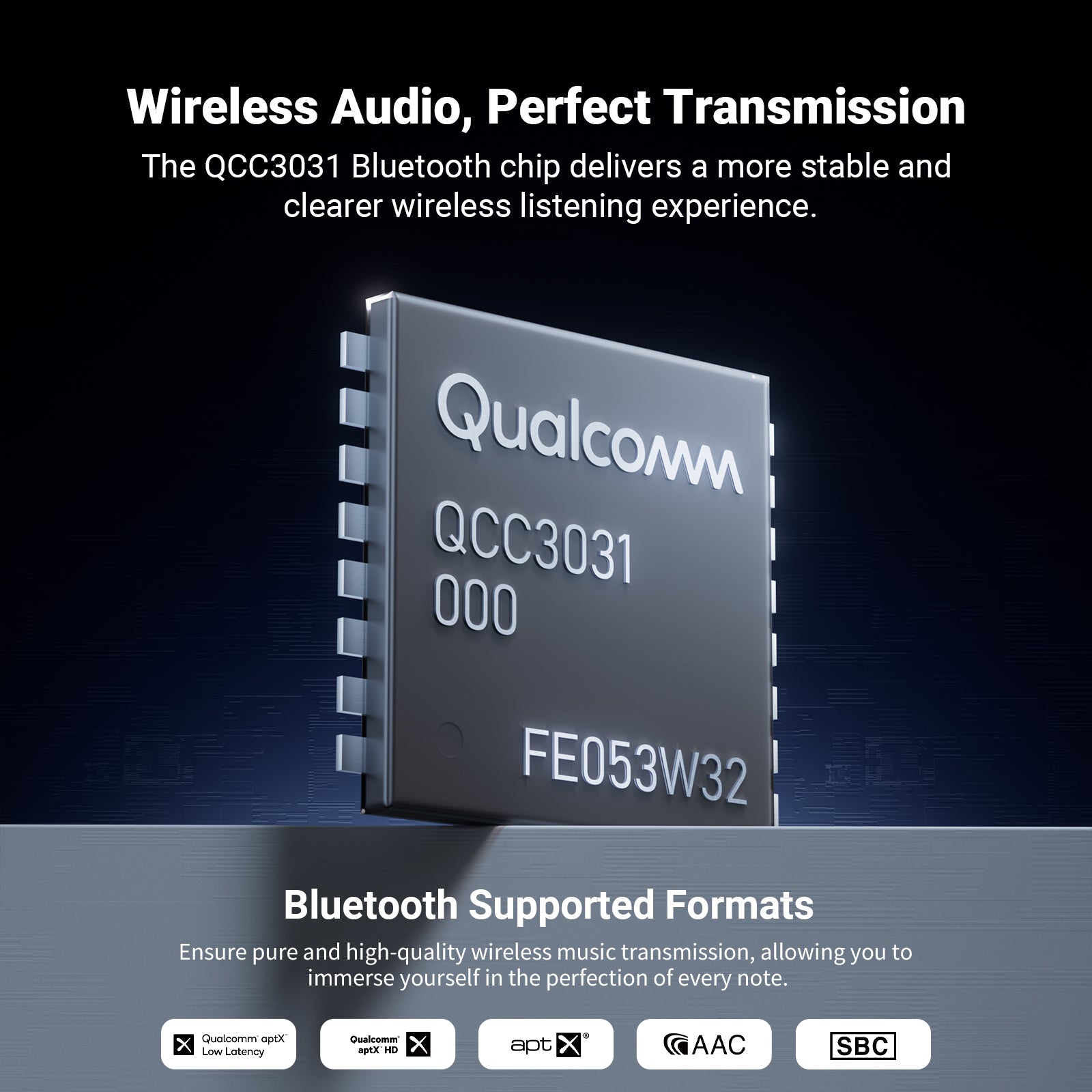

    Supporting Bluetooth 5.1 lossless transmission with ultra-low latency (≤50ms) and exceptional clarity, it ensures audio and video synchronization for a smooth and natural wireless listening experience. The QCC3031 Bluetooth chip offers superior connection stability, reducing signal interference and transmission loss to guarantee the integrity and accuracy of audio data.
  • Compact Design, Suitable for Various Scenarios

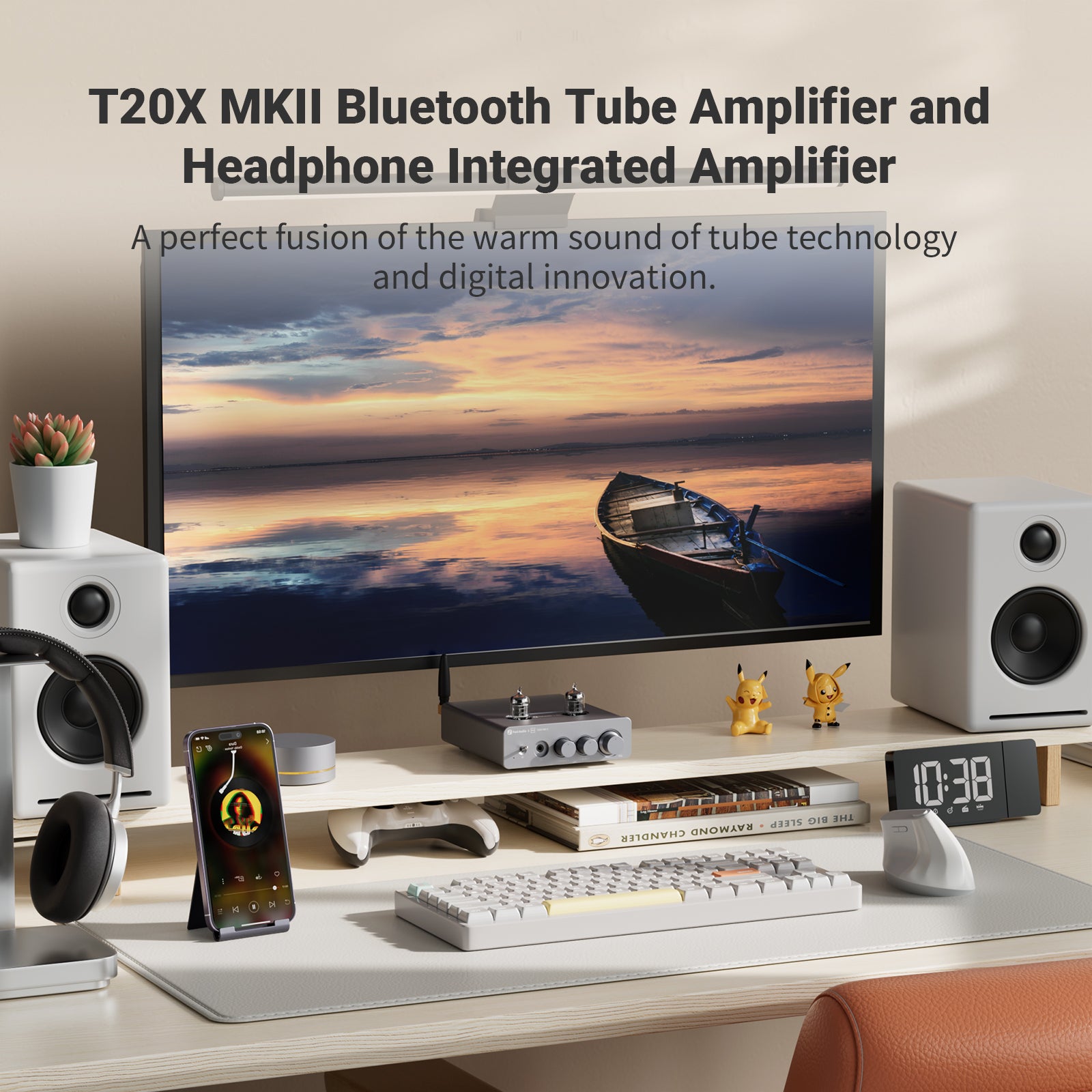

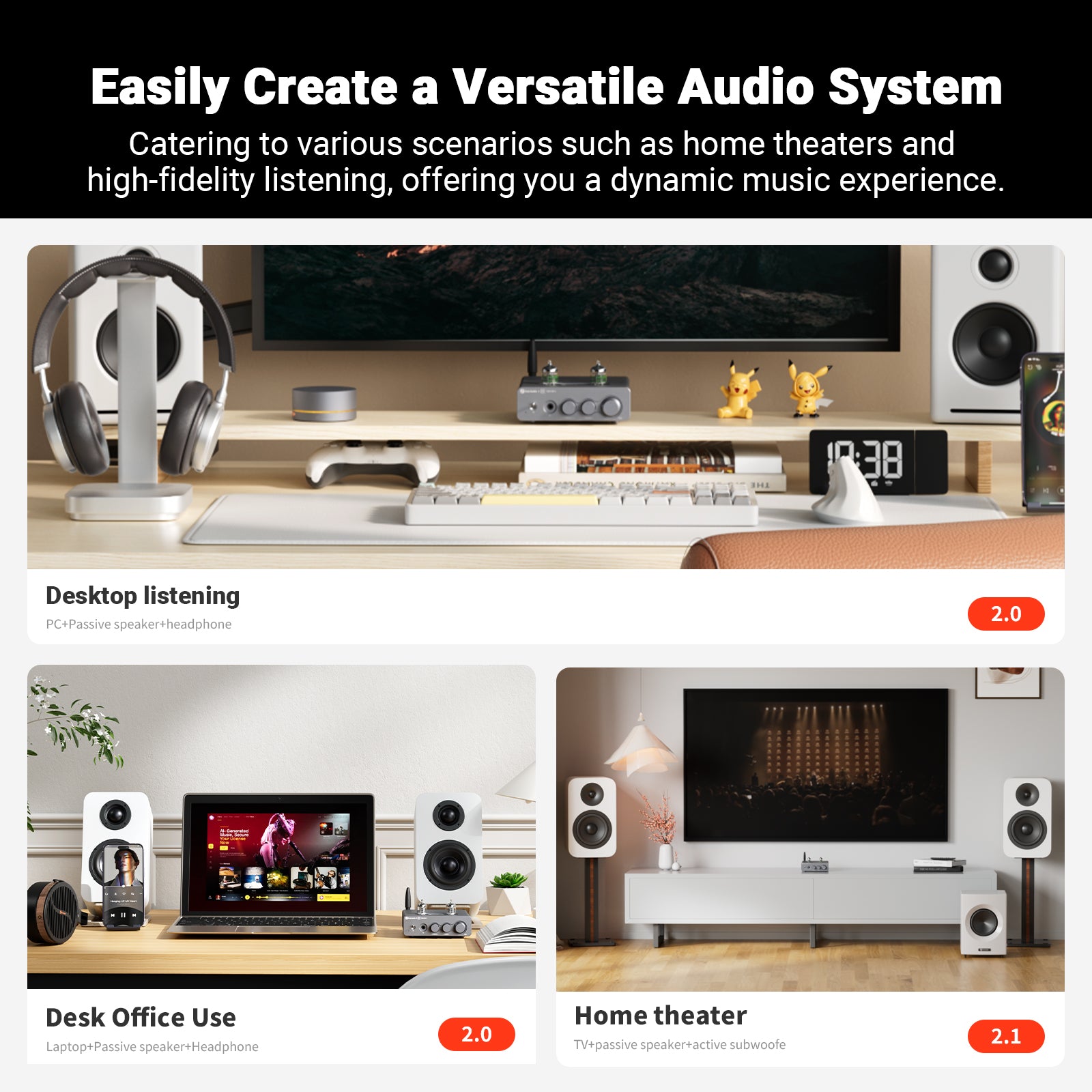

    With compact dimensions of 122×137×41mm and a weight of only 1060g, it is suitable for home use, desktops, and other scenarios. Its small size and powerful performance make it ideal for both home theater systems and desktop audio setups, providing high-quality audio support.
  • Versatile Interfaces, Flexible Connections and Expansion

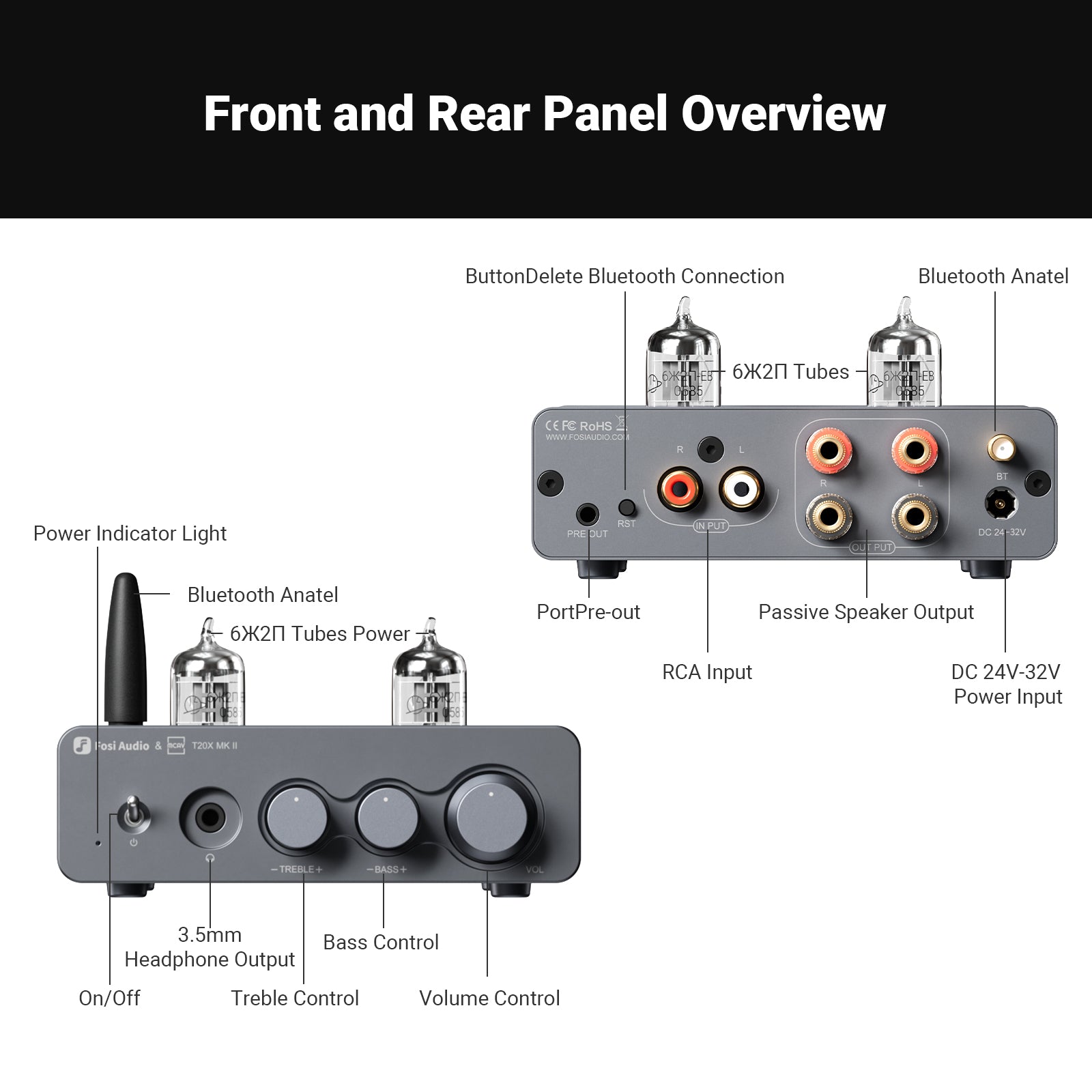

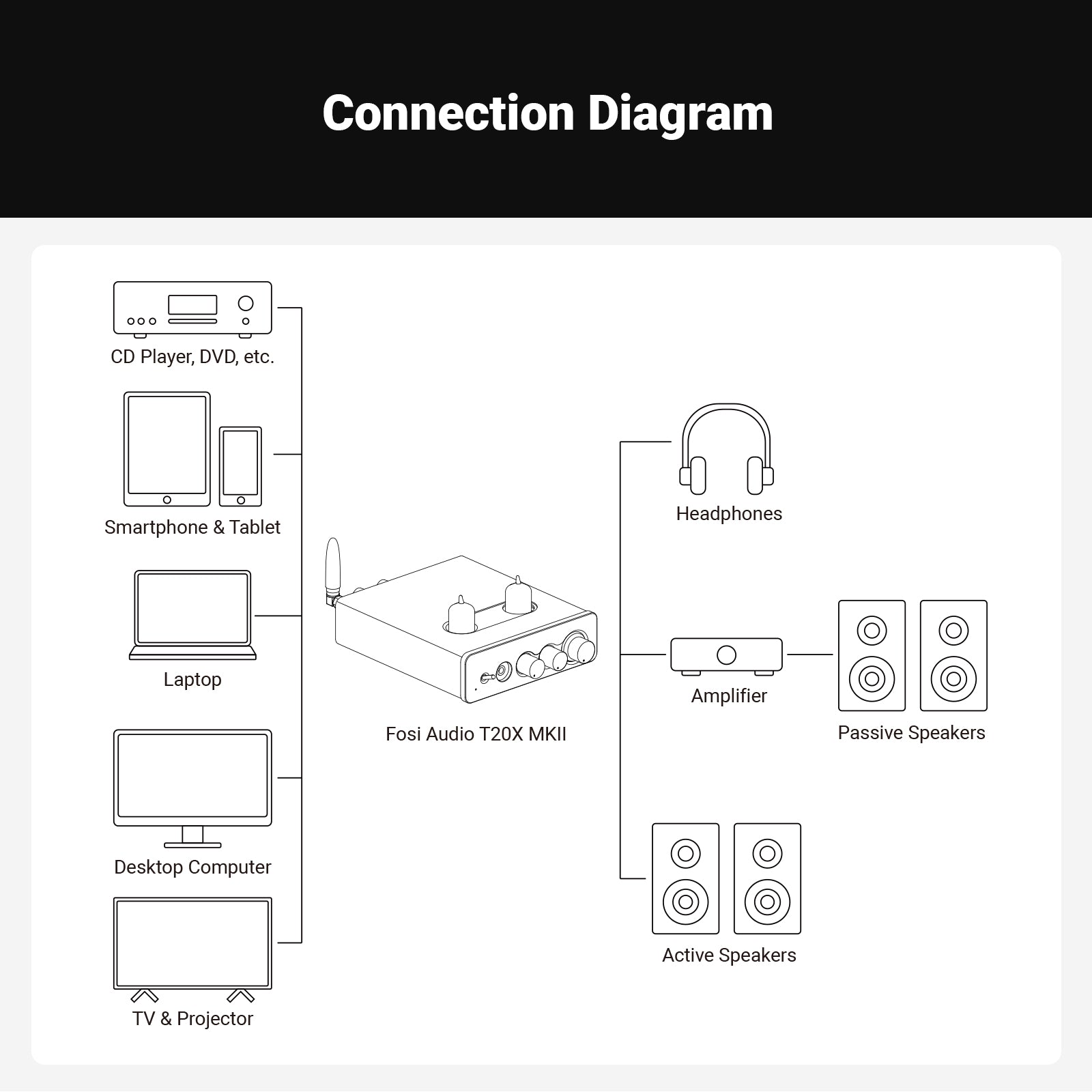

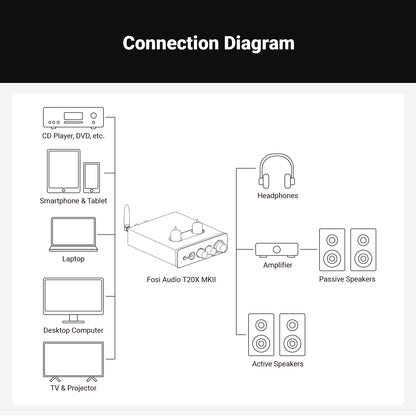

    It is equipped with a variety of input and output interfaces, including 1 Bluetooth input (QCC3031 chip), 1 RCA input, 1 passive speaker output (4-8Ω), 1 3.5mm headphone output, 1 pre-output (pre-out), and 1 power supply input (DC24-32V). This allows for compatibility with passive speakers, headphones, and other devices, meeting the needs of different music systems and enabling flexible system configuration.

Specifications:

  • Model: T20X MKII

  • Power Adapter: 32V/5A, DC Input Range: 24-32V

  • Headphones Output: 16-300Ohm

  • Terminating Impedance: 4 Ohm - 8 Ohm

  • MAX Power Output: 150W x 2

  • SNR ≥ 102dB

  • Amplifier Chip: TPA3255

  • Frequency Range: 20Hz - 20kHz (±1.2 dB)

  • Input Mode: Bluetooth and RCA

  • Bluetooth Chip: QCC3031

  • Bluetooth Version: 5.1

  • Bluetooth Range:≥15m (barrier-free)

  • Bluetooth Codecs: SBC/AAC/aptX/aptX HD/aptX LL

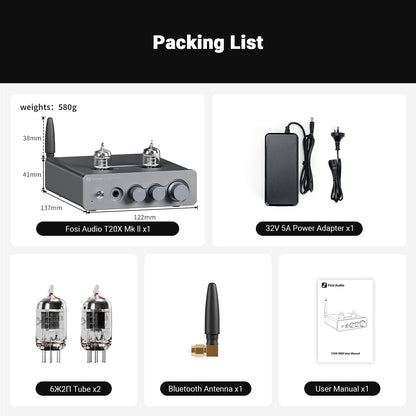

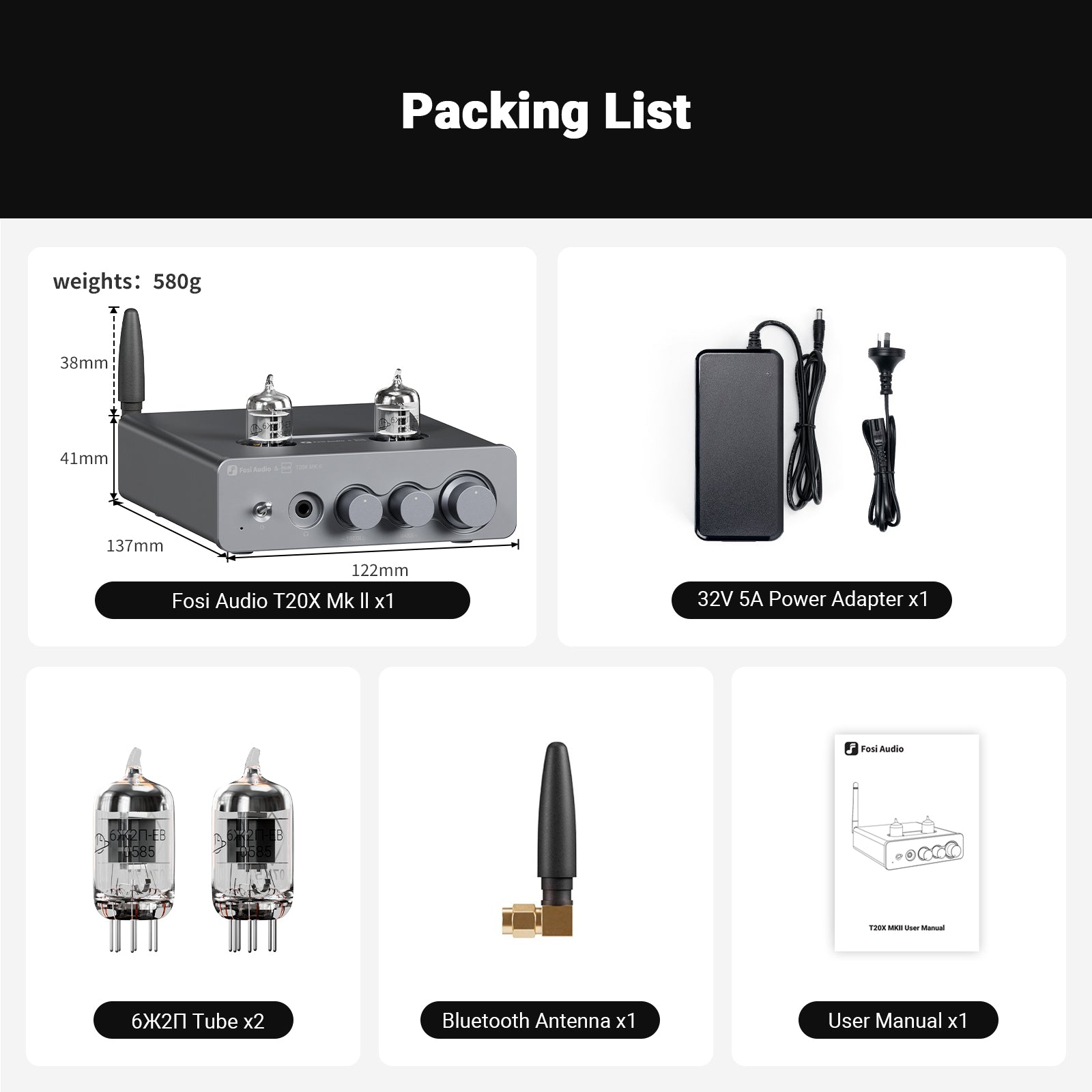

Package Include:

  • T20X MKII Amplifier x1
  • 32V 5A Power Supply x1
  • User Manual x1

FAQs

Please read our FAQs page to find out more.

How to: Choose the right banana plug?
  • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
  • Easy to wire up and solidly connect to amplifier and passive speaker.
  • If they do not fit, use a little force to tighten the plugs.
  • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
  • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
How to Diagnose Power Supply Failure?
  • The following situations may cause this issue
  • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
  • Possible solution
  • Check if the power supply is illuminated when plugged into AC by itself.

    Plug power supply into a different socket.

    Test the adapter with a meter.

    Try a different power supply (within a range of DC input).

    Test the included power supply on other electrical equipment.

    Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
What is a GaN?
  • The GaN supply has a power output of 240W.
  • Offers overload and over-temperature protection.
  • The 48V 5A GaN power supply is also available on Amazon.

Didn’t find your answer?

Don't hestitate to contact us

  • 5 stars: 12 (75%)
  • 4 stars: 4 (25%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
JAIME (Spain)
Nice design, but the quality of the valves is just adequate.

The design is wonderful, but I had to change the tubes because the sound was very dull and the treble was very poor. After changing to new tubes, the sound is now excellent for 30 euros.

D
Dane

It provides a quality that cannot come from a product as small as a palm. It's amazing that you can even hear the last lingering notes of a classical guitar.

A
Annabel

Really nice

Z
Zack

It's a sound that can satisfy you for less than 20,000 yen. Personally, I think the cost performance is excellent. I am mainly listening by switching from DAP priced at 5 to 7 thousand yen to Bluetooth. I'm not sure if it's the DAP or the amplifier side, but sometimes there are audio skips. Since it's a vacuum tube amplifier, if I listen for an hour, the body gets hot, so I switch to another amplifier for listening. (I am a little worried about heat dissipation even though I understand it from the beginning)

T
Tracie

I checked it on headphones and speakers.
Everything works. The package arrived quickly.

N
Nathanial

Very satisfied

F
Flavia

Among all the items I've bought, this is the one I like the most. There is no white noise at all, and it matches well with the bookshelf (mirrored) speaker... The packaging is also perfect, with no flaws. I will use it well.

B
Brittney

The delivery arrived well.

After using the product, I noticed some heat generation, so I contacted customer service. Thank you for the quick response.

The operating temperature of the amplifier is -5~85 ° It's called C.

They said they will follow up until the issue is resolved. The service is good.

It seems safe to use.

I really like the product. It is convenient to use.

I will use it well.

J
Jadan (Canada)

The t20x mk2 is great. It has a lot of power for the hard to drive headphones. Support got back to me in less than 24 hours too about a billing issue. Fosi is fantastic

H
Henry (United States)
Take two... get the 5654 tubes!

I wrote a less than stellar review (4 stars) for this little amp partially because of the sound. Once installed, the 5654 tubes bring the tone and sound stage to life. The Russian tubes supplied sound two-dimensional and the imaging was lost. Fosi should do us a favor and include the better tubes as an option at checkout. The website has conflicting information regarding tube substitution and the staff seemed unsure when asked (two totally different answers). Now, I love the amp's power and sound, it's a serious little beast.

H
Henry (United States)
More power, but no remote

I'm very happy with this amplifier as the 3255 chip provides plenty of power for my inefficient desktop speakers. The lesser-powered Fosi MC331 is still my favorite sounding, feature rich amplifier; however, it can lack power if your speakers are power hungry. A few more features would make the T20X MKII a clear winner. Investing in adequate DC power is essential no matter which amplifier is chosen. I successfully use the amplifier's 3.5mm pre-out to supply a signal to a Fosi sub amp.

B
Booker

The amp is ok but the 2 tubes are from different makers and different years... its not great for the sound quality, tubes should be paired

D
Dan

Worth every penny spent

B
Bryce

I recently received the item and am using it well.

However, after using it for a few hours, when I touch the case, it feels extremely hot.

I would like to know if this is normal or if it can be exchanged.

C
Clemente

Tested out and it works amazing

C
Charlie

**powerful and versatile home amplifier**



The fosi audio t20x mkii offers an impressive 300w of power with class d efficiency, complemented by the warmth of a vacuum tube stage. With bluetooth connectivity, it provides added convenience, making it an excellent choice for home theater or stereo speaker setups. Although compact, this amplifier is robust and drives speakers with clarity, delivering clear mids, punchy bass, and smooth highs. It offers great value as a versatile and powerful amplifier.
