Product details

  •  Hi-Fi Amp with Clean Sound Quality: Fosi Audio M03 subwoofer amp adopts the Instruments TPA3255D2 chip, High Efficient Power Output Up to 200Watt, providing 150 watts RMS into 4-ohm loads or 120watts to 8-ohm loads. Great amplifier to driver any bookshelf speaker or subwoofer;

  • Subwoofer amplifier and Full-Frequency Mono Amp: Switch to PBTL, it's a Full-Frequency Mono amp for driving passive speakers and powered subwoofer. Switch to SUB, it's a subwoofer amplifier for diving passive and powered subwoofers;

  • Mini Compact but Powerful: Built-in low pass filter for 20-300Hz subwoofers with SUB frequency control, small simple compact design but practical and powerful;

  • Home Hi-Fi amplifier: Exclusively designed for the customers who pursue HiFi sound; MAX Power Output:200Watt. Note: The package comes with a 32V/5A power supply, you need a more powerful power supply to get the MAX power output;

Subwoofer Amplifier 200 Watt Mini Mono Audio Amp Full-Frequency and Sub Bass Switchable Amplifier One Channel Home Theater Single Power Subwoofer Amp Fosi Audio M03
Subwoofer Amplifier 200 Watt Mini Mono Audio Amp Full-Frequency and Sub Bass Switchable Amplifier One Channel Home Theater Single Power Subwoofer Amp Fosi Audio M03



    Specifications

    Specifications Details
    Model M03
    RMS Power Output: RMS 200watt at 4ohm, RMS 100watt at 8ohm
    Terminating Impedance 4-8Ω
    Input Sensitivity ≤ 0.2mV
    Full Frequency Response Range 20Hz-20KHz(± 3db)
    Bass Frequency Range 20-200Hz
    THD ≤0.03%
    SNR ≥ 106dB
    DC Input Range 24-48V
    Power Supply 32V 5A


    What‘s in the box?

    Item Quantity
    Fosi Audio M03 Amplifier x 1
    32V 5A Power Adaptor x 1
    User’s Manual x 1


      Compare with similar items

      FAQs

      Please read our FAQs page to find out more.

      How to: Choose the right banana plug?
      • Closed Screw Type. All Fosi amplifiers use standard-sized speaker terminals (4mm pins).
      • Easy to wire up and solidly connect to amplifier and passive speaker.
      • If they do not fit, use a little force to tighten the plugs.
      • Fosi Audio Banana Plugs (Copper, Silver/Gold Plated): http://bit.ly/40Djq0U, https://bit.ly/3MkPL8t
      • Please watch tutorial videos: https://youtu.be/6pYhoqDlvNw / https://youtu.be/RGvBgGAwS9k
      How to Diagnose Power Supply Failure?
      • The following situations may cause this issue
      • Case 1: The LED on the power supply does not light up; Case 2: Amp/Preamp does not turn on; Case 3: When plugged into the Amp, both light on the amp & power supply start blinking; Case 4: Amp/Preamp make noise; Case 5: Sound shuts off by itself
      • Possible solution
      • Check if the power supply is illuminated when plugged into AC by itself.

        Plug power supply into a different socket.

        Test the adapter with a meter.

        Try a different power supply (within a range of DC input).

        Test the included power supply on other electrical equipment.

        Please watch the tutorial video by clicking on the link provided. https://youtu.be/yCjygS03zTE
      What is a GaN?
      • The GaN supply has a power output of 240W.
      • Offers overload and over-temperature protection.
      • The 48V 5A GaN power supply is also available on Amazon.

      Didn’t find your answer?

      Don't hestitate to contact us

      • 5 stars: 15 (79%)
      • 4 stars: 2 (11%)
      • 3 stars: 1 (5%)
      • 2 stars: 1 (5%)
      • 1 star: 0 (0%)
      p
      piodoestech
      Not a bad amp - but horrible customer support

      Bought this amp 4 years ago, and the junk 32v / 5a Power Supply has been going out for almost a year now (it was NEVER a very good power supply). Contact Fosi Audio for support, and their advice was to buy another amp. So that's exactly what I'm going to do, from another manufacturer that'll actually support their products. I was just simply asking what power supply I could replace it with that's not going to fry the thing.

      WHEN THE AMP WORKS, it works fine. It never did do rated power though. Left it an extra star for the roughly 3 years I was able to enjoy it at low volume.

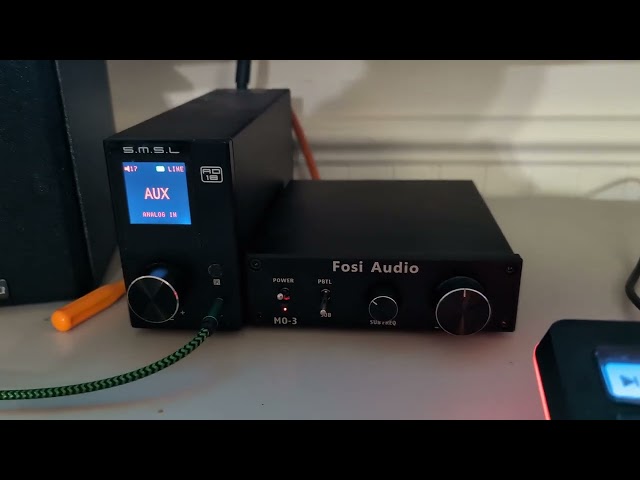

      Judge.me YouTube video placeholder
      A
      Anonymous (United States)
      Nice and sweet

      Nice amp, small size and with simple yet powerful features. For your sub this does the job well, and is a product that works.

      I just wished they included and option to buy with a more powerful power supply.

      T
      Tony (United States)
      Great subwoofer amp

      Works great for my set up!

      J
      John (United States)
      Simple and perfect

      I purchased this to replace the blown amp in a JBL B212 ultra base. The original amp was 75W and it was driving a 12" replacement speaker. I attached this to a speaker output on a Marantz 2216 and couldn't be happier with the results. The frequency cutoff adjustment is awesome and so is the volume adjustment which allows you to bend it perfectly with the L212 tower speakers accompanying it. My only recommendation for improvement is labeling the frequency cutoff range on the dial to know roughly where it's set.

      C
      Christopher (New Zealand)
      Best kept secret in Hifi audio? Quite possibly!

      Wow! What an amp! This thing is going to change your life - and for the better. Because only a fool grovels on the dusty floor with a flashlight and a bad attitude, to change the settings on their subwoofer.

      Having fingertip control of both SUBFREQ and SUBVOL opens up a whole new world of Hifi listening pleasure! Now you can change how hard your system bumps according to your mood and your music. Now you can have low volume music with full bass - JUST AS OUR LORD FOSI INTENDED!

      And, the versatility of this tiny amp is tremendous: it can be used to drive defunct powered subwoofers, simply by bypassing the blown up subwoofer amp! This means, you can now buy blown up subwoofers at $40 or $50 each, and with the money you save, you can easily afford to buy this unit - which now comes as standard with the 48v 5A PSU - which you will be wanting!

      On top of the speaker outlets for the passive subwoofer, you can also attach a powered sub to the subwoofer pre-amp output of the amplifier, and so you get double value by driving two subwoofers for the price of just one amp, and you get to control both with the same unit!

      This gives you even MORE control, over your bass, and allows you to place a subwoofer directly underneath each front speaker, and both subs are putting out the same (mono) signal, so there is little chance of stereo bass interfering with each speaker's output. Turns out that 2.2 is superior to 2.1 systems!

      Chat-GPT will help you properly locate and tune your subwoofer(s) to ensure you are getting the best out of them - and it will also guide you through the process of mass-damping and isolating your subwoofers, to greatly improve their performance, without spending more than $10 per subwoofer.

      If I could make some small changes to this amp, or provide feedback for the upcoming "M03 Pro mono subwoofer amp" then it would have a Trigger In on the back, and a Phase potentiometer on the front of the unit, and each knob would have a scale around it: Degrees on the Phase, Hz on the SUBFREQ and 0-11 (of course!) on the Volume knob.

      Lastly, this amp would sell a lot better if it were presented in the same form factor as the ZA3 and ZD3 which look amazing.

      I have ordered my second M03 already, and I am accumulating blown up subwoofers to create incredibly good Class-D 2.1 and 2.2 systems for myself, my friends, and my family, who are all blown away by the truly baffling quality of Fosi's Class-D products.

      S
      SHIVA (India)
      PERFECT SUBWOOFER APM FOR MY 180W PASSIVE SUBWOOFER

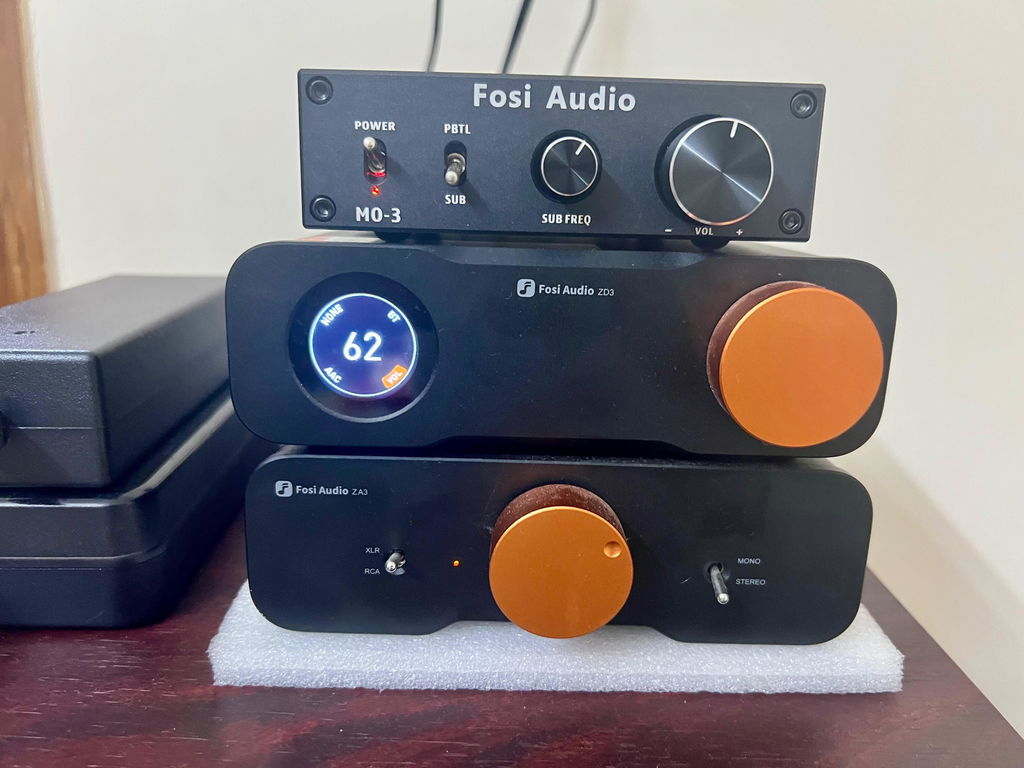

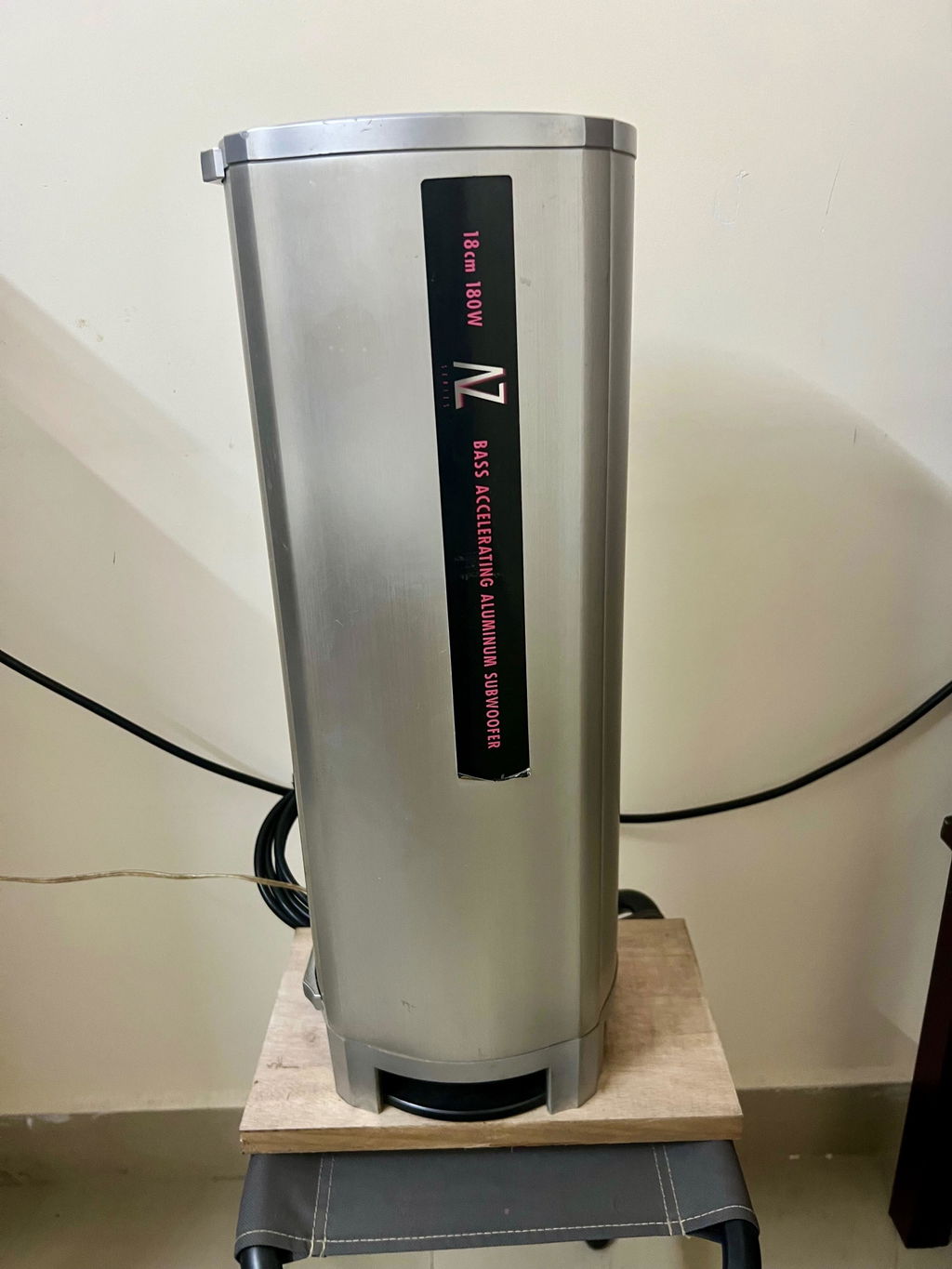

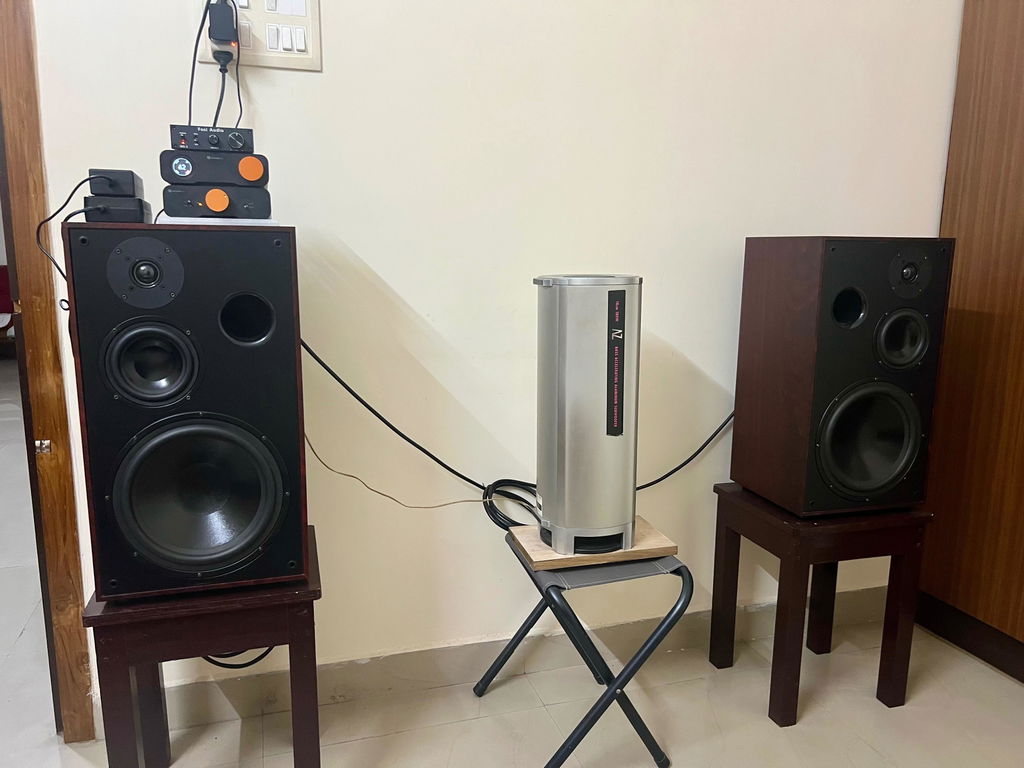

      This subwoofer amp has brougth life to my 2005 vintage Sony make 180watt passive subwoofer . I am using M0-3 Amp as Subwoofer amp. Connected from subwoofer output of ZA-3 AMP . This setup is working absolutely fine. I am happy with this setup.

      S
      Sean (United States)
      Big performance in a little box

      Just got this unit and wow. I didn't expect such power from such a small device. I ordered the M03 because the amp in my powered Klipsch 12" sub would clip with very little gain. I knew I had to do something and this little amp came to the rescue. I've tested this unit with high gain and my sub has never played with such intensity that I can remember. So far 5 stars and I hope it stays there with long usage.

      A
      Anonymous (Malaysia)
      Fosi Audio M03 Subwoofer Mono Amplifier

      I hooked the M)3 amp to the ZP3 preamp to drive my spare Rockford Fosgate P3SDH10 subwoofer which I took out from my old car. I was able to adjust the crossover and the bass blends well with my Sonus Faber Sonetto G1 Speakers. Happy with the improved bass extension

      M
      Mike (Canada)
      Sub amp

      Nice unit, works well, even drives a 2ohm load.

      J
      Jake (United States)
      Decent but limited amp.

      Works well enough for my 15" sub (150W RMS, 8 ohms), but the fact that it comes underpowered from the factory and I have to buy a new power supply and can't just choose which one I want (priced accordingly, even!) feels like a deliberate gouge from Fosi.

      L
      Lucijan

      Its an amazing subwoofer amplifier, works perfectly fine and also looks pretty nice!

      S
      Soureysen (Mauritius)
      Great Value!

      Great value amp. Doesn't sound as nice for a main speaker but great for a low power subwoofer. It has all the right features for that price point. Love it

      R
      Rick (United States)
      It works

      Good product, prompt shipment. Excellent tech support.

      C
      Cory
      Excellent small powerful sub amp

      I have an older Infinity 12" powered sub that it's internal amplifier stopped working. This little Fosi amp I am now using to replace the broken one. Sound and output of the sub is a great pairing for this sub and reasonable cost compared to a new plate amp. I was suprised how well it controlls the 12" sub with no distortion at typical listening levels.

      C
      Charlie (United States)
      Great replacement for failed plate amp

      When the plate amp went out on my old JBL E250P subwoofer (12" ported) I first considered a new Express Parts plate amp, but that would have required major butchery of the cabinet. Then I found out about mini-amps and read great things about Fosi. I was skeptical that a small amp could power a fairly large subwoofer. But after looking at the Fosi web cite I decided to give the M03 a shot. When I played the opening couple minutes of Oppeheimer (bomb blast) I knew I had made the right choice. The walls shook and I had goose bumps. My only nit--I wish the little amp had auto turn on and timed turn off.

      p
      peter (Australia)
      quite the surprise!

      Wasn't sure what to expect with this little amp, but it really surprised. Using it to power a 8in Yamaha 6ohm passive sub, it put out impressive base that was really well controlled. The crossover worked a treat and I used the volume to set a 'master' gain for the sub as the Fosi ZA3 commanded the system volume.
      Overall this was a surprise package in a small system. Driving an 18" in a club maybe not, but in a moderate room with a reasonable passive sub really really good, clean tight base at impressive volumes!
      Really my only quibble is the form factor, its really tight for realestate on the back, my interconnects were large (overkill for the set up) and the speaker binding posts are small, I used banana plugs as my stub fingers would struggle to get wires in there!
      (note: I have not used this amp in a full range configuration)

      J
      J.C. (New Zealand)
      Great little amp

      Sounds great in sub and full frequency range. Amp sounds clean and is barely warm when running at medium to high power, I am thoroughly impressed.

      The power for the size is unbelievable, it is compact but still has enough power to blow most bookshelf speakers. Amp feels solid and well-built with metal knobs. The speaker terminals accept banna plugs and speaker wire which is a nice touch.

      One thing to note is that the low pass filter has quite a shallow roll off and you can still hear the muddy lower end of vocals even when set to the lowest setting, I don't find this an issue but just something to be aware of.

      j
      james (United States)
      Happy owner

      dead quiet, cannot hear any distortion, runs cool, ~ideal.

      I
      Istvan (United States)
      Nice little subwoofer amp

      I replaced an Audiosource plate amp with this. The Audisource specs claim 130 watts in bridged mode but my passive subwoofer sounds much better with the M03 despite of the 200W rating being wishful thiunking, esp. with
      the power brick it ships with. Consider this amp disposable if you end po not liking it. In that case, you have to pay return shipping to China, which is probably more than the price of the AMP. That is, if you can even get a hold of anybody at Fosi, whihc is , IMO a long shot. i wrote to support complaining about the super-optimistic power rating, nobody ever got back to me, In any case, i actually like the product, it works well for my application. I wish Fosi had some power supply options at the checkout, similar to how they sell the V3. If fthey had a 200W (useable) RMS version, now that woudl be an awesome product
