One channel is louder than the other?

Make sure the balance knob is centered on the ZP3 and the input signal is balanced between the two channels.

What is the function of the Bypass switch?

It toggles tone control on/off. Slide up to bypass bass/treble; slide down to enable them. It doesn’t affect volume.

Can I switch between RCA and XLR output?

No. RCA and XLR outputs work at the same time and cannot be switched independently.

What is the function of the HPF adjustment?

It filters low frequencies, letting highs pass. The ZP3 offers 3 cutoff settings for different output frequency ranges.

Why is there no bass or the bass sounds weak?

Check if the HPF switch on the bottom is set to 20Hz–20kHz to avoid filtering out low frequencies. Also check if the bass knob is set too low.

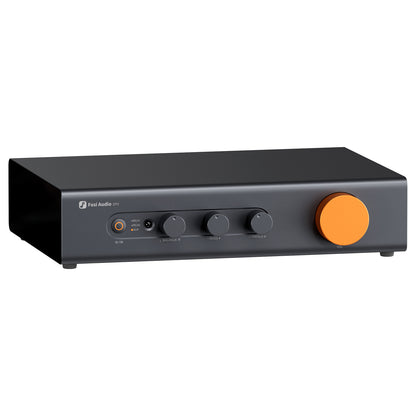

Fosi Audio ZP3 Preamplifier - Fosi Audio

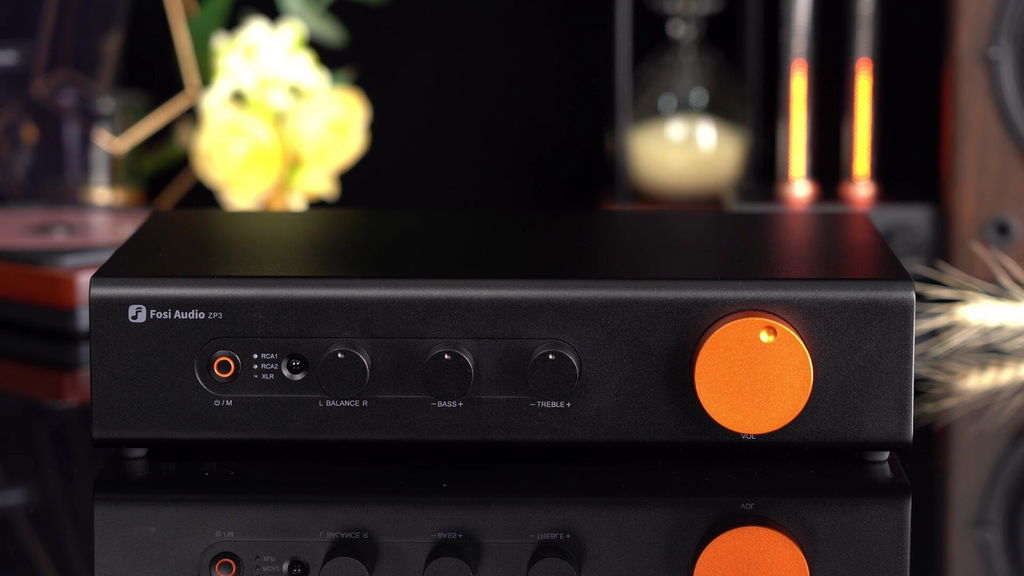

Fosi Audio ZP3 Preamplifier

$199.99

78 total reviews

Features

Triple Source Inputs: 3 In / 3 Out
HPF Adjustment
12V Trigger In/Out
Perfect combination with ZD3 and ZA3

Shipping to: US

Product variants

Need help?

Pairs well with

Fast, Free Shipping!

24 Months Warranty

30-Day Money-Back Guarantee

Lifetime Customer Support

Fosi Audio ZP3 Preamplifier

$199.99

Review Videos

Audiophile Secret: Fosi Audio ZP3 Pre Amp Review

Tharbamar

Finally Getting What We Asked For!

Matt Coykendall

The "Almost Great" Fosi ZP3 Sub-Out Pre-Amp

Z Reviews

The Pre-Amp We All NEED! ZP3 Here!

UTILITARIAN TV

The Greatest Shift in Hifi is Happening! Good or Bad?

cheapaudioman

FOSI AUDIO ZP3 Balanced Preamplifier

Fred & Sound

Audiophile Secret: Fosi Audio ZP3 Pre Amp Review

Tharbamar

Finally Getting What We Asked For!

Matt Coykendall

The "Almost Great" Fosi ZP3 Sub-Out Pre-Amp

Z Reviews

The Pre-Amp We All NEED! ZP3 Here!

UTILITARIAN TV

The Greatest Shift in Hifi is Happening! Good or Bad?

cheapaudioman

FOSI AUDIO ZP3 Balanced Preamplifier

Fred & Sound

Built on User Voices

The ZP3 Balanced Preamp was developed in response to user demand for a preamplifier with multiple audio inputs.

Input: RCA x2 and XLR
Output: RCA, XLR, SUB
SNR≥ 115dB; SINAD≥113dB; Crosstalk≤ -130dB
Input Voltage Range: AC 110-240V

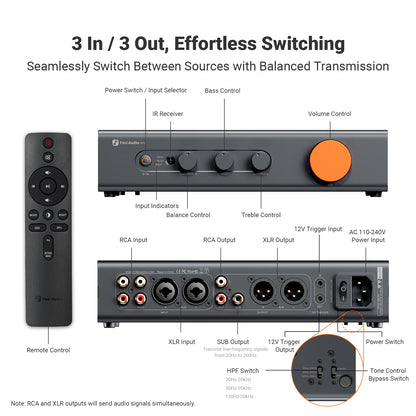

A Versatile Control Hub for Home Audio Systems

Easily connect 3 audio sources and switch inputs instantly and volume adjustment with the remote.

Effortless Switching

3-in-3-out options make it easy to connect multiple audio sources for flexible listening experience.

Three levels of HPF high-pass filter adjustment

Adapts to diverse audio scenarios by switching between different cut-off frequencies.

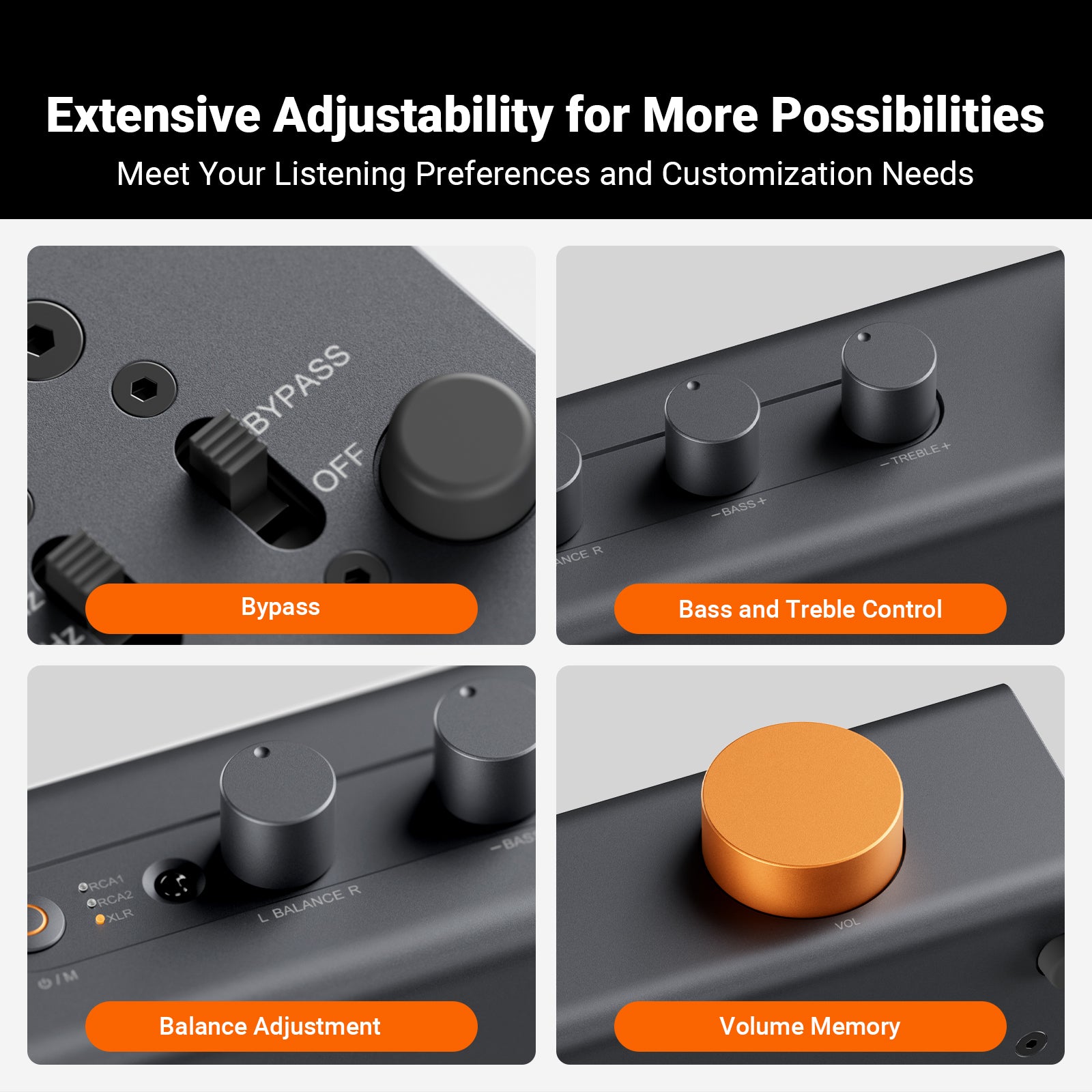

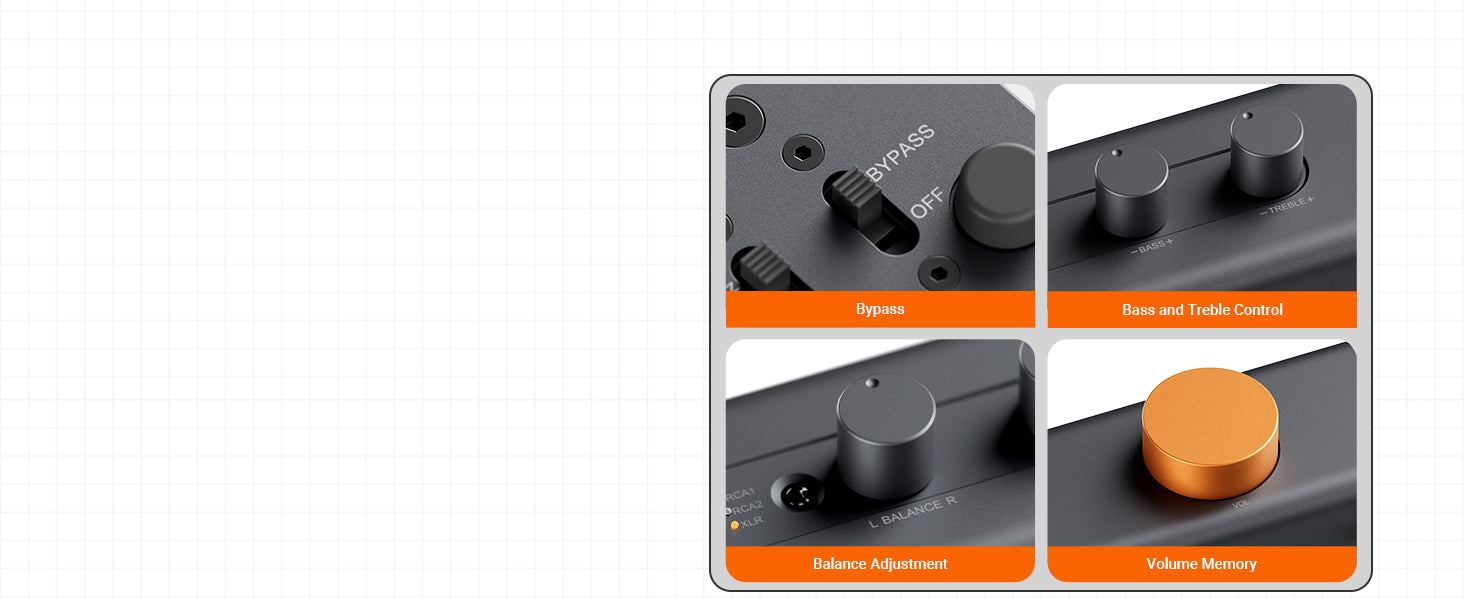

Flexible Sound Customization

Bass/treble bypass, L/R balance. Per-input volume memory for smarter, personalized audio.

Audiophile-Grade Components Integrated

No compromise on materials, ensures low noise and accurate sound for a premium audio experience.

Visible Exceptional Performance

No longer abstract, the excellence of sound quality is now visible.

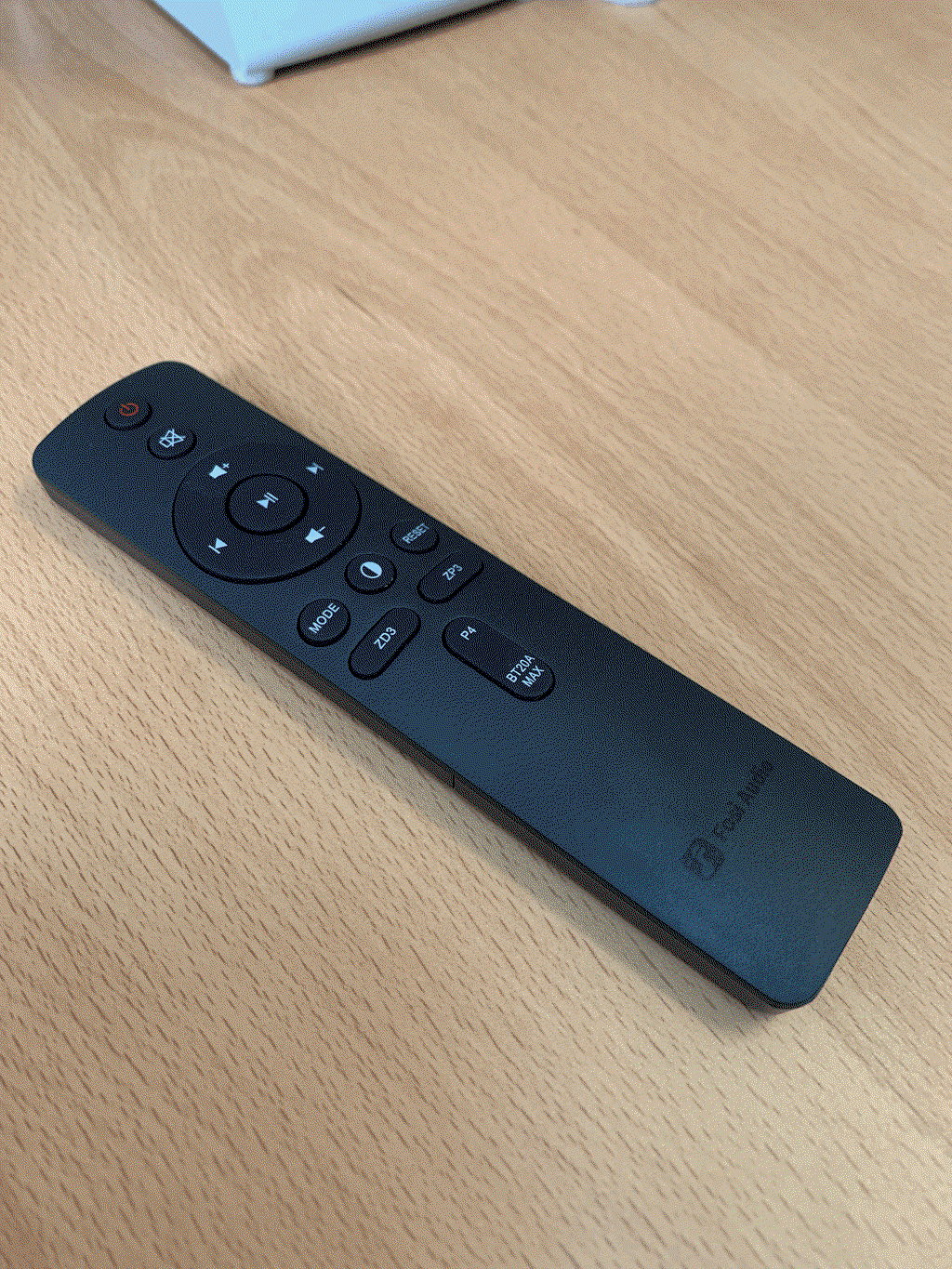

Multi-Function IR Control

Easily adjust the volume, switch sources, and control the power on/off without leaving your seat.

Aluminum-Alloy

Metallic texture, with enhanced resistance to electromagnetic interference.

ZP3 & P4 Comparison

Thinking about a new preamp? Let’s line up P4 and ZP3, and see what makes each one special.

Product details

Description

Home Audio Control Hub: Features 3-in-3-out options for connecting up to three audio sources. Includes a remote control for one-touch input switching and volume adjustment—making it easy to manage your home audio system with freedom
Versatile Connectivity: Equipped with RCA1/RCA2/XLR inputs and RCA/XLR/Sub-Out outputs, the ZP3 integrates multiple devices with ease. Supports balanced XLR in/out for cleaner sound, plus RCA/XLR signal conversion for maximum compatibility
Audiophile-Grade Components: Built with premium parts including ELNA capacitors, NJR NJU72315 volume IC, and gold-plated RCA jacks. These components reduce noise and distortion, delivering exceptional clarity and high-fidelity performance
Adjustable High-Pass Filter: Three-level HPF settings filter low-frequency signals from the RCA/XLR outputs, sending only mids and highs to main speakers while routing bass through the SUB-OUT—enhancing clarity, detail, and overall sound balance
Flexible Sound Customization: Includes bass/treble control with bypass function, and L/R balance knobs for personalized adjustment. Volume memory remembers settings for each input source—giving you a smarter, more convenient audio experience tailored to your taste

Specifications

Channel: 2.0
Input: RCA x2, XLR
Output: RCA, XLR, SUB
Bass and Treble Control Range: Treble: ±6dB，Bass: ±12dB
Frequency Response
XLR/RCA:
20Hz-20kHz (±0.2dB)
80Hz-20kHz (±0.2dB)
120Hz-20kHz (±0.2dB)
SUB: 20Hz-200Hz (±0.2dB)
Input Voltage Range: AC 110-240V

Balanced Output (XLR)
SNR: ≥ 112 dB
Dynamic Range: ≥ 112 dB
THD+N: ≤ 0.0007%
Noise Floor: ≤ 6μV

Single-Ended Output (RCA)
SNR: ≥ 115 dB
Dynamic Range: ≥ 115 dB
THD+N: ≤ 0.0008%
Noise Floor: ≤ 4μV

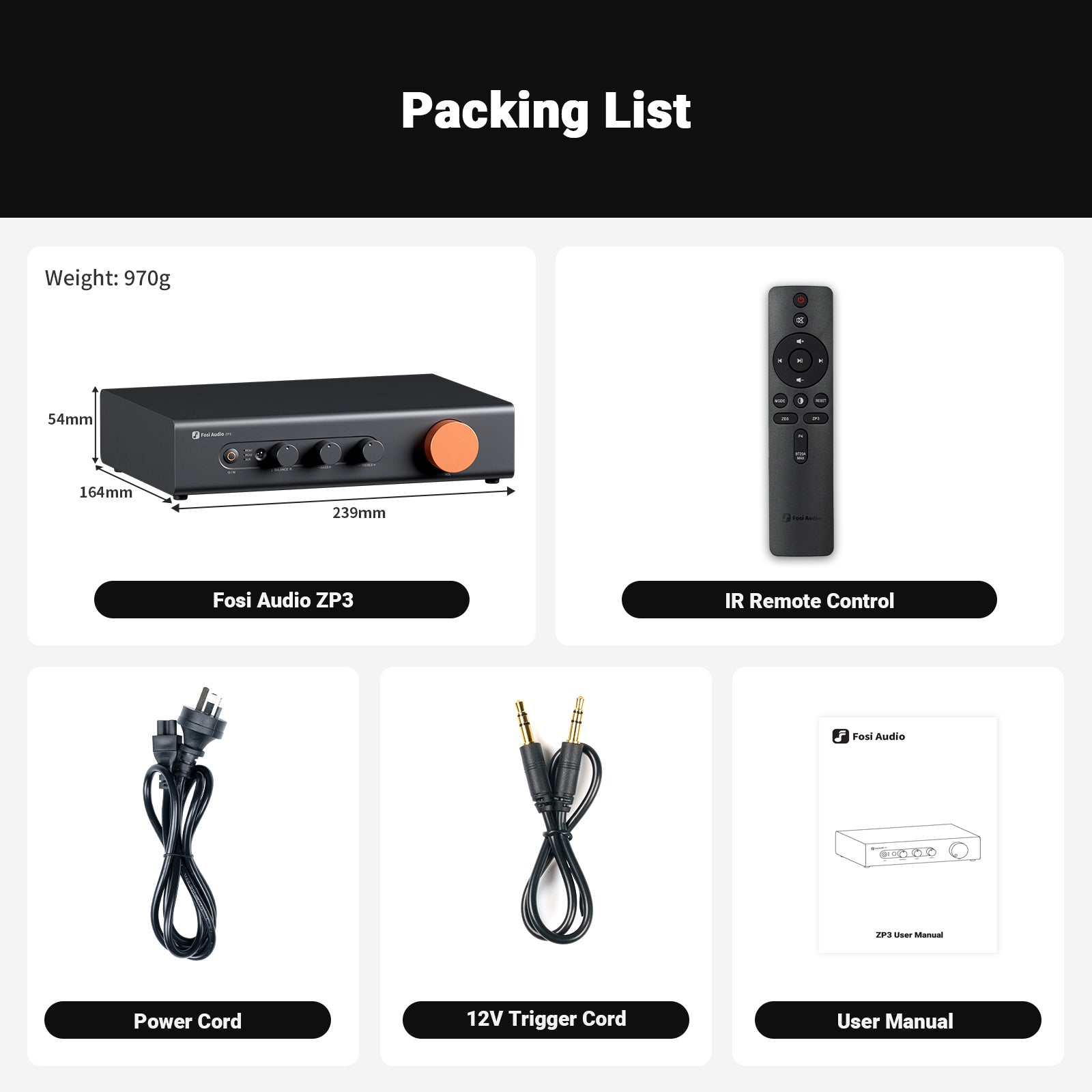

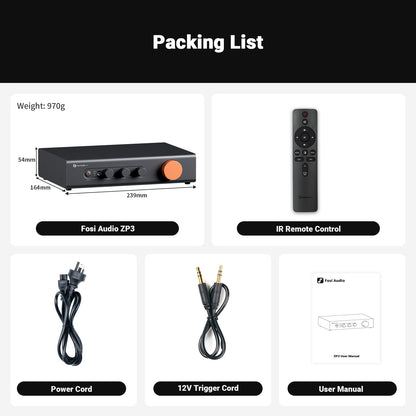

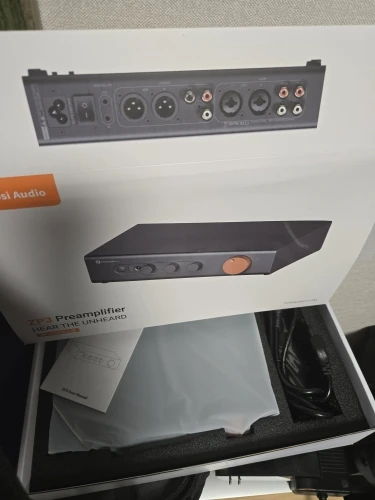

What‘s in the box？

Fosi Audio ZP3 x 1
IR Remote Control x 1
AC 110-240V Power Cord x 1
12V Trigger Cable x 1
User Manual x 1

Which Product is right for you?

Compare products to find the best one for your needs.

From $199.99

Fosi Audio ZP3 Preamplifier

Learn more

Type

Preamp

Input

RCA x2, XLR

Output

RCA, XLR, Sub-Out

Bass & Treble Control

Yes

THD+N

≤ 0.0007%

SNR

≥ 115 dB

From $99.99

Fosi Audio P4 Mini Preamplifier

Learn more

Type

Preamp

Input

RCA x3

Output

RCA, Pre-Out

Bass & Treble Control

Yes

THD+N

≤ 0.003%

SNR

≥110dB

From $79.99

Fosi Audio P3 Tube Preamplifier

Learn more

Type

Preamp+Headphone Amp

Input

Bluetooth, RCA

Output

RCA, 3.5mm Headphone Jack, AUX

Bass & Treble Control

Yes

THD+N

≤0.02%

SNR

≥103dB

From $199.99

Fosi Audio ZP3 Preamplifier

Learn more

Type

Preamp

Input

RCA x2, XLR

Output

RCA, XLR, Sub-Out

Bass & Treble Control

Yes

THD+N

≤ 0.0007%

SNR

≥ 115 dB

From $99.99

Fosi Audio P4 Mini Preamplifier

Learn more

Type

Preamp

Input

RCA x3

Output

RCA, Pre-Out

Bass & Treble Control

Yes

THD+N

≤ 0.003%

SNR

≥110dB

From $79.99

Fosi Audio P3 Tube Preamplifier

Learn more

Type

Preamp+Headphone Amp

Input

Bluetooth, RCA

Output

RCA, 3.5mm Headphone Jack, AUX

Bass & Treble Control

Yes

THD+N

≤0.02%

SNR

≥103dB

5 stars: 63 (81%)
4 stars: 13 (17%)
3 stars: 1 (1%)
2 stars: 0 (0%)
1 star: 1 (1%)

A Gem, Op-AMPs rolling

For those audiophile, if you plan to use the Dual Staccato op-amp
it does not work with the ZP3.

Amazing

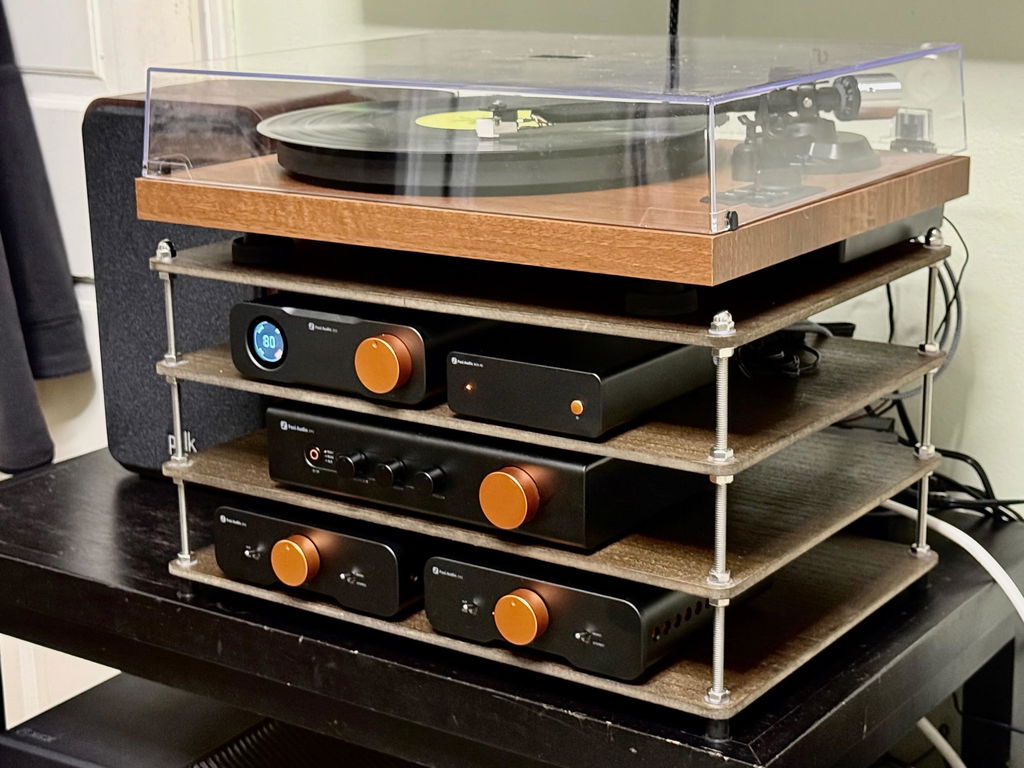

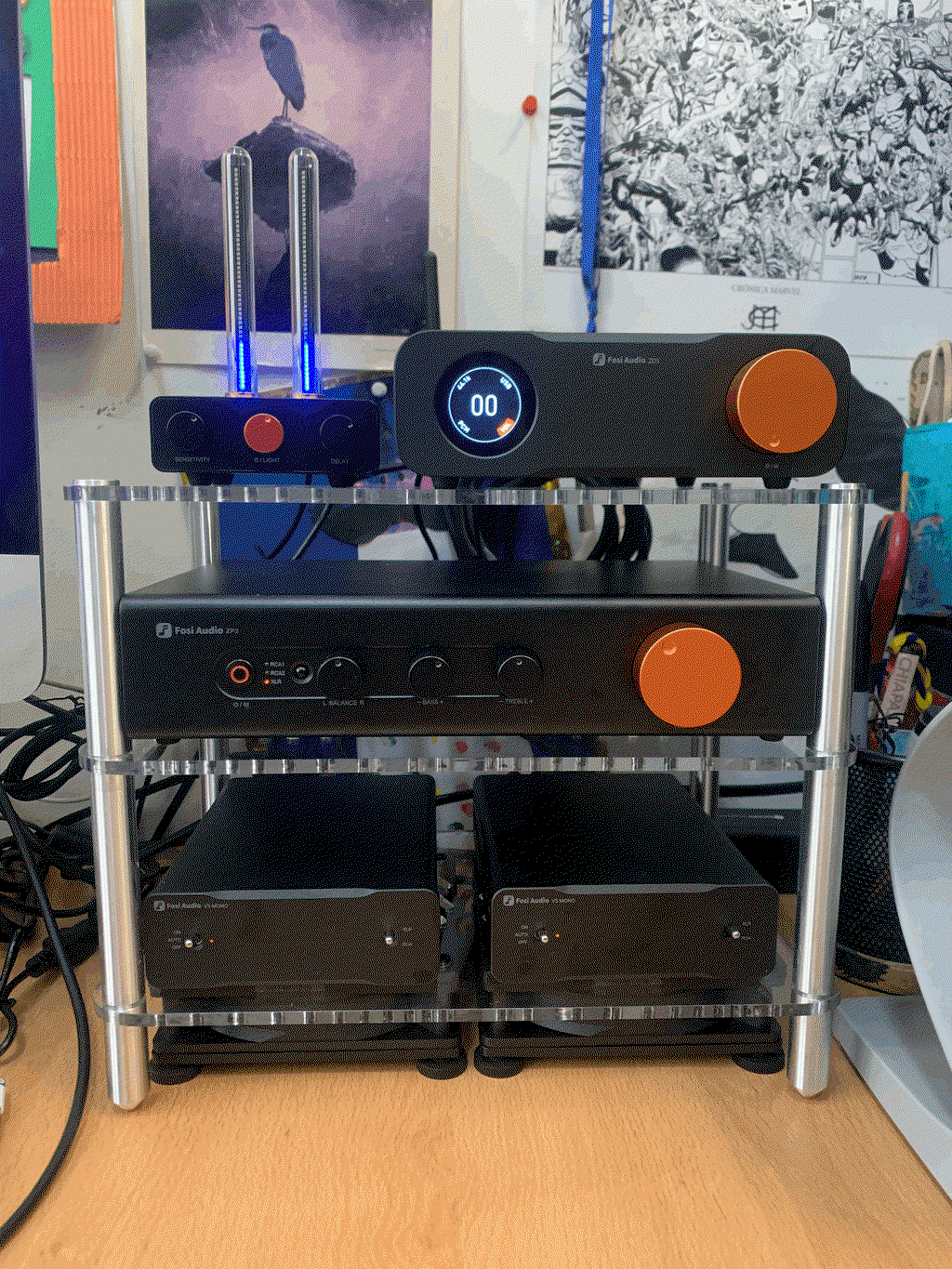

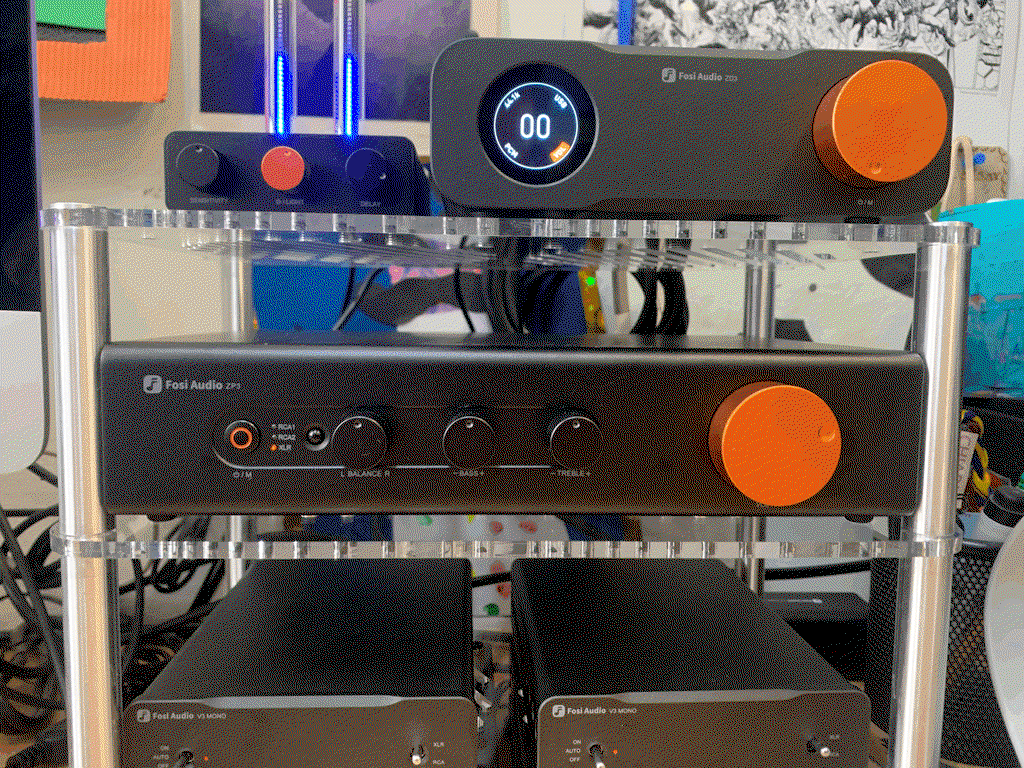

Running the ZH3 DAC into the ZP3 followed by dual ZA3’s in mono, Polk ES15’s and a Dayton powered sub. XLR connections and 12v switching. The sound is insane. Stick with neutral speakers like Polk, and you will hear music in your home in a way you likely have not before.

Un upgrade necessario

Ho acquistato il FOSI Audio ZP3 Preamplifier per sostituire il precedente FOSI P4 Mini Preamplifier in quanto ho espanso il mio impianto e avevo necessità di una uscita per il subwoofer attivo (FOSI SW10), che il piccolo P4 non aveva. Posso dire che la qualità generale del prodotto è ottima e in linea con gli standard a cui FOSI ci ha abituato. Per quanto riguarda la versatilità e funzionalità del prodotto ovviamente è quasi perfetto per le mie esigenze. Avrei preferito ci fosse anche un ingresso ottico, magari in alternativa all’ingresso bilanciato o comunque da selezionare con un commutatore sul retro. Per il resto la qualità del suono a mio avviso è molto simile al precedente P4 e, in considerazione del prezzo pagato mi reputo soddisfatto delle prestazioni fornite.

Secret Talent of the ZP3

What not many are talking about is how exceptional this preamp is at converting balanced to unbalanced and vice versa . I originally bought this for my main hifi but it added unvetted cables to my perfect synergy chain and ended up removing the ZP3. I almost sent it back when I tried it on my desktop system where I was using the streamer's DAC to feed desktop speakers. I used the ZP3 to pull balanced line out of my R2R headphone DAC to my speakers' single ended inputs. Subtle improvement, but that slight change was enough to make the sound more convincing and allowed my speakers to disappear so I can just hear the music like in my main system and headphones.

Magnífico pre-amplificador.

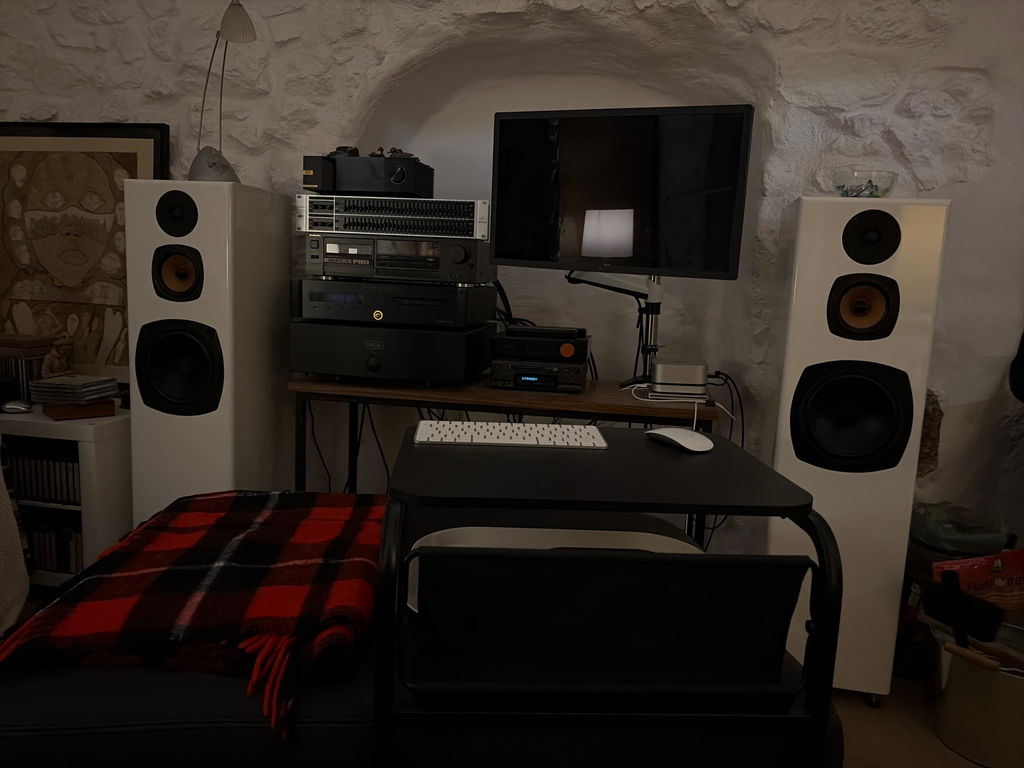

En combinación con una etapa Hegel H20 y unas cajas artesanas basadas en Davis Acustics y, como fuente Eversolo DMP A6 Máster Edición (Streamer, mini disc SONY, CD EMOTIVA) todo cableado balanceado. Resulta un conjunto medio alto, con una claridad, definición y profundidad que hace las delicias de cualquier audiophil.

Excellent addition to my Fosi setup.

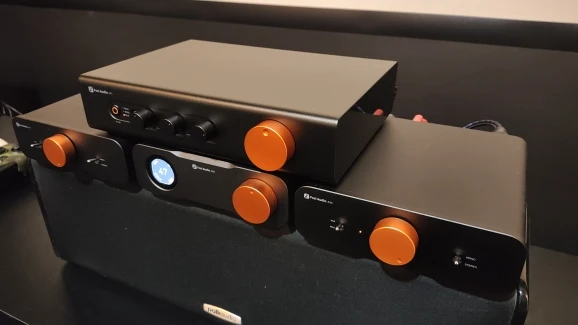

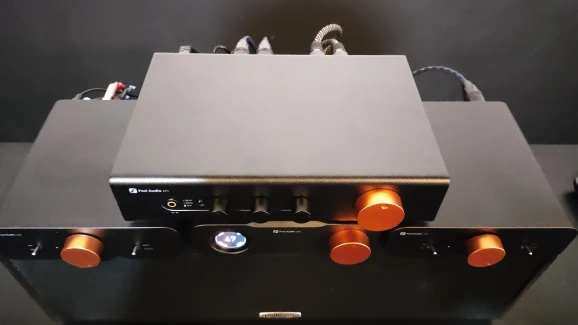

Running a set of ZA3’s with a ZD3 and a P5 phono pre. The ZP3 is quiet, dynamic, and noticed a wider soundstage when introducing. Very happy with the product, thank you.

Good

I tested this out from a friend and I was suprised by the connectivity and quality, would recommend to anyone wishing to get into Hifi

Looks great works greater

I bought this ZP3 preamp recently and i was pleasantly surprised by the quality it has. The quality and versatility is great and I recommend it to others

Fantastic sound

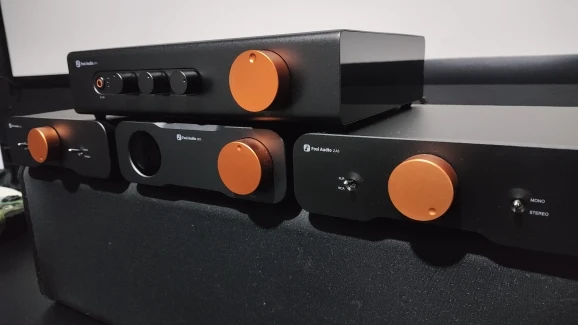

I have a ZP3, two ZA3s in mono mode and a ZD3 Dac.
Fosi devices are fantastic. The sound they provide is excellent. I am very happy. Thanks Fosi.

ZP3

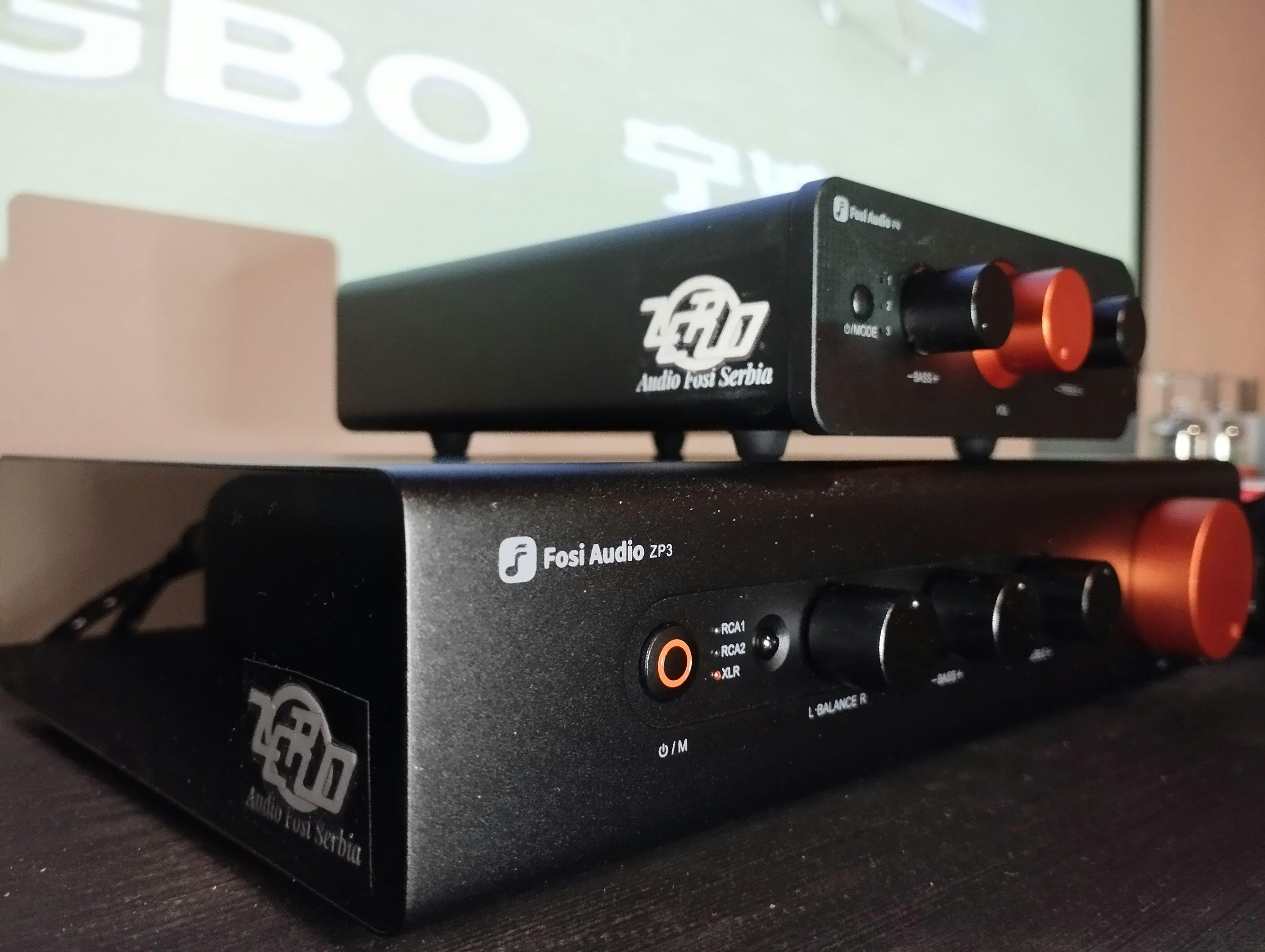

Odlicno, verovatno najbolje do sad pretpojacalo od Fosi.
Potpuno balansirani, izvanrednog zvuka, idealno za seriju Z: ZD3, ZH3, ZA3
Iskrena preporuka

Impresionante producto, muy contento

Realmente sorprendido con la calidad de este producto, cumple con todo, se nota la calidad de los acabado

ES mi primer equipo separado. Lo tengo acoplado a dos amplificadores V3 mono y un DAC ZD3. Me gusta el rendimiento, lo tengo conectados por XLR. Lo único que podría pedirse es algún indicador lumínico de volumen. El control puede controlar otros equipos de la marca.

very. construction and audio quality

Another success from Fosi. It operates very cleanly and meets the necessary performance when you move several DACs or sources with multiple amplifiers and speakers. Good amplifier

They have faced a problem due to duplicate shipping and have behaved super well. At the moment, we don't know what the error was.

Fast delivery, satisfied. I am using the Eversolo DM6 product and have not yet connected the additional preamplifier due to lack of experience. Therefore, it is difficult to comment on its performance, but based on user reviews, it seems satisfactory.

Very good, I like the performance too. It's convenient because it has both trigger and output.

Excelente presentación

Vamos a probar todo el conjunto.

comfortable

- the preamplifier is "transparent" - with factory settings
- I don't use subwoofer - I left the high-pass filter open
- I connected two ZA3 amplifiers to the preamplifier using XLR - this is a very good set
- I use the eversolo DMP A-6 gen 2 as a source
- thanks to ZDA3 I could turn off the preamplifier in eversolo
- which gave a surprising effect
- now the sound is very juicy, powerful and direct
- and the operation of the set has become simpler and very traditional, simple and old-fashioned
- Since the ZDA3 has a high-pass filter, I am considering buying a subwoofer for my system
- this is the next stage

en perido de ensayo

por el momento muy contento, estoy con el rodaje lo he emparejado con un ampli en estéreo ZA3. Redescubriendo los matices de mis CDs y lo malo es que descubres lo mal grabados que estan algunos de tus CDs en la colecion jajajajaj. proximamente lo conectare en alto y en bajo a un subwoofer. ya contare mi experiecia.

The ZP3 was an excellent upgrade for my setup. It was between the ZD3 and two ZA3s. The sound gained more strength and clarity in details. Controlling the bass and treble completes the system.

Works perfectly, my active speakers weren’t capable of driving a sub when connected to my fosi x5 preamp. Now i have the x5 feeding into the zp3 which drives my active bookshelf’s and sub perfectly and i am getting great bass response from all my vinyl. The inbuilt low pass, pass through or bass treble control and the ability to have multiple inputs and outputs plus a dedicated sub output make this little preamp very useful, it look pretty damn nice too!
